Description
Overview:

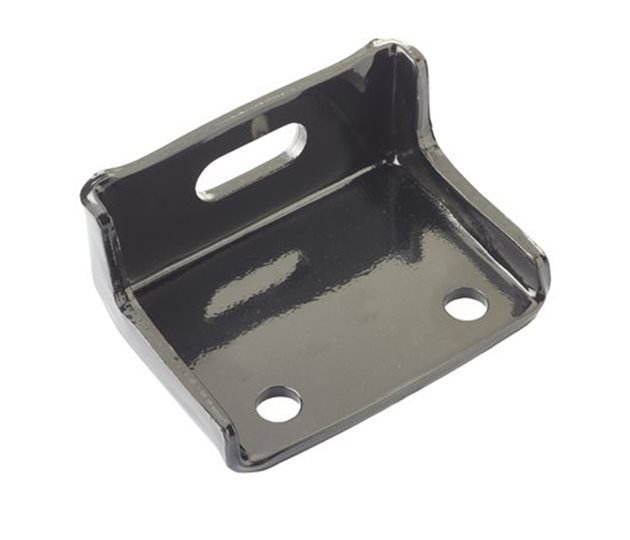

This lower front body mounting bracket for DAF LF Euro 4, 5 and 6 trucks (MPN 800 1329) is a pressed mild steel component with a durable black powder coated finish. It provides a solid connection between the vehicle chassis and the body at the forward lower mounting position, helping to locate and support the body or sub‐frame. The bracket is formed from 6 mm (0.24 in) plate for strength and durability. Overall dimensions are 119.5 mm (4.70 in) in length, 89 mm (3.50 in) in width and 55.5 mm (2.19 in) in height. Fixing points comprise two round holes at 13.5 mm (0.53 in) diameter and an elongated slot measuring 41 x 17 mm (1.61 x 0.67 in) to aid alignment during installation. It is designed to be paired with the corresponding upper bracket, using 16 mm (0.63 in, approx. 5/8 in) high‐tensile bolts to link the assemblies securely. Suitable for commercial vehicle body mounting tasks across the DAF LF range to Euro IV, V and VI standards.
Key Features:
- Pressed mild steel construction for strength and durability
- Black powder coated finish for corrosion protection
- Lower front fitment for DAF LF Euro 4, 5 and 6 chassis
- Overall size: 119.5 x 89 x 55.5 mm (4.70 x 3.50 x 2.19 in)
- Plate thickness: 6 mm (0.24 in)
- Two fixing holes: Ø13.5 mm (0.53 in)
- Slotted fixing: 41 x 17 mm (1.61 x 0.67 in) for installation adjustment
- Designed to be connected with Ø16 mm (0.63 in, approx. 5/8 in) high‐tensile bolts between upper and lower brackets
- Suitable for commercial vehicle body mounting systems on trucks and trailers
- Type: Bracket; Range: DAF; Category: Body Mounting Brackets
Typical Applications:
Used at the front lower body mounting position on DAF LF Euro 4-6 commercial trucks to secure the body or sub‐frame to the chassis. Also applicable to commercial vehicle body systems and compatible trailer body installations where this style of mounting bracket is specified.
Also known as:
Lower Front Body Bracket, Chassis-to-Body Mount Bracket, Body Mount Bracket, Pressed Steel Mounting Bracket, DAF LF Lower Mount
Product Specifications
| L&S Part No. | 800 1329 |
|---|---|
| Unit of Sale | 1 |
