Description
Overview:

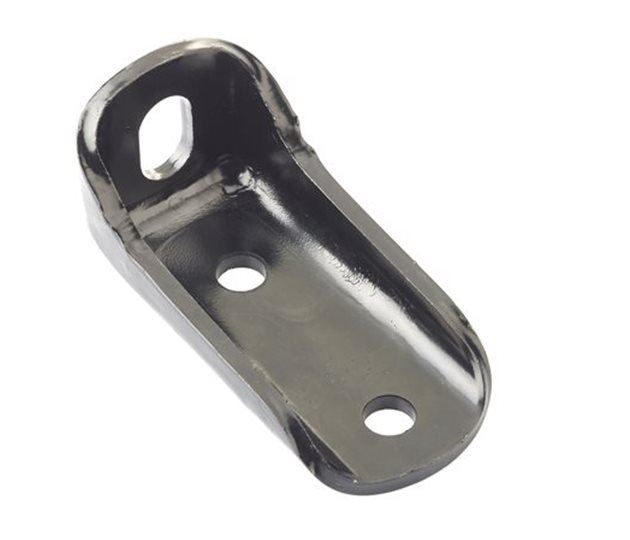

This upper body mounting bracket for DAF LF Euro 4-6 models (MPN 800 1324) is a pressed mild steel fitment with a durable black powder coated finish. It serves as the upper component in a body-to-chassis mounting arrangement on vehicles built with 125 mm (4.92 in) chassis runners, providing a secure interface between the body structure and the frame. The bracket is designed to work with a corresponding lower bracket, with Ø16 mm (0.63 in) high‐tensile bolts specified for joining the upper and lower parts. The pressed construction ensures consistent geometry and fit, while the protective coating offers resistance to corrosion and wear in service. Overall size is 124 mm (4.88 in) long by 62 mm (2.44 in) wide and 58 mm (2.28 in) high, formed from 6 mm (0.24 in) plate. Fixing details include two round holes and a slotted aperture to aid alignment during installation on commercial vehicles.
Key Features:
- Upper body mounting bracket for DAF LF Euro 4-6 chassis with 125 mm (4.92 in) runners
- Pressed mild steel construction for strength and consistent fit
- Black powder coated finish for corrosion protection
- Overall size: 124 mm (4.88 in) length x 62 mm (2.44 in) width x 58 mm (2.28 in) height
- Plate thickness: 6 mm (0.24 in)
- Two fixing holes: 2 x Ø13.5 mm (0.53 in)
- Alignment slot: 17 x 28.5 mm (0.67 x 1.12 in)
- Uses Ø16 mm (0.63 in) high‐tensile bolts to join upper and lower brackets
- Suitable for commercial vehicle use on trucks and trailers
- Black colour to match typical OE body mounting hardware
Typical Applications:
Used on DAF LF Euro 4-6 trucks where the body is mounted to the chassis via an upper and lower bracket system on 125 mm runners. Suitable for commercial vehicle body mounting on trucks and trailers, providing secure attachment and aiding load distribution between the body structure and the chassis frame.
Also known as:
Upper body mount bracket, body-to-chassis mounting bracket, DAF LF upper body bracket, upper fitment body mount, chassis runner bracket 125 mm, pressed steel upper mount
Product Specifications
| L&S Part No. | 800 1324 |
|---|---|
| Unit of Sale | 1 |
