Description
Overview:

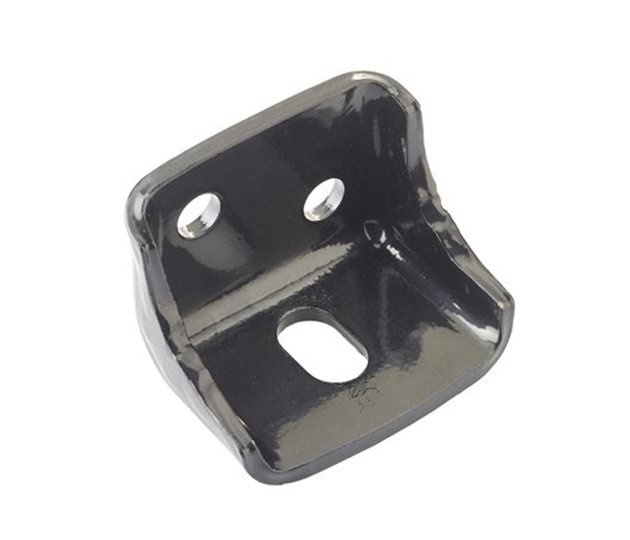

The DAF LF Euro 4-6 Upper Front Body Mounting Bracket (MPN 800 1323) is a pressed mild steel bracket used at the initial upper front body mount position on the chassis. It is designed for DAF LF range vehicles to support and secure the body to the chassis, providing a stable mounting interface. Finished in black powder coat for durable protection, this component suits chassis fitted with 100 mm (3.94 in) and 125 mm (4.92 in) body runners. The bracket features two round fixing holes and a slotted hole to aid alignment during installation. Connection between the upper and lower brackets is made with 16 mm high‐tensile bolts (Ø0.63 in, bolts not included). With compact overall dimensions of 86.7 mm length (3.41 in), 65 mm width (2.56 in) and 65 mm height (2.56 in), and a 6 mm plate thickness (0.24 in), it provides a robust, serviceable solution for fleet maintenance, body repair and new body builds on commercial vehicles.
Key Features:
- Pressed mild steel construction for strength and durability
- Black powder-coated finish for corrosion protection
- Suits DAF LF range, Euro 4, Euro 5 and Euro 6
- For chassis with 100 mm (3.94 in) and 125 mm (4.92 in) body runners
- Overall length 86.7 mm (3.41 in), width 65 mm (2.56 in), height 65 mm (2.56 in)
- Plate thickness 6 mm (0.24 in)
- Two fixing holes Ø13.5 mm (0.53 in) for secure attachment
- One slot 17 x 29 mm (0.67 x 1.14 in) for adjustment and alignment
- Uses Ø16 mm high-tensile bolts (0.63 in) to connect upper and lower brackets
- Suitable for truck and trailer body mounting applications
Typical Applications:
Upper front body-to-chassis mounting on DAF LF rigid trucks across Euro 4, 5 and 6 variants. Used by body builders and fleet workshops on commercial vehicles and trailers where an LF-compatible upper front body mounting bracket is required.
Also known as:
Upper Front Body Bracket; Body Mount Bracket; Body-to-Chassis Mount; Pressed Steel Body Bracket
Product Specifications
| L&S Part No. | 800 1323 |
|---|---|
| Unit of Sale | 1 |
