Description
Overview:

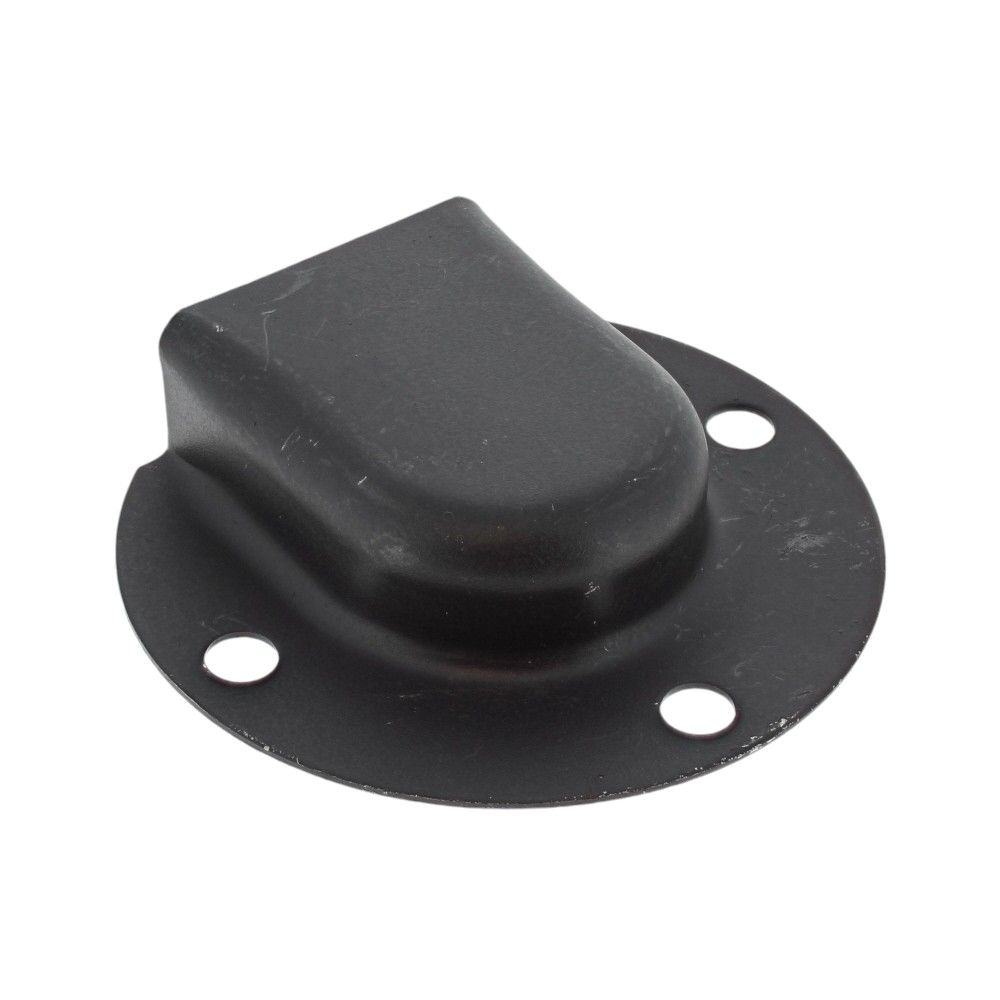

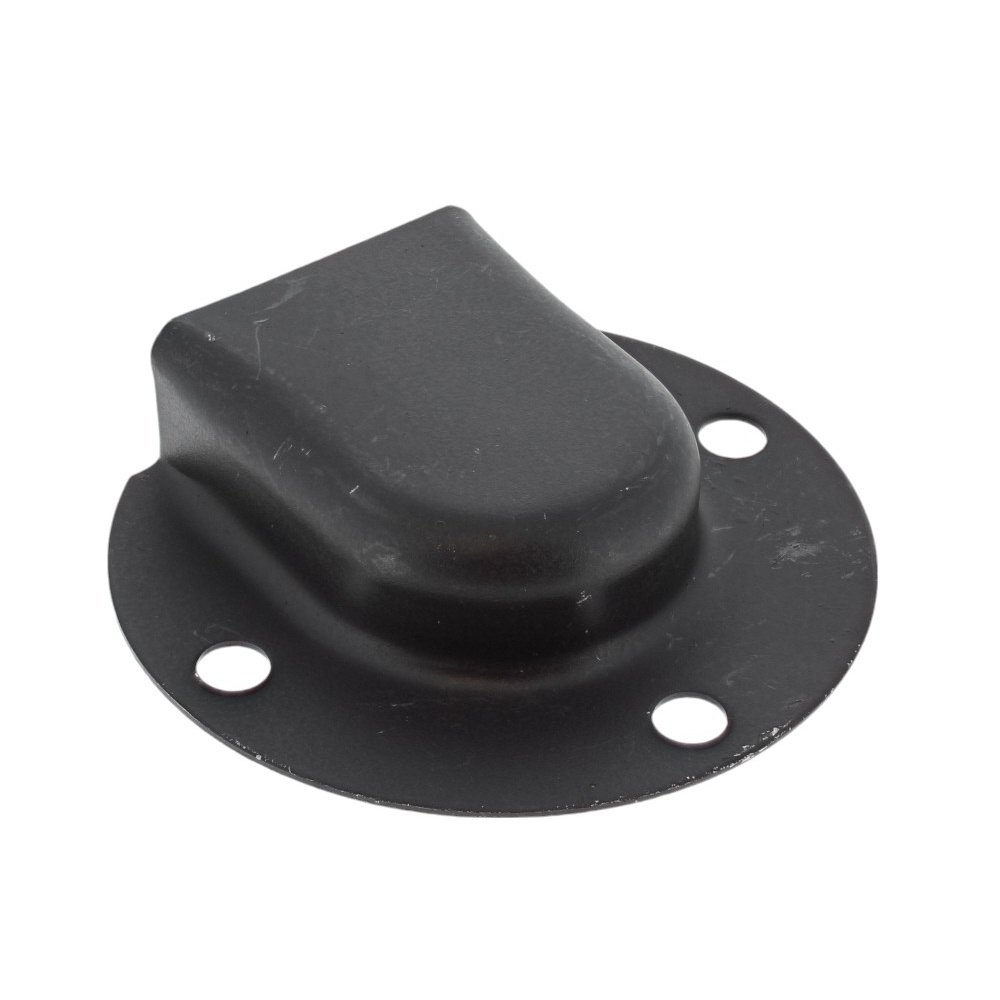

The Exhaust Deflector for Kohler CH-series engines is a Genuine Kohler part designed to route hot exhaust gases away from sensitive engine components and bodywork. Supplied under OEM No. 12 265 02-S, it provides a reliable, tidy exit path for the exhaust stream to help reduce heat soak and improve operator comfort. Built from durable metal with a heat-resistant finish, it is suitable for construction and garden machinery powered by Kohler engines such as the CH11 and CH12.5. The deflector is a direct replacement for worn or missing outlets, helping maintain safe operation, consistent engine performance, and proper airflow around shrouds and covers.
Key Features:
- Genuine Kohler part (OEM 12 265 02-S) for dependable fit and function
- Durable, heat-resistant metal construction for long service life
- Direct replacement for the original deflector to restore correct exhaust routing
- Helps protect plastics, wiring, and fuel lines by diverting hot gases away
- Aids safe operation by directing the exhaust plume away from the operator and machine
- Compact, robust form factor suited to tough site and garden conditions
- Straightforward installation using standard hand tools
- Compatible with a wide range of Kohler CH and CV engines used across many machines
Typical Applications:
Commonly used on ride‐on mowers, lawn tractors, chippers, stump grinders, compactors, generators, and other equipment fitted with Kohler CH and CV engines. Ideal where controlled exhaust direction improves safety, reduces heat on nearby parts, and keeps fumes clear of panels and operators during regular use and servicing.
Also known as:
Exhaust redirector, exhaust diverter, muffler deflector, tailpipe deflector, outlet deflector, exhaust elbow, exhaust outlet guide.
Fits Models:
2561 CPD, 2561CPD, 68553 Chesapeake, 68633 CPD, 68659 Chesapeake, 68660, 68661 Vermeer, 76571 TOMINAGA, 76576 CHAMPION, 76603 TOMINAGA, 76617 TOMINAGA, CH11, CH12.5, CH125, CH13, CH14, CH15, CH410, CH620, CH640, CH670, CH680, CH730, CH732, CV12.5, CV125, CV13, CV14, CV15, CV430
Alternate Part Numbers:
12 265 02S, 1226502-S, 1226502S
Product Specifications
| L&S Part No. | 12 265 02-S |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Kohler |
| Unit of Sale | 1 |
| Applications | 2561 CPD, 2561CPD, 68553 Chesapeake, 68633 CPD, 68659 Chesapeake, 68660, 68661 Vermeer, 76571 TOMINAGA, 76576 CHAMPION, 76603 TOMINAGA, 76617 TOMINAGA, CH11, CH12.5, CH125, CH13, CH14, CH15, CH410, CH620, CH640, CH670, CH680, CH730, CH732, CV12.5, CV125, CV13, CV14, CV15, CV430 |
| Machine Type | Engines |
| Fits Brands | Kohler |
| Fits Models | CH11 | CH12.5 | CH13 | CH14 | CH15 | CH410 | CV12.5 | CV13 | CV14 | CV15 | CV430 | CH620 | CH640 | CH670 | CH680 | CH730 | CH732 |
