Description
Overview:

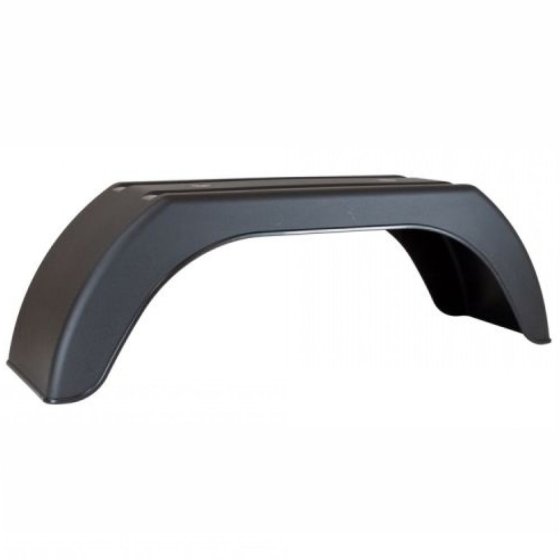

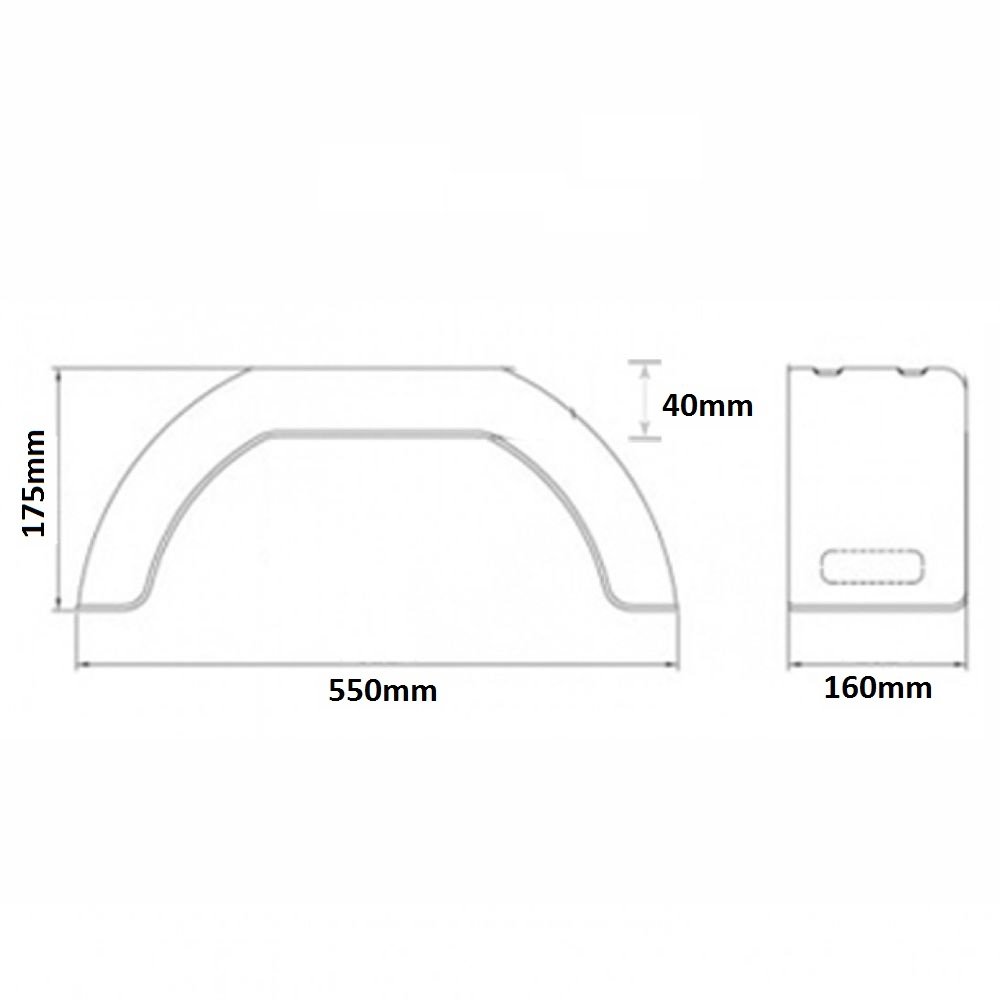

This Single Plastic Trailer Mudguard 550 x 160 x 175 mm for 8-inch wheels (MPN 761 510) is a durable wheel arch for small trailers and towing set-ups using 8" (203 mm) tyres. It is injection-moulded from black polyethylene, providing a tough, rust-free guard to help control spray and debris from the tyre and protect the trailer bodywork. The guard is designed as a single wheel arch for one wheel position and can be mounted to suitable trailer brackets or chassis structures as required by the installation. Key drawing dimensions are L = 550 mm (21.65 in), D = 160 mm (6.30 in), H = 175 mm (6.89 in) and V = 40 mm (1.57 in). Manufactured in Europe, this mudguard offers a consistent moulded finish and a practical specification for fleet maintenance, trailer builds and replacements. Always check the dimensions and clearance against your trailer and tyre before ordering.
Key Features:
- Single plastic mudguard for one wheel position
- Injection-moulded black polyethylene construction
- Suits 8" (203 mm) trailer wheels
- Dimensions: L = 550 mm (21.65 in), D = 160 mm (6.30 in), H = 175 mm (6.89 in), V = 40 mm (1.57 in)
- Corrosion-proof, non-metallic material for wet and road-salt environments
- Lightweight for ease of handling and installation
- Moulded finish for consistent shape and coverage
- Manufactured in Europe
- Colour: Black
Typical Applications:
Used above the tyre on small and light-duty trailers running 8-inch wheels, including utility, camping, boat and general-purpose trailers, as well as site and plant support trailers. Suitable for new builds, refurbishments and like-for-like replacements where the given dimensions match existing brackets and clearances.
Also known as:
- Maypole part number MP2705
- 8" Plastic Trailer Mudguard
- Single Plastic Wheel Arch
- Deluxe Plastic Mudguard
Product Specifications
| L&S Part No. | 761 510 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - Single plastic mudguard for 8" trailer wheels - Injection-moulded black polyethylene construction - Dimensions: 550 x 160 x 175 mm - Corrosion-proof, non-metallic material - Lightweight for easy installation |
