Description
Overview:

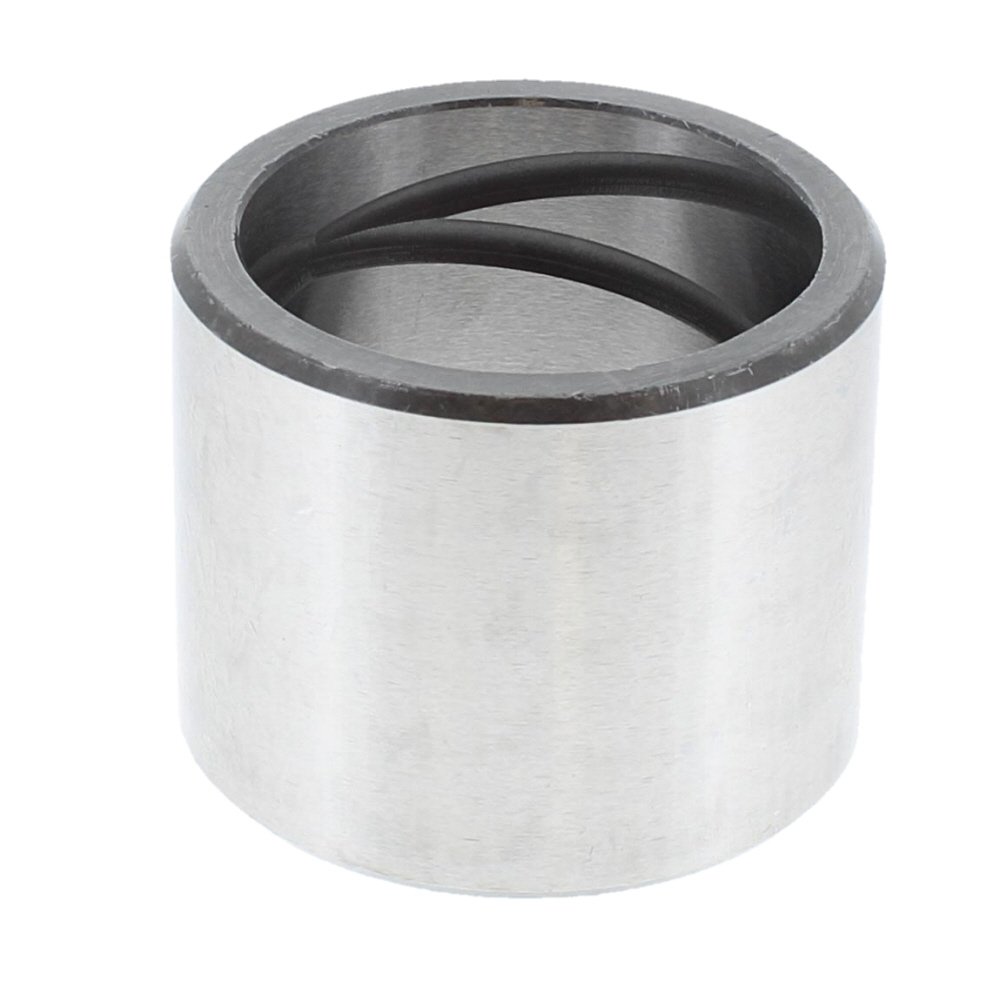

This dipper end bush is a non-genuine, high-quality replacement for the pivot joint at Position 5 on mini excavators, made to match the fit and function of the original. Manufactured from robust, precision-machined steel, it supports the dipper arm at the pin, helping maintain smooth movement and accurate alignment under load. It is suitable for popular compact machines such as the Kubota KX61 and Takeuchi TB230, making it a practical choice for routine pin-and-bush maintenance or full joint overhauls. Used where the dipper connects to the linkage, it helps reduce play, vibration, and uneven wear, extending the service life of pins and bores. Manufacturer reference: MPN 202 262. Designed for press-fit installation by competent users with appropriate tools.
Key Features:
- Non-genuine replacement offering a cost-effective solution for worn pivot bushes
- Designed for Position 5 at the dipper end for correct fitment and alignment
- Precision-machined steel construction for strength and wear resistance
- Helps restore smooth, controlled dipper arm movement and reduces play
- Protects mating pins and housings by spreading load and minimising fretting
- Compatible dimensions for interchange with the original component
- Suitable for demanding daily use on site or in hire fleets
- Works with standard joint greasing practices to support long service life
- Straightforward press-fit installation with appropriate workshop tools
Typical Applications:
Used when refurbishing the dipper-to-linkage joint on compact excavators, replacing worn bushes during pin changes, or eliminating excess play that leads to inaccurate digging and accelerated wear. Suitable for routine maintenance, pre-hire inspections, and scheduled rebuilds to keep machines operating smoothly in construction, landscaping, utilities, and groundwork tasks.
Also known as:
Pivot bush sleeve, pin bush, arm end bush, hinge sleeve, bearing sleeve, dipper pivot liner, linkage bush sleeve, end-of-arm pivot sleeve.
Fits Models:
KX61, TB230
Alternate Part Numbers:
202262
Product Specifications
| L&S Part No. | 202 262 |
|---|---|
| Unit of Sale | 1 |
| Applications | KX61, TB230 |
| Machine Type | Excavators |
| Fits Models | TB230 |
