Description
Overview:

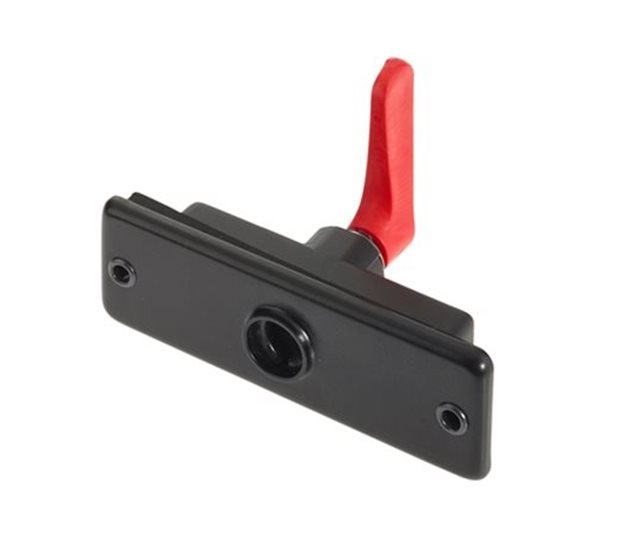

This recessed door retainer (MPN 800 1040) is designed for flush fitting in vehicle and equipment doors where a clean, low-profile hold-open solution is required. It features a pressed steel face with a black powder coated finish for a smart, durable appearance, and an acetal body to provide smooth engagement with the striker. The unit is supplied complete with an internal release, allowing the door to be disengaged from inside, plus a gasket to seal the mounting and a zinc plated striker pin assembly. Overall dimensions are 124 mm (4.88 in) long, 42 mm (1.65 in) wide, and 27.5 mm (1.08 in) deep. Suitable for heavy-use environments across commercial vehicles and site equipment, it provides positive door retention without protruding hardware.
Key Features:
- Recessed, flush-mount door retainer with internal release
- Pressed steel faceplate with acetal body
- Black powder coated finish on faceplate
- Supplied with zinc plated striker pin assembly
- Includes gasket for panel sealing
- Overall length: 124 mm (4.88 in)
- Overall width: 42 mm (1.65 in)
- Overall depth: 27.5 mm (1.08 in)
- Colour: black
- Suitable for use on cabs, trucks, cabinets and modular buildings
Typical Applications:
Used to hold doors open on truck cabs and body side doors, service cabinets and lockers on plant and trailers, and access doors on modular site buildings. The recessed design is well suited where a flush fit is preferred to avoid snagging and to keep hardware protected within the panel envelope.
Also known as:
Recessed door holder, flush door retainer, inside release door catch, door stay with striker pin, cabinet door retainer
Product Specifications
| L&S Part No. | 800 1040 |
|---|---|
| Unit of Sale | 1 |
