Description
Overview:

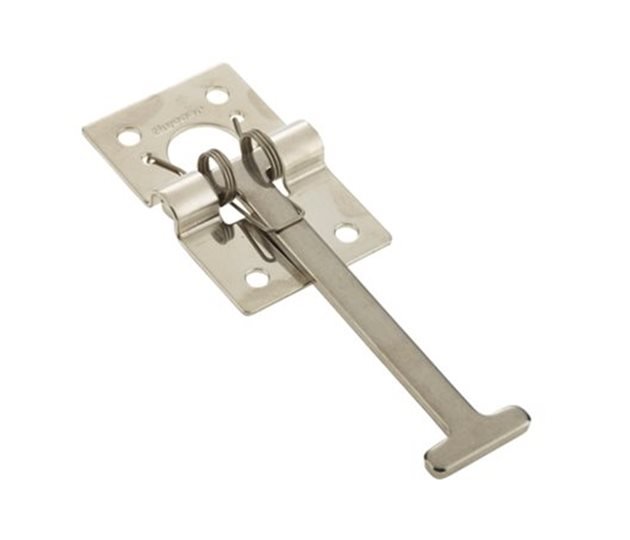

This T‐bar door retainer (MPN 800 1412) is a pressed 304 stainless steel, spring‐loaded hold‐open device for swing doors on commercial bodies and site units. The stainless construction provides robust corrosion resistance for fleet use in transport, plant and construction environments. Supplied in self colour (plain stainless), it is intended to be mounted to the door and body so the T‐bar engages with a matching catch and back plate to hold the door securely in the open position during loading, unloading or service tasks. The bar retainer measures 123 mm (4.84 in) in length with a 40 mm (1.57 in) base width, and features 5 mm (0.20 in) fixing holes to suit common hardware. It is commonly paired with the corresponding AJ catch plate 9810/3370 and back plate 9810/3390 to form a complete door hold‐back assembly for trucks, trailers, containers and modular buildings.
Key Features:
- Pressed 304 stainless steel construction for durability and corrosion resistance
- Self colour (plain stainless) finish
- Spring‐loaded T‐bar to hold doors securely in the open position
- Overall length: 123 mm (4.84 in)
- Base width: 40 mm (1.57 in)
- Fixing holes: 5 mm diameter (0.20 in)
- Works with AJ catch plate 9810/3370 and back plate 9810/3390
- Suitable for use on trucks, trailers, containers and modular/site buildings
Typical Applications:
Used to retain rear or side swing doors on truck and trailer bodies, hold open doors on containers, and secure access doors on modular buildings and site cabins during loading, unloading and maintenance.
Also known as:
T‐Bar Retainer; Door Hold‐Back; Door Stay; Spring Bar Retainer; Door Retainer Hook
Product Specifications
| L&S Part No. | 800 1412 |
|---|---|
| Unit of Sale | 1 |
