Description
Overview:

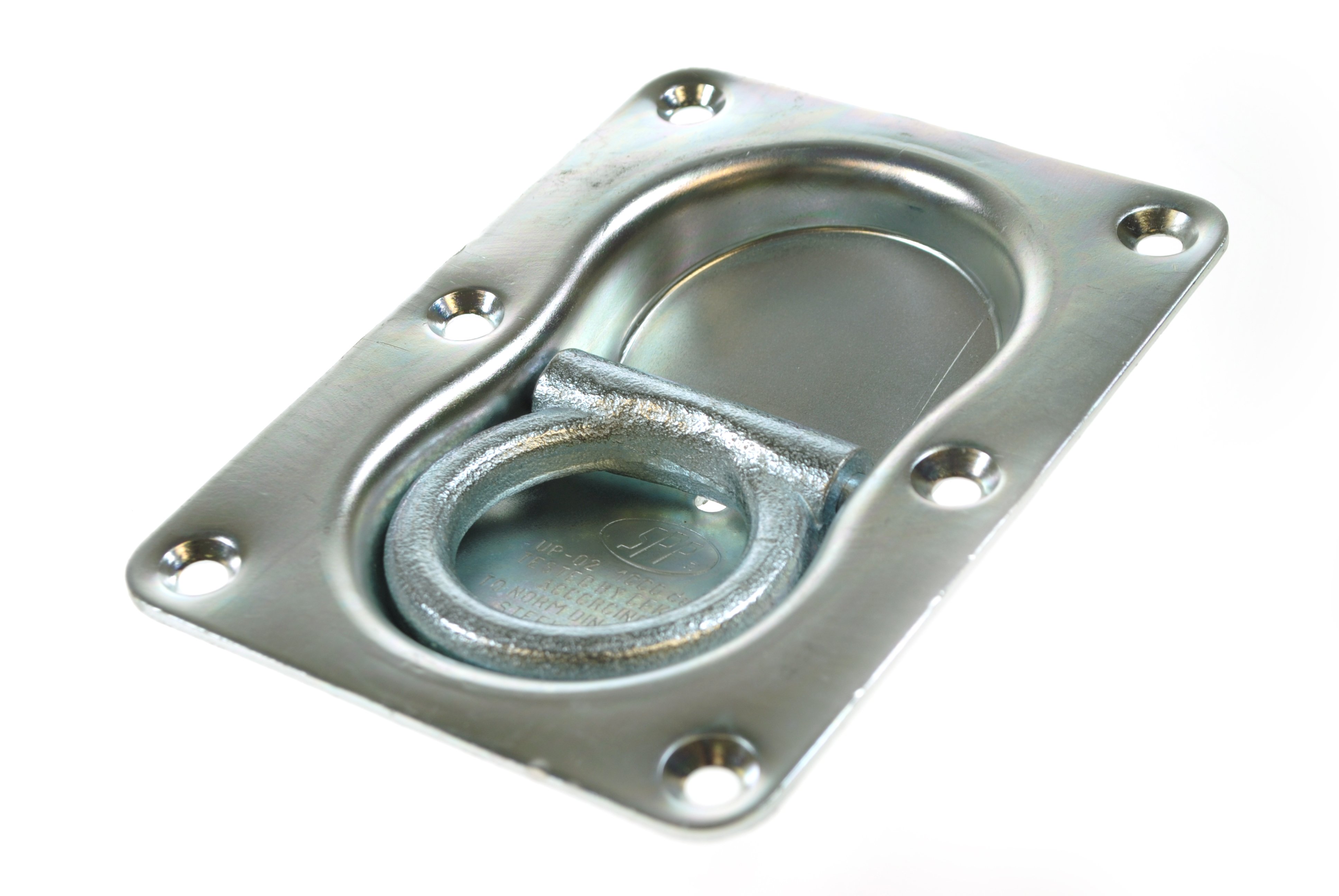

This Double Recessed Lashing Ring (MPN 763 339) is a heavy‐duty, flush‐mount tie‐down point for trailers, plant carriers, vans and light commercial vehicles. Manufactured in steel with a zinc plated finish for corrosion resistance, it sits below deck level when not in use to reduce snagging and trip hazards. The ring provides a secure anchoring point for webbing straps, hooks or chains when restraining plant, pallets, machinery and general cargo. It is designed to be recess‐mounted into timber or steel floors; a suitable cut‐out is required so the housing drops flush with the deck. The unit is rated to a 1000 kg load capacity (1.0 tonne), subject to installation quality and substrate strength. Drawing dimensions are provided to assist with cut‐out and bolt pattern layout for new builds and replacements.
Key Features:
- Double recessed, flush‐mount lashing ring for floor installation
- Steel construction with zinc plated finish for corrosion resistance
- 1000 kg load capacity (approx. 1.0 tonne)
- Drawing dimensions: A = 146 mm (5.75 in), B = 106 mm (4.17 in), C = 62 mm (2.44 in), D = 84 mm (3.31 in), E = 41 mm (1.61 in)
- Six fixing holes Ø6 mm (0.24 in) for bolting to deck structure
- Suitable for timber or steel floors and platform bodies
- Low‐profile ring reduces snagging and trip risk when not in use
Typical Applications:
Used as a floor‐mounted tie‐down point on general‐purpose trailers, plant and machinery transporters, dropside and flatbed bodies, box vans, pickups and utility vehicles. Commonly installed in plywood or chequer plate decks to secure equipment, pallets and site materials with webbing straps or chain assemblies. Suitable for new installations or as a like‐for‐like replacement where a double recessed pattern and similar cut‐out are required.
Also known as:
Recessed Floor Lashing Ring
Recessed D‐Ring
Tie‐Down Ring
Load Restraint Ring
Maypole part number MP81408B
Product Specifications
| L&S Part No. | 763 339 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
