Description
Overview:

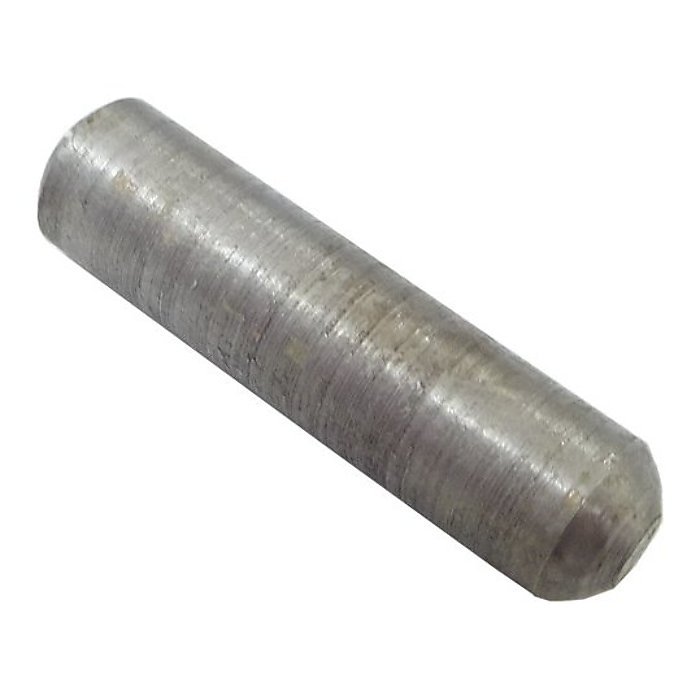

This dowel pin is a precision cylindrical metal fastener used to align and secure mating parts in heavy-duty pneumatic claydiggers. Built from robust steel with a smooth finish, it helps maintain accurate component location under vibration and impact loads. It is a non-genuine replacement for Chicago Pneumatic OEM part F012670 and is suitable for common models such as CP9 and FL22. By keeping housings, guides and attachments correctly positioned, the pin supports efficient operation, reduces wear from misalignment and helps prevent looseness developing over time. Its straightforward, drop-in form factor allows quick replacement during routine maintenance or repair, restoring correct geometry without modification to the machine. An effective choice for workshops, site service teams and operators who need dependable alignment hardware for daily use.
Key Features:
- Non-genuine replacement for OEM F012670, offering a practical, cost-effective alternative
- Steel construction for strength and resistance to deformation under repeated blows and vibration
- Precision sizing helps maintain true alignment of mating components for smooth operation
- Smooth, clean finish to aid insertion and reduce burring during fitment
- Suitable for claydigger applications where reliable shear and locating performance is required
- Designed for seamless fit in existing bores on compatible machines
- Supports consistent reassembly after maintenance, helping preserve tolerances and service life
- Simple to fit using standard workshop tools; typical use is press-fit in one part and slip-fit in the other
- Helps minimise downtime by restoring correct location without additional shims or adjustments
- Durable choice for both on-site repairs and planned overhauls
Typical Applications:
Used to align and locate cylinder bodies, valve blocks, gear housings, handle frames and accessory brackets in pneumatic claydiggers. Ideal for reinstating factory alignment after strip-downs, replacing worn or missing pins during servicing, and stabilising assemblies subject to vibration. Suitable for workshop rebuilds, mobile service work and on-site maintenance to maintain efficiency, reduce chatter and keep fasteners from loosening.
Also known as:
Locating pin, alignment pin, dowel, parallel dowel pin, straight pin, location dowel, register pin, drive pin (straight), positioning pin. Commonly used as a reference pin to maintain centre-to-centre distances and prevent rotational shift between parts in impact tools and similar machinery.
Fits Models:
CP9, FL22
Alternate Part Numbers:
FL2202
Product Specifications
| L&S Part No. | FL22/02 |
|---|---|
| OEM No. | F012670 |
| Unit of Sale | 1 |
| Applications | CP9, FL22 |
| Machine Type | Handheld Pneumatic Tools |
| Fits Models | FL22 |
