Description
Overview:

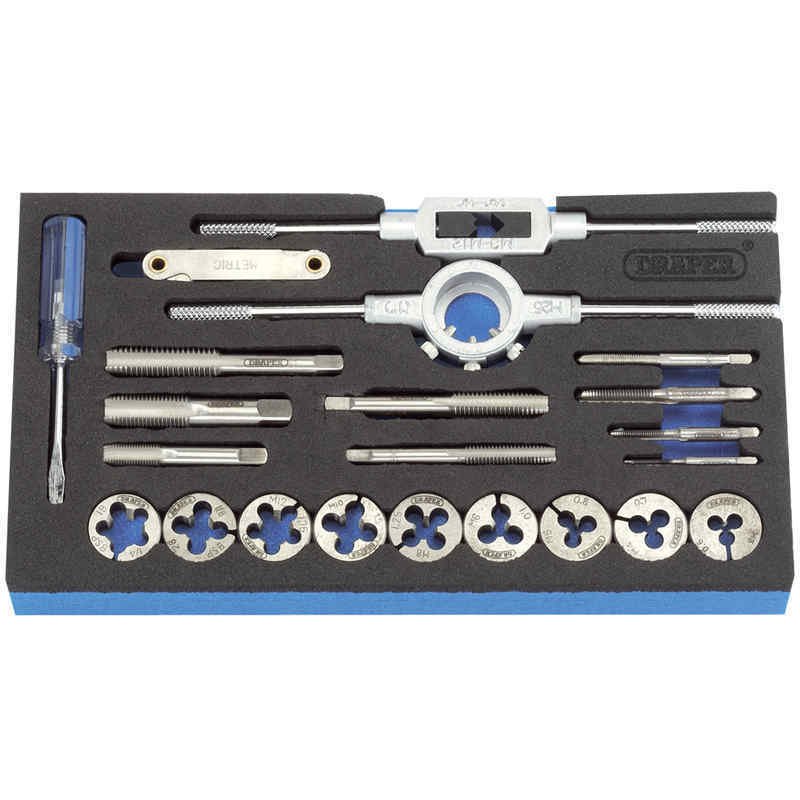

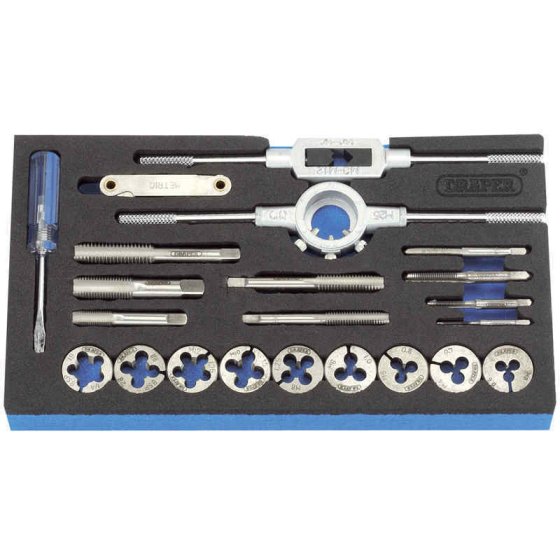

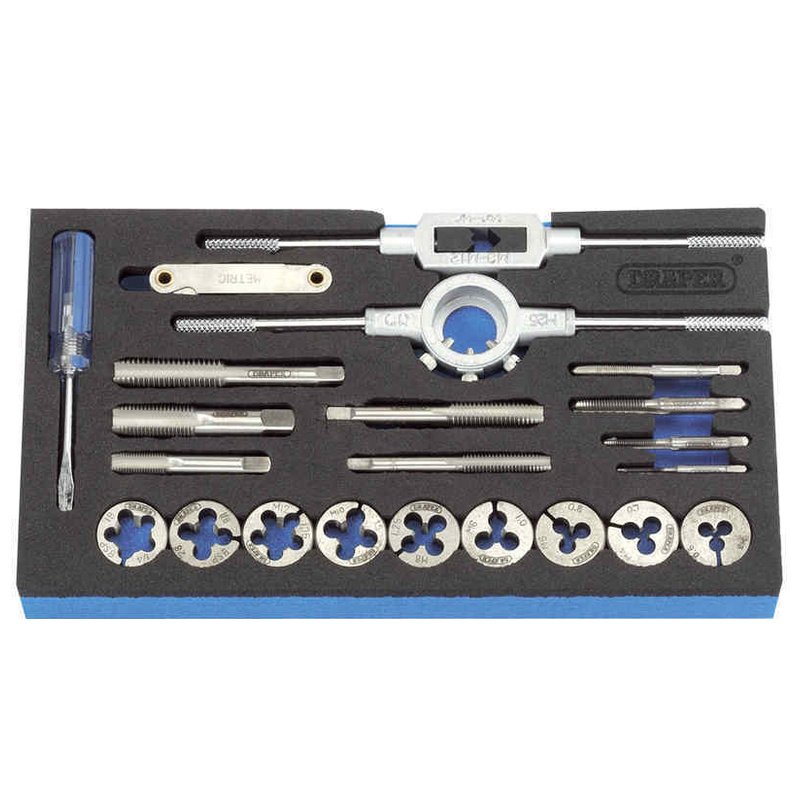

The Draper Expert Tap and Die Set (22 Piece), MPN 63520, is a robust kit for creating and restoring threads in workshop and site settings. Made from durable carbon steel, it is designed for accurate cutting and cleaning of threads on common materials, including mild steel and aluminium. The set covers key metric sizes from M3 to M12 with matching plug taps and dies, plus two BSP sizes for pipework and fittings. It includes an American pattern tap wrench with 1/2" (12.7 mm) capacity and a die holder with a 1" (25.4 mm) O/D guide for consistent alignment. A screwpitch gauge and screwdriver complete the set. Supplied in an EVA foam insert tray, it stores neatly in tool cabinets and suits users working on construction and garden machinery.
Key Features:
- 22-piece set covers essential metric threads: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1.0, M8 x 1.25, M10 x 1.5, M12 x 1.75, with matching plug taps and dies
- Includes BSP dies and taps: 1/8" BSP (approx. 3.2 mm) and 1/4" BSP (approx. 6.35 mm) for pipe and fitting work
- Made from carbon steel for dependable cutting performance and long service life
- American pattern tap wrench with 1/2" (12.7 mm) capacity provides secure grip and control
- Die holder with 1" (25.4 mm) O/D guide helps maintain alignment for cleaner threads
- Screwpitch gauge aids in quick thread identification; screwdriver included for adjustments
- Suitable for cutting new threads on mild steel and chasing or cleaning damaged threads on aluminium
- EVA foam insert tray keeps parts organised and easy to access in tool drawers or site boxes
- Compact, workshop-friendly layout reduces setup time and misplacement of small pieces
Typical Applications:
Cutting and repairing bolt, stud, and pipe threads on machinery assemblies, engine brackets, housings, fixtures, and fittings. Useful in maintenance of construction tools and garden machines, including mowers, compactors, generators, and small plant. Ideal for workshop thread repair, replacing corroded fasteners, or restoring threads after welding, drilling, or general wear.
Also known as:
Thread chaser set, thread cutting kit, thread restorer kit, screw thread repair kit, plug tap and die kit, metric/BSP threading assortment, thread reconditioning set, screw thread tool set, pipe thread kit.
Product Specifications
| L&S Part No. | 200 813 |
|---|---|
| Manufacturer | Draper |
| OEM No. | 63520 |
| Unit of Sale | 1 |
| Machine Type | Handheld Construction Tools |
