Description
Overview:

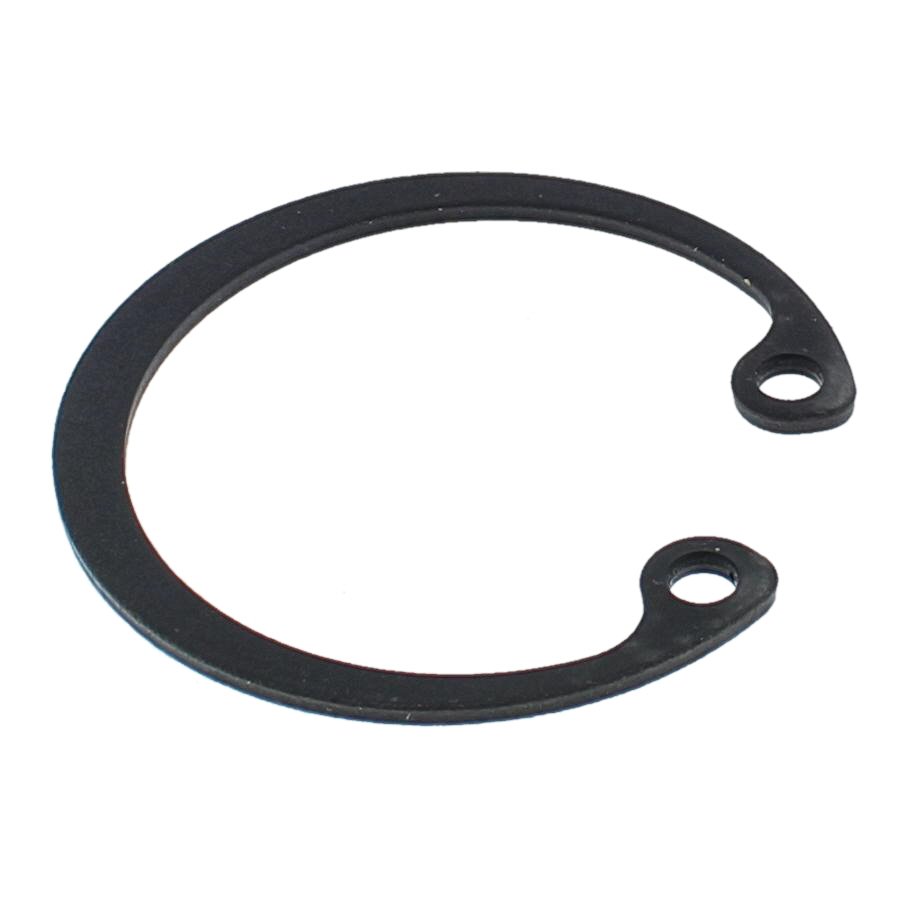

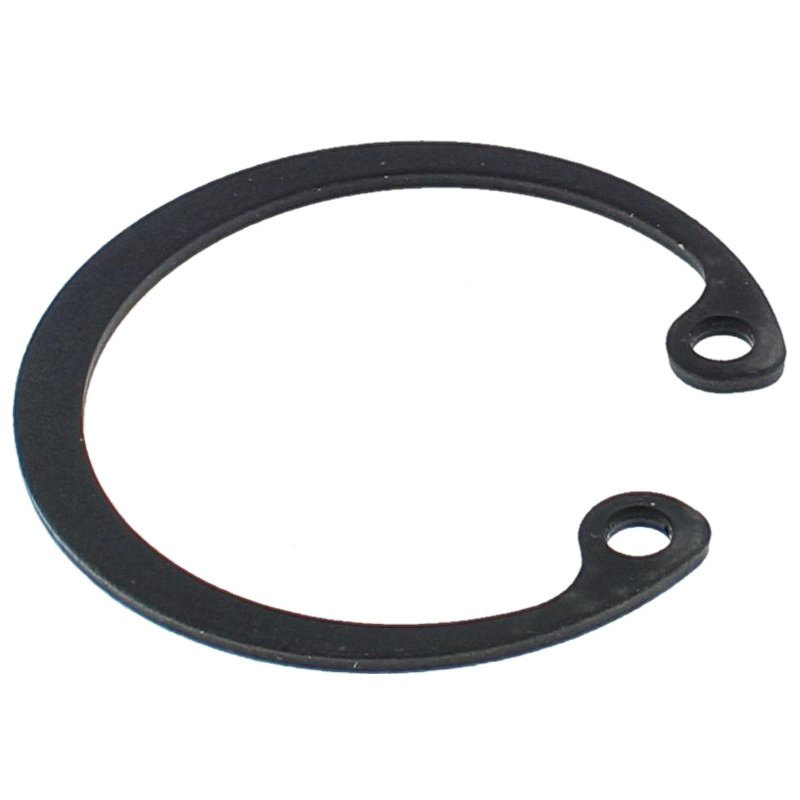

This Drill, Mitre Saw and Trimmer Motor Pack & Crosscut Circlip is a genuine DeWalt OEM component designed to secure rotating or sliding parts within motor packs and crosscut mechanisms. Manufactured from hardened spring steel for high strength and elasticity, it resists fatigue and maintains clamping force under vibration. It is used across select DeWalt drills, mitre saws and laminate trimmers to retain shafts, bearings, gears or spacers in place, preventing axial movement. Engineered for an accurate fit on DeWalt assemblies, it supports smooth running and long service life. Suitable for models including DW152 Type 1 and DW152 Type 2, with wider compatibility across popular saws and trimmers. OEM No. 949729-02 ensures easy identification and the right replacement first time. Genuine DeWalt/Black & Decker group part.
Key Features:
- Genuine DeWalt OEM circlip for assured compatibility and performance (OEM No. 949729-02)
- Hardened spring steel construction for durability and long-term tension retention
- Maintains correct axial location of components in motor and crosscut assemblies, reducing play and vibration
- Precise manufacturing tolerances for a secure seat in the groove and reliable retention under load
- Aids smooth tool operation and helps prevent premature wear of bearings, gears and shafts
- Straightforward to fit and remove using standard circlip pliers, minimising downtime
- Suitable for workshop repairs and on-site maintenance across drills, mitre saws and trimmers
- Helps restore original performance after motor overhauls or crosscut mechanism rebuilds
- Genuine part supports safety and reliability compared with unbranded alternatives
Typical Applications:
Used during motor rebuilds, gearbox servicing, or crosscut mechanism repairs to retain armatures, pinions, bearings or spacers on shafts. Ideal when replacing worn or missing retaining clips on DeWalt drills, mitre saws and laminate trimmers to restore correct alignment, reduce end float and maintain smooth, reliable operation on site or in the workshop.
Also known as:
Retaining ring, snap ring, shaft clip, external circlip, motor pack retaining clip, crosscut retaining ring, shaft retaining circlip.
Fits Models:
DW152, DW153, DW631, DW670K, DW701, DW707, DW707E, DW770, DW771, DW777, DWS771, DWS777, DWS778
Alternate Part Numbers:
949729-02, 94972902
Product Specifications
| L&S Part No. | 949729-02 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | DeWalt/Black and Decker |
| OEM No. | 949729-02 |
| Unit of Sale | 1 |
| Applications | DW152, DW153, DW631, DW670K, DW701, DW707, DW707E, DW770, DW771, DW777, DWS771, DWS777, DWS778 |
| Machine Type | Drills, Mitre Saw, Trimmers |
| Fits Brands | Black & Decker, DeWalt |
| Fits Models | DW153 Type 1 | DW631 Type 1 | DW670K Type 1 | DW701 Type 1 | DW701 Type 2 | DW707 Type 1 | DW707 Type 2 | DW707E Type 1 | DW770 Type 1 | DW770 Type 2 | DW771 Type 1 | DW771 Type 2 | DW777 Type 1 | DW777 Type 2 | DWS771 | DWS771 Type 1 | DWS777 | DWS777 Type 1 | DWS778 | DWS778 Type 1 | DWS778 Type 2 |
