Description
Overview:

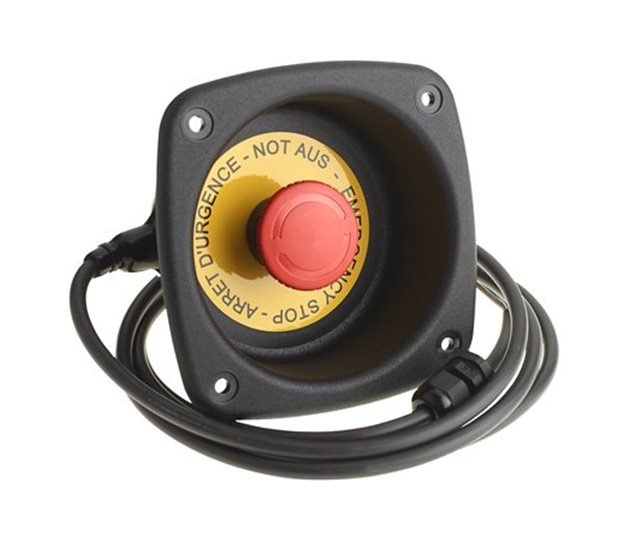

This recessed emergency stop switch assembly (MPN 800 1347) is built around a black glass‐filled nylon mounting dish and comes pre-fitted with a red emergency stop mushroom button and contact block. The assembly includes a 1,700 mm wiring harness for straightforward hook‐up and a plastic PG9 cable gland for cable entry. The square face measures 125 x 125 mm (approx. 4.92 x 4.92 in) with a recess depth of 43.5 mm (approx. 1.71 in), providing a neat, low‐profile fit on panels and enclosures. The button and block are to the XB5/XB7 pattern, widely used across industrial and vehicle systems. Designed for use on commercial vehicles and fixed or mobile plant, it provides a clear, accessible means of rapidly stopping equipment in an emergency on trucks, trailers, gensets, pumps and general machinery.
Key Features:
- Recessed black glass‐filled nylon dish for panel mounting
- Red emergency stop mushroom button with contact block (XB5/XB7 pattern)
- Pre‐wired 1,700 mm harness (1.7 m / approx. 67 in) for quick installation
- Supplied with plastic PG9 cable gland for cable entry
- Face size: 125 x 125 mm (approx. 4.92 x 4.92 in)
- Recess depth: 43.5 mm (approx. 1.71 in)
- Fixing hole size: 10.5 mm (approx. 0.41 in)
- Material: Glass‐filled nylon dish; red button, black bezel/dish
- Brand: driMet
Typical Applications:
Suitable for fitting to commercial trucks and trailers, generator sets, pumps and a wide range of machinery. Commonly installed on control panels or bodywork where a recessed emergency stop is required on plant, mobile equipment and service vehicles.
Also known as:
E‐Stop; Emergency Stop Button; Mushroom Stop Button; Emergency Off (EMO) Switch; Panic Stop; Kill Switch; Recessed Stop Switch
Product Specifications
| L&S Part No. | 800 1347 |
|---|---|
| Unit of Sale | 1 |
