Description
Overview:

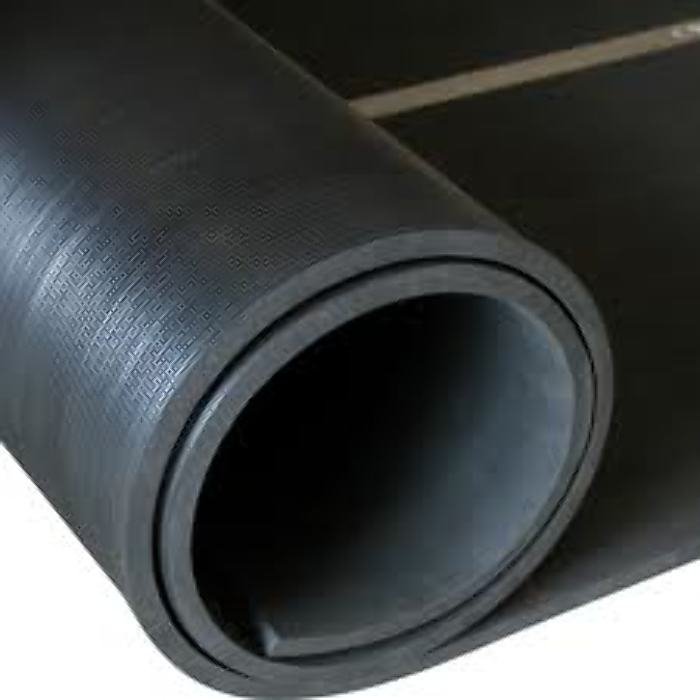

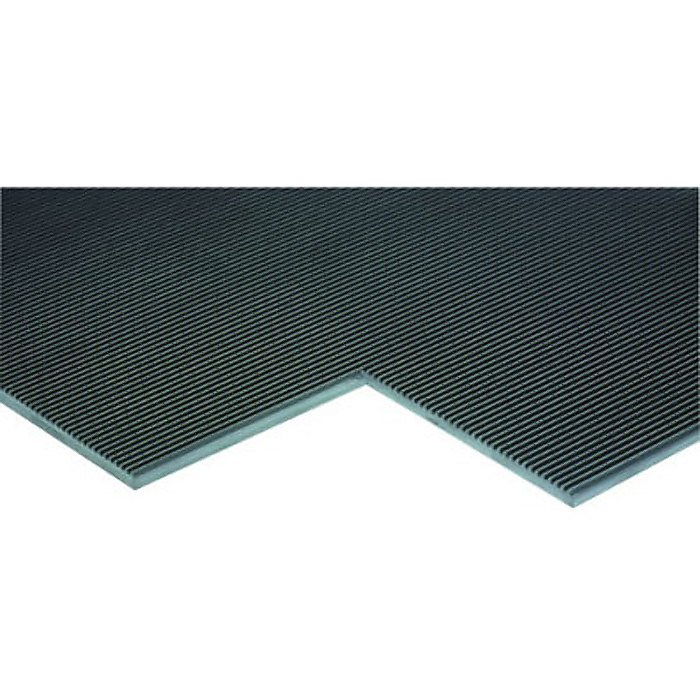

Class 2 Electrical Safety Switchboard Matting is a heavy-duty insulating floor mat designed to protect users from electric shock around live equipment. Supplied 4.5 mm thick and 1 metre wide, it is sold per linear metre to suit the length you need. Made from durable insulating rubber with a fine-ribbed top surface and a cloth impression underside, it provides both electrical insulation and reliable footing. Tested and certified to IEC 61111:2009 Class 2, it supports safe working around switchboards, control panels, and high-voltage machinery. The METROSEAL SM570-02 specification with MPN 866 103 offers full traceability and regulatory markings, making it suitable for professional installations in plant rooms, factories, and facilities maintenance. The black, ribbed finish is low-maintenance and can be trimmed on site for a neat fit.
Key Features:
- Class 2 insulating matting to IEC 61111:2009 for high-voltage protection
- Tested to 30,000 V; maximum recommended working voltage 17,000 V
- Puncture-proof at 20 kV for 3 minutes to verify dielectric integrity
- Dimensions: 4.5 mm thickness, 1 m width; supplied per metre length for easy ordering
- Fine ribbed, anti-slip surface for secure footing in front of live equipment
- Cloth impression reverse helps the mat lie flat and resist movement
- Low-maintenance surface; easy to keep clean in busy switchrooms
- Fully traceable with regulatory branding and markings (MPN 866 103)
- Conforms to REACH, RoHS, PAH, and CE requirements
- Robust black insulating rubber designed for industrial environments
- Can be trimmed to size on site to fit around plinths, cabinets, and access ways
Typical Applications:
Use in front of open switchboards, MCCs, and control panels in electrical switchrooms. Ideal for substations, generator rooms, maintenance bays, test areas, and plant rooms in factories and industrial sites. Suitable for construction sites, utilities, and facilities management where high-voltage equipment is present. Provides a defined, insulated standing area for electricians and service engineers during live-adjacent work.
Also known as:
Switchboard insulation flooring, high-voltage insulating mat, Class 2 insulating rubber sheet, insulating floor runner, switchroom safety matting, live working floor mat, HV-rated rubber floor sheet, protective electrical floor covering.
Product Specifications
| L&S Part No. | 866 103 |
|---|---|
| Unit of Sale | Per meter |
