Description
Overview:

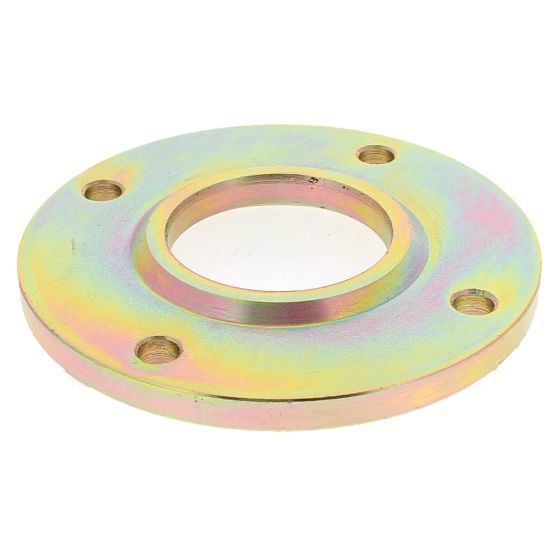

End Cover for Belle PCLX Plate Compactors, Manufacturer Part Number 77.0.015. This Genuine Altrad/Belle part forms the protective end plate for the vibrator/exciter assembly on compactors such as the PCLX320 and PCLX400. Built from durable, workshop-grade materials, it shields bearings and internal mechanisms from grit and impact during demanding site work. The cover is precision-finished to match the housing, helping to maintain correct alignment and sealing. Key dimensions are an outer diameter of 120 mm and a bore/inner diameter of 50.56 mm for an accurate fit around the mating components. Fitted as a direct replacement for a worn or damaged cover, it supports reliable compactor performance and helps prevent premature wear of the exciter unit.
Key Features:
- Genuine Altrad/Belle part 77.0.015 for assured compatibility and quality
- Durable construction designed to withstand vibration, dust, and site conditions
- Precision fit: 120 mm outer diameter and 50.56 mm inner diameter for correct seating
- Helps protect bearings and internal exciter components from debris ingress
- Stable alignment supports smooth operation and consistent compaction results
- Straightforward to replace during routine maintenance to minimise downtime
- Suits a wide range of Belle PCL, PCLX, PC, and PCX series compactors
- Manufactured to OEM tolerances for dependable service life
Typical Applications:
Used during servicing or repair of plate compactors to restore the protective end closure of the exciter unit. Ideal when the original cover is cracked, distorted, corroded, or no longer sealing effectively. Common on equipment used for block paving, asphalt patching, landscaping, trench backfill, and general groundworks where dust and vibration are present.
Also known as:
End cap, exciter housing cover, vibrator cover, outer end plate, compactor end cap, protective end plate, housing cap.
Fits Models:
LPC, PC, PC Series, PCEL320X, PCEL400E, PCL, PCLX12/40E, PCLX13/33, PCLX32, PCLX32S, PCLX40, PCLX320, PCLX400, PCX12/36, PCX13/40, PCX13/40E+, PCX20A, PCX350, PCX400, PCX450, PCX500, PCX60A
Alternate Part Numbers:
77 0 015, 770015
Product Specifications
| L&S Part No. | 77.0.015 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Altrad/Belle |
| OEM No. | 77.0.015 |
| Unit of Sale | 1 |
| Applications | 32S & 40, 32S&40, LPC, PC, PC Series, PCEL320X, PCEL400E, PCL, PCLX 12/40E, PCLX 13/33, PCLX 32, PCLX 32S, PCLX 40, PCLX12/40E, PCLX13/33, PCLX32, PCLX320, PCLX32S, PCLX40, PCLX400, PCSeries, PCX 12/36, PCX 13/40, PCX 13/40E+, PCX12/36, PCX1236, PCX13/40, PCX13/40E+, PCX1340, PCX20A, PCX350, PCX400, PCX450, PCX500, PCX60A |
| Machine Type | Compactors |
| Fits Models | PCX12/36, PCX13/40 | PCX350 PCX400 PCX450 PCX500 | LPC | PC Series | PCEL320X | PCEL400E | PCL | PCLX 12/40E | PCX20A | PCX60A | PCX 13/40E+ | PCLX 13/33 | PCLX 32, 32S & 40 |
