Description
Overview:

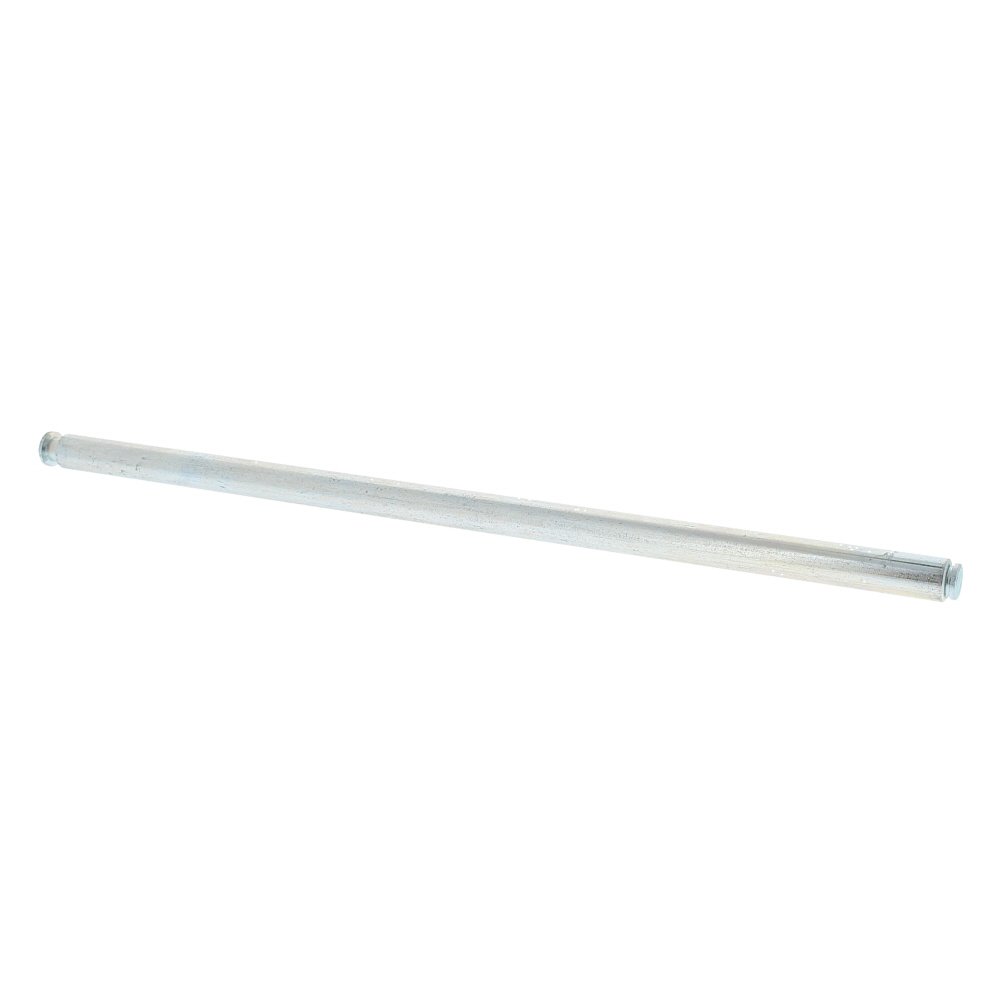

The Extension Shaft for Bosch GCM 12 GDL Slide Mitre Saw is a genuine Bosch replacement part designed to restore factory performance and accuracy. Precision‐machined from robust steel with a smooth finish, it replaces a worn or damaged shaft within the saw's mechanism to keep movement smooth and aligned. Built specifically for the Bosch GCM 12 GDL (also referred to as GCM12GDL), it provides the correct geometry and seating for a secure fit. Using the correct OEM component helps reduce play in the assembly, supports consistent mitre and bevel settings, and helps protect bearings and related parts from premature wear. Identified by OEM No. 1609B00230, this Genuine Part is suitable for workshop and site use and can be fitted with standard hand tools following the Bosch service manual.
Key Features:
- Genuine Bosch part for assured compatibility and fit (OEM No. 1609B00230)
- Precision‐machined steel construction for strength and long service life
- Exact dimensions to maintain alignment and cutting accuracy
- Helps minimise vibration and play within the mechanism
- Like‐for‐like replacement to reduce downtime
- Corrosion‐resistant finish to withstand regular use
- Suitable for professional, trade, and DIY maintenance of the saw
- Supports smooth operation of the slide/mitre functions when correctly installed
Typical Applications:
Routine maintenance and repair of Bosch GCM 12 GDL slide mitre saws in joinery, carpentry, shopfitting, and on-site installation work. Ideal when the original shaft shows wear, scoring, or looseness that affects slide smoothness or cut precision. Supports accurate crosscuts, mitres, and bevels in timber, MDF, and appropriate materials when used with the correct blade.
Also known as:
Spindle shaft, arbor shaft, drive extension, spindle extension, glide linkage shaft, pivot shaft, output spindle, replacement axle, OEM spindle, maintenance spare for mitre saw assemblies.
Fits Models:
GCM 12 GDL, GCM12GDL
Alternate Part Numbers:
1.609.B00.230, 1 609 B00 230
Product Specifications
| L&S Part No. | 1609B00230 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Bosch |
| OEM No. | 1609B00230 |
| Unit of Sale | 1 |
| Applications | GCM 12 GDL, GCM12GDL |
| Machine Type | Mitre Saw |
| Fits Brands | Bosch |
| Fits Models | GCM 12 GDL |
