Description
Overview:

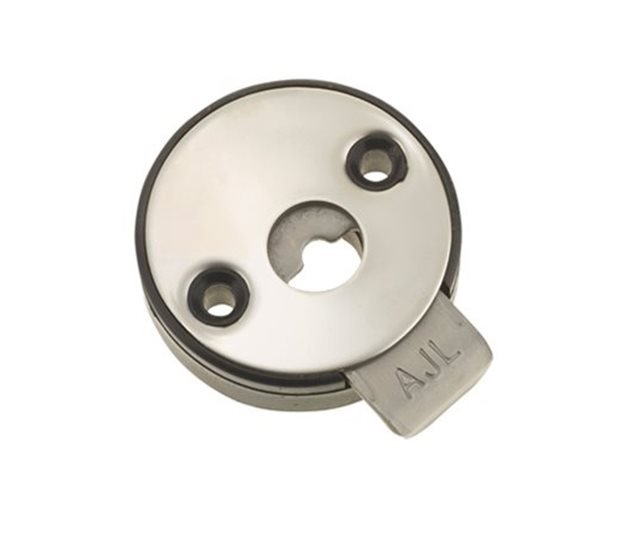

This recessed female door retainer with external release (MPN 800 1043) is designed for holding doors securely in the open position on vehicle bodies and site equipment. It uses a durable black nylon body for the recessed housing, combined with a 304 stainless steel faceplate and stainless internal components for strength and corrosion resistance. The unit sits flush when installed to minimise snagging, with an external release action to disengage the door when required. Measuring Ø62 mm (2.44 in) across the face and 17.5 mm (0.69 in) deep, it suits compact spaces on commercial vehicle cabs, truck bodies, equipment cabinets and modular buildings. Fixing is via countersunk holes sized Ø6.3 mm (0.25 in) to suit standard screw or bolt hardware. Intended as the female component of a hold-back system, it accepts a compatible mating part to complete the installation.
Key Features:
- Recessed female door retainer with external release action
- Black nylon body with 304 stainless steel faceplate and internal parts
- Self colour stainless finish for corrosion resistance
- Overall face diameter: Ø62 mm (2.44 in)
- Body depth: 17.5 mm (0.69 in)
- Countersunk fixing holes: Ø6.3 mm (0.25 in)
- Low-profile recessed fit to reduce snagging and protect components
- Suitable for use as the female component with a compatible male striker
- Built for commercial and industrial environments
Typical Applications:
Used on commercial vehicle cabs and truck bodies to hold doors open during loading, servicing or inspection. Also fitted to equipment cabinets in service vehicles and to modular buildings, site cabins and similar enclosures where a recessed, robust door hold-back is required.
Also known as:
Door hold-back, recessed door holder, door retaining socket, female door stop, recessed door catch
Product Specifications
| L&S Part No. | 800 1043 |
|---|---|
| Unit of Sale | 1 |
