Description
Overview:

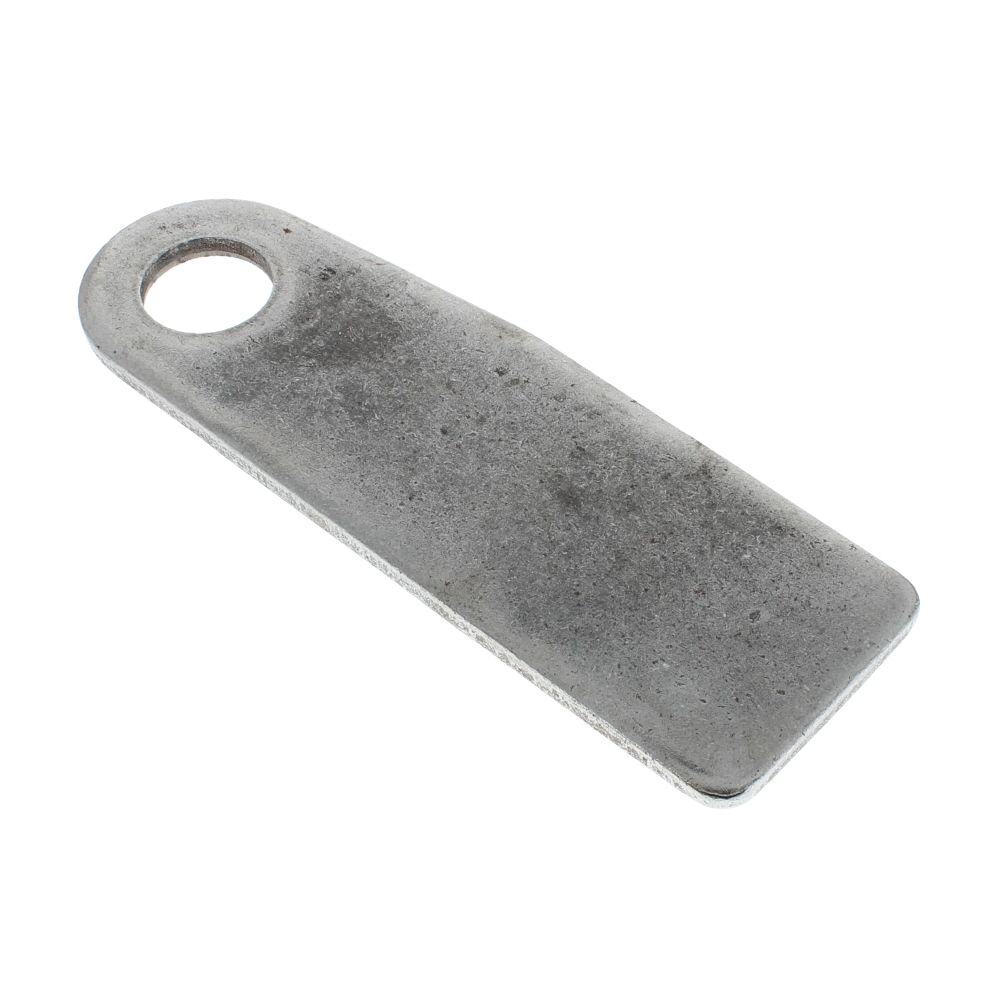

Weld-On Cropped Mild Steel Eye Plate, Ø22mm, 152 x 51 x 5mm (MPN 3106 001) is a compact, weld-on eye plate for commercial vehicle and trailer bodywork. Manufactured from mild steel and supplied in self colour (uncoated), it is intended to be welded directly to the body structure and then finished as required by painting or galvanising. The cropped profile allows close mounting near edges or posts. The plate measures 152mm long (6"), 51mm wide (2") and 5mm thick (3/16"), with a 22mm (7/8") eye suitable for use with common dropside chains, small hooks or rope. Typically fitted to dropside and tailboard assemblies, it provides a durable anchor point for retaining chains or for tying sheets and covers on truck bodies, plant transporters and general trailers. Suitable for new builds, refurbishments and body repairs where a straightforward weld-on eye is required.
Key Features:
- Mild steel construction for straightforward welding and durability
- Self colour (uncoated) finish ready for fabrication and post-finishing
- Weld-on fixing design; no bolt holes to drill
- Cropped pattern for compact, edge-friendly installation
- Eye/internal diameter: 22mm (7/8")
- Overall length: 152mm (6")
- Overall width: 51mm (2")
- Plate thickness: 5mm (3/16")
- Suited to dropside and tailboard chains, hooks and ropes
- Supplied as a single eye plate for general body hardware applications
Typical Applications:
Used on dropside and tailboard bodywork across commercial vehicles, truck and trailer bodies, plant carriers and agricultural trailers. Commonly welded to sideboards, corner posts or tailgates to take dropside retaining chains or to provide a tie-off point for sheets, nets and covers.
Also known as:
Tailboard eye plate; Dropside eye; Weld-on lashing eye; Steel pad eye; Cropped eye plate
Product Specifications
| L&S Part No. | 3106 001 |
|---|---|
| Unit of Sale | 1 |
| Key Features | - 3/16 in (4.8 mm) size for common rope setups - Robust metal construction for durability - Suitable for indoor and outdoor environments - Low-profile design distributes loads effectively - Dimensions: 154 mm x 50 mm x 10 mm |
