Description
Overview:

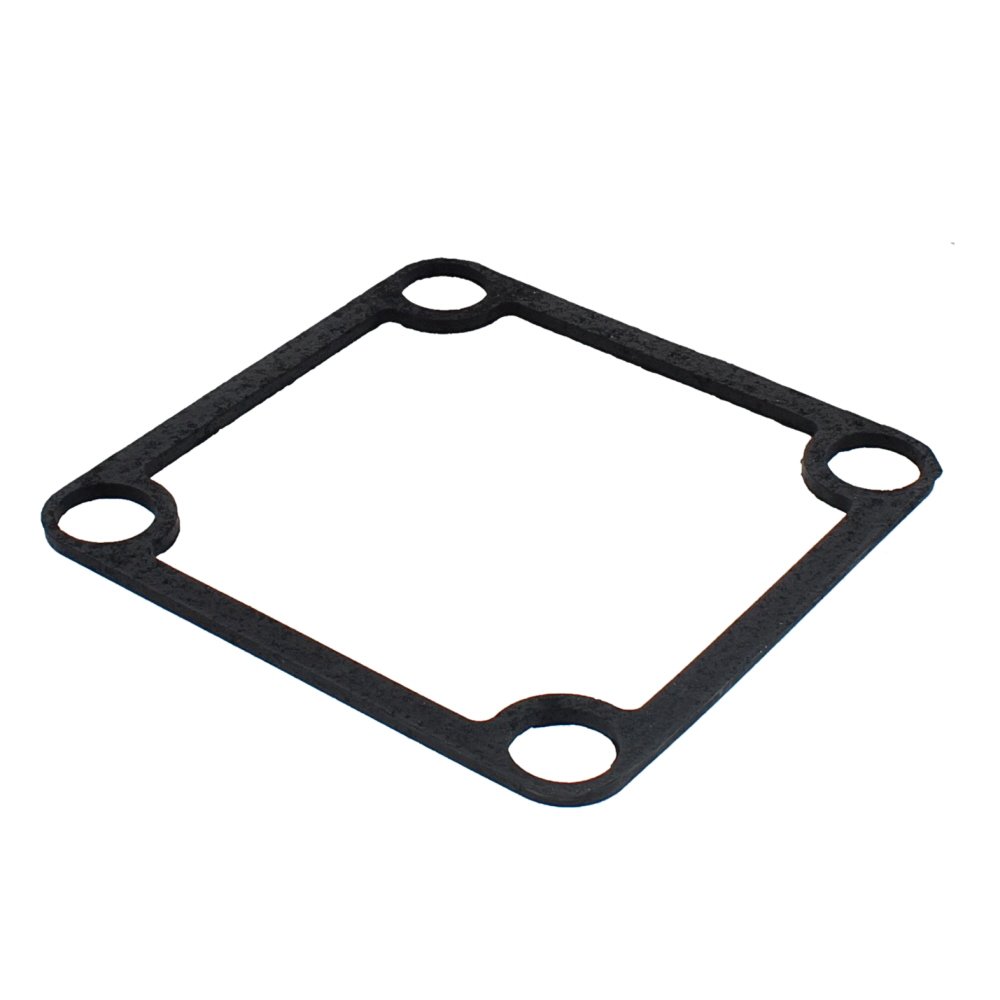

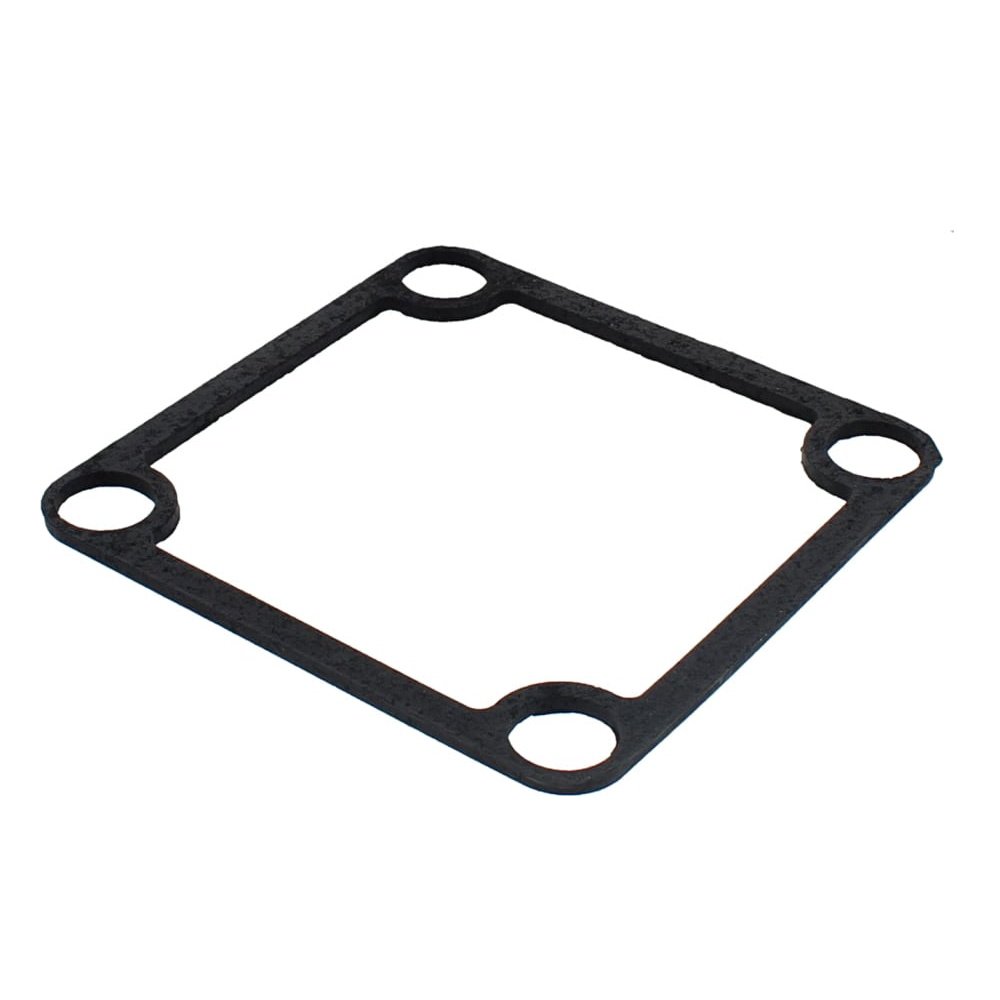

The Flange Gasket for Honda WB30-series 3 inch (76.2 mm) water pumps is a flat sealing ring used to create a tight, leak-free joint at the pump flange. Made from durable, water-resistant gasket material, it sits between mating faces on the pump housing and pipework or adapters to prevent air and water leaks. This helps the pump hold prime and maintain correct flow and pressure during operation. Referenced by Honda OEM No. 78114-YB4-000, it is designed to match the dimensions and profile required on the WB30 family, including WB30XT2 and WB30XT3. Ideal for routine maintenance or repairs, it restores sealing performance when the flange joint has been disturbed, fasteners retorqued, or an old gasket shows signs of wear.
Key Features:
- Direct-fit replacement for Honda 3 inch (76.2 mm) WB30-series water pumps
- Matches OEM No. 78114-YB4-000 for correct sizing and profile
- Creates a reliable seal at suction or discharge flange to reduce leaks and air ingress
- Helps maintain pump prime, operating pressure, and consistent flow
- Stable under vibration and repeated thermal cycling typical of site use
- Simple to fit with standard hand tools; no modifications required
- Suitable for preventative maintenance and during hose/adapter changes
- Flat gasket design for even compression and predictable sealing
- Supports downtime reduction by enabling quick, clean replacement
- Compatible with typical site water, silt, and debris within normal operating conditions
Typical Applications:
Used on Honda WB30 pumps in construction dewatering, landscaping, agriculture, utilities, and emergency flood work. Positioned at the flange interface on the suction or discharge side where a flat gasket is specified, it renews the seal when assembling hoses, camlock fittings, or adapters on 3 inch (76.2 mm) pump outlets.
Also known as:
Water pump flange gasket, pump flange seal, flange packing, volute flange gasket, 3 inch pump gasket, 76.2 mm pump gasket, WB30 flange seal, pump joint gasket.
Fits Models:
WB30T DRA, WB30X C, WB30X CR, WB30XC, WB30XCR, WB30XK1, WB30XK2, WB30XT2, WB30XT3, WD30X C, WD30XC, WD30XK1
Product Specifications
| L&S Part No. | 78114 YB4 000 |
|---|---|
| Manufacturer | Honda |
| OEM No. | 78114YB4000 |
| Unit of Sale | 1 |
| Applications | WB30T DRA, WB30X C, WB30X CR, WB30XC, WB30XCR, WB30XK1, WB30XK2, WB30XT2, WB30XT3, WD30X C, WD30XC, WD30XK1 |
| Machine Type | Pumps |
| Fits Brands | Honda |
