Description
Overview:

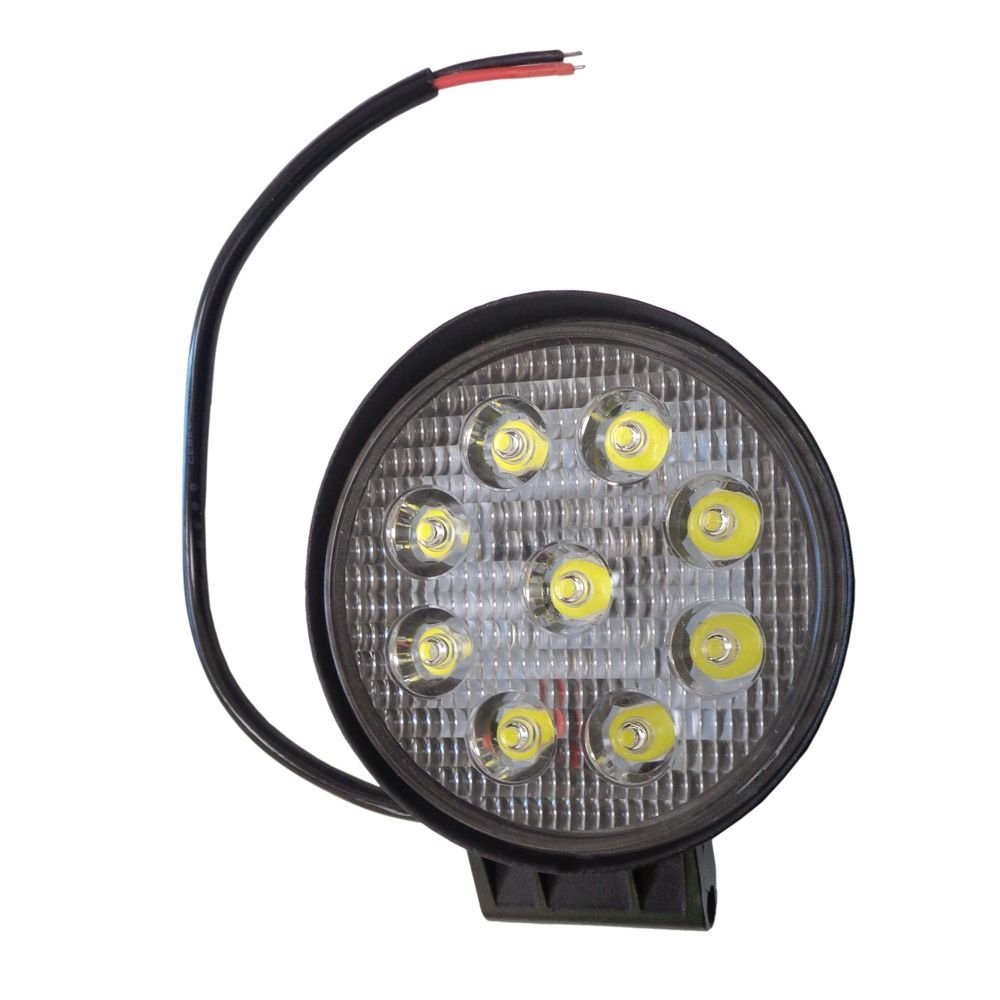

The LED Work Lamp 27W 12/24V Spot Beam (MPN 207 068) is a compact, high-output lamp designed for demanding mobile and site applications. It uses nine long-life 3W LEDs to deliver a focused 30° spot beam with 1400 lumens of daylight-colour light at 6500K, improving distance visibility around vehicles and machinery. Built for harsh environments, the unit features an anti-corrosion die-cast aluminium housing and a toughened polycarbonate lens, with a stainless steel mounting bracket for straightforward fitment. Rated to IP67, it is waterproof and dustproof, suitable for exterior mounting on plant, trailers, service vans and recovery vehicles. The lamp operates across 10-30V DC (12/24V systems) with low current draw of 2.0A at 12V and 0.9A at 24V, and carries EMC approval and CE marking for use on road-going and off-road equipment.
Key Features:
- 27W LED work lamp using 9 x 3W high-intensity LEDs
- 10-30V DC operating range for 12V and 24V systems
- 1400 lumens output with 6500K daylight colour
- 30° spot beam for focused distance illumination
- IP67 waterproof and dustproof rating
- Die-cast aluminium anti-corrosion housing
- Toughened polycarbonate lens

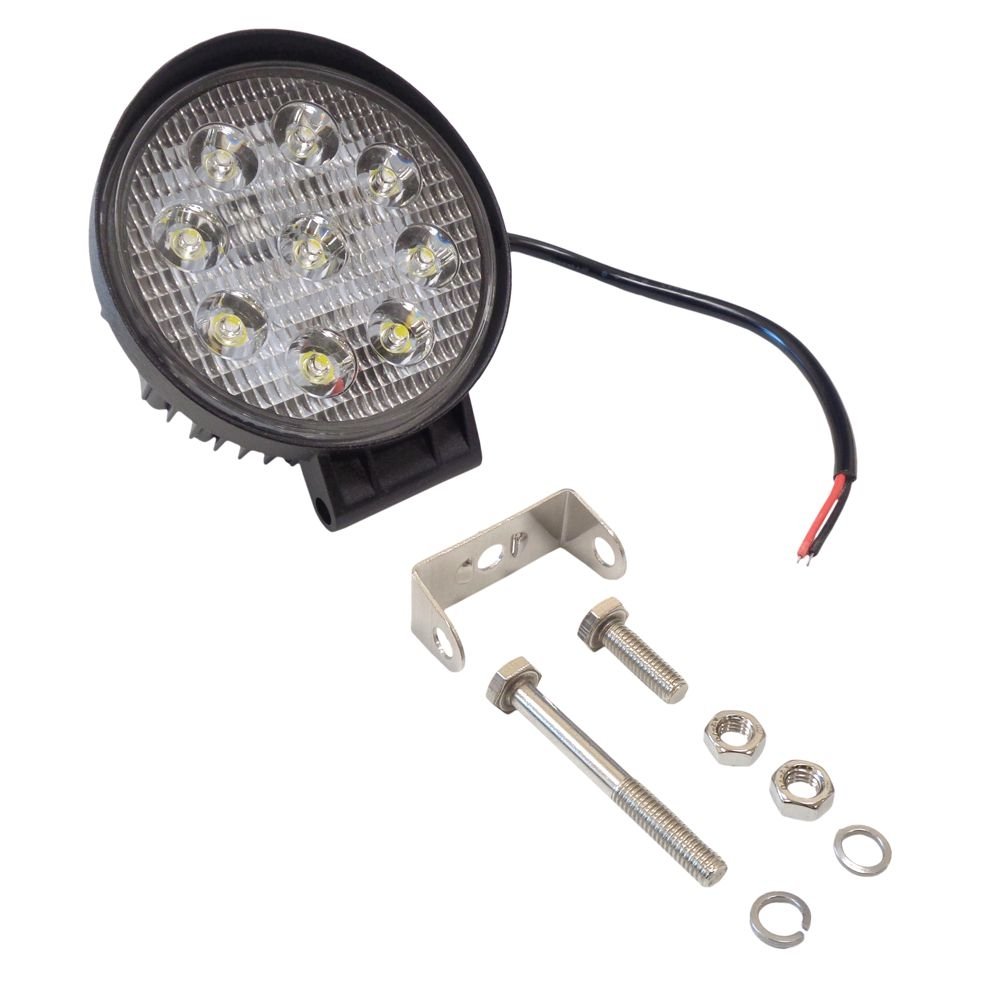

- Stainless steel mounting bracket included for easy install
- 300 mm cable tail for wiring
- Low current draw: 2.0A @ 12V DC; 0.9A @ 24V DC
- EMC approved and CE marked
- Low power consumption and long service life
Typical Applications:
Work lighting on construction plant, agricultural machinery, service and utility vans, 4x4s, recovery trucks, tippers, and general trailers. Commonly mounted on cabs, roof racks, headboards, gantries, bumpers, rear frames and loading areas where a focused spot beam is required for distance viewing or task lighting in low-light conditions.
Also known as:
LED Worklight
27W Spot LED Work Lamp
12/24V LED Work Lamp
Maypole part number MP5068
Product Specifications
| L&S Part No. | 207 068 |
|---|---|
| Manufacturer | Maypole |
| Unit of Sale | 1 |
