Description
Overview:

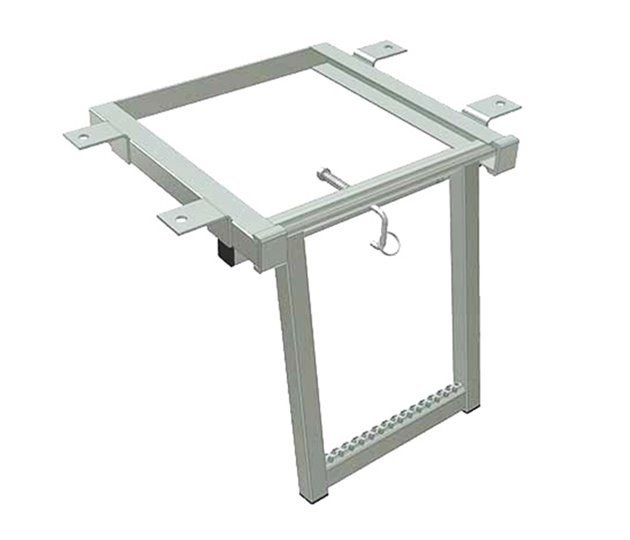

This retractable underbody access step (MPN 800 1016) is a single‐rung assembly designed to provide safe, convenient access to vehicle bodies and equipment. Manufactured from mild steel for durability, it is finished in zinc with clear passivation to help resist corrosion in fleet and site environments. The step retracts beneath the vehicle or body when not in use, keeping projections to a minimum and reducing the risk of damage. Dimensions are 366.5 mm (14.43 in) in length, 472 mm (18.58 in) in width, and 61 mm (2.40 in) in depth when stowed. The unit weighs 3.78 kg (8.33 lb) and mounts via four 11 mm (7/16 in) fixing holes to suitable brackets or crossmembers. Suitable for commercial vehicles, plant transporters and trailers where a compact, stowable step is required for routine access to decks, tool lockers or bodywork.
Key Features:
- Retractable underbody step with 1 rung
- Mild steel construction for strength and durability
- Zinc and clear passivated finish for corrosion resistance
- Length: 366.5 mm (14.43 in)
- Width: 472 mm (18.58 in)
- Depth (stowed): 61 mm (2.40 in)
- 4 fixing points with 11 mm (7/16 in) holes
- Lightweight unit: 3.78 kg (8.33 lb)
- Designed for under‐chassis mounting on vehicle bodies and trailers
Typical Applications:
Installed under the side or rear of commercial vehicle bodies, plant and equipment transporters, tippers and trailers to provide a safe step-up to load areas, platforms, side doors or body-mounted equipment where a compact, retractable solution is preferred.
Also known as:
Folding underbody step, slide-out step, pull-out step, drop-down step, underfloor access step, chassis mount step
Product Specifications
| L&S Part No. | 800 1016 |
|---|---|
| Unit of Sale | 1 |
