Description
Overview:

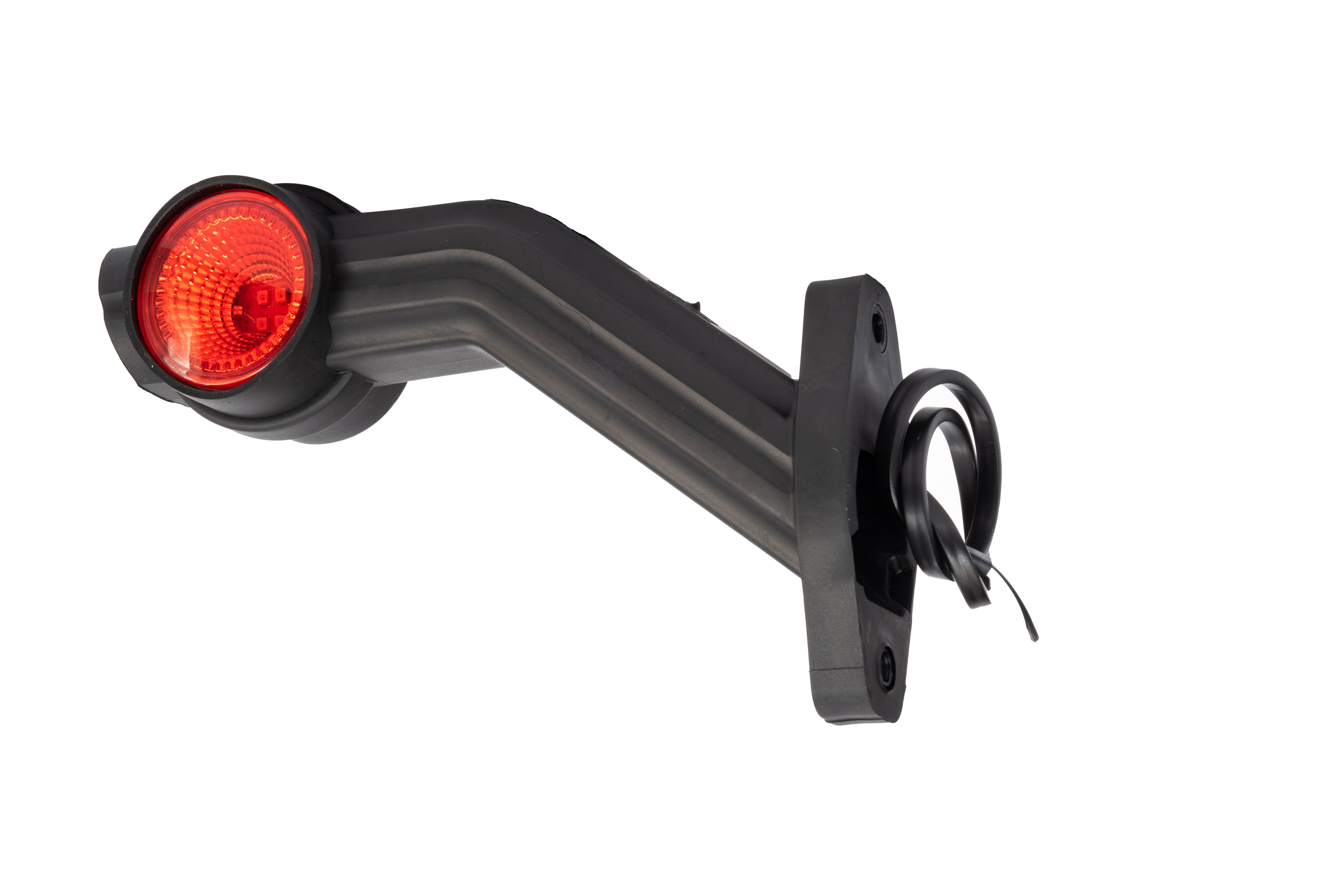

This left-hand 45° LED outline marker lamp (MPN 763 687) provides red, white and amber position marking for the rear, front and side extremities of trailers and towed vehicles. It is a Fristom multi-voltage unit designed for 12-36V systems, with a fully sealed construction to withstand demanding road and site conditions. The lamp uses low-power LEDs and is shock resistant, helping reduce maintenance on commercial trailers, plant transporters and agricultural equipment. The integrated 0.75 m lead (75 cm / approx. 29.5 in) terminates in a QS075 "double click" connector compatible with Aspöck cable systems, making it straightforward to integrate into existing looms. With IP68 ingress protection and both E-mark and EMC approvals, this unit is suitable for road use where an outline marker is required to improve vehicle visibility and compliance. The 45° left-hand orientation ensures the correct tri-colour presentation when fitted on the nearside of the vehicle.
Key Features:
- Left-hand orientation with 45° body for correct tri-colour presentation
- Red/white/amber LED outputs for rear, front and side marking
- Multi-voltage 12-36V DC operation for wide vehicle compatibility
- IP68 fully sealed against dust and prolonged water immersion
- EMC compliant and E approved for road use
- Low power consumption, high-efficiency LED technology
- Shock resistant construction for harsh operating environments
- 0.75 m lead (75 cm / approx. 29.5 in) with QS075 "double click" connector
- Connector compatible with Aspöck cable systems and looms
- Integrated mounting holes for secure installation
Typical Applications:
Used as an outline marker at the front, side and rear corners of trailers, plant and machinery transporters, caravans, horseboxes, agricultural trailers and light commercial bodies. Suits new builds and repairs where a left-hand 45° tri-colour marker is specified and where integration with Aspöck-style QS075 wiring is required.
Also known as:
Outline marker light
Position marker lamp
Contour lamp
Tri-colour LED marker
Maypole part number MP1696BL
Product Specifications
| L&S Part No. | 763 687 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
