Description
Overview:

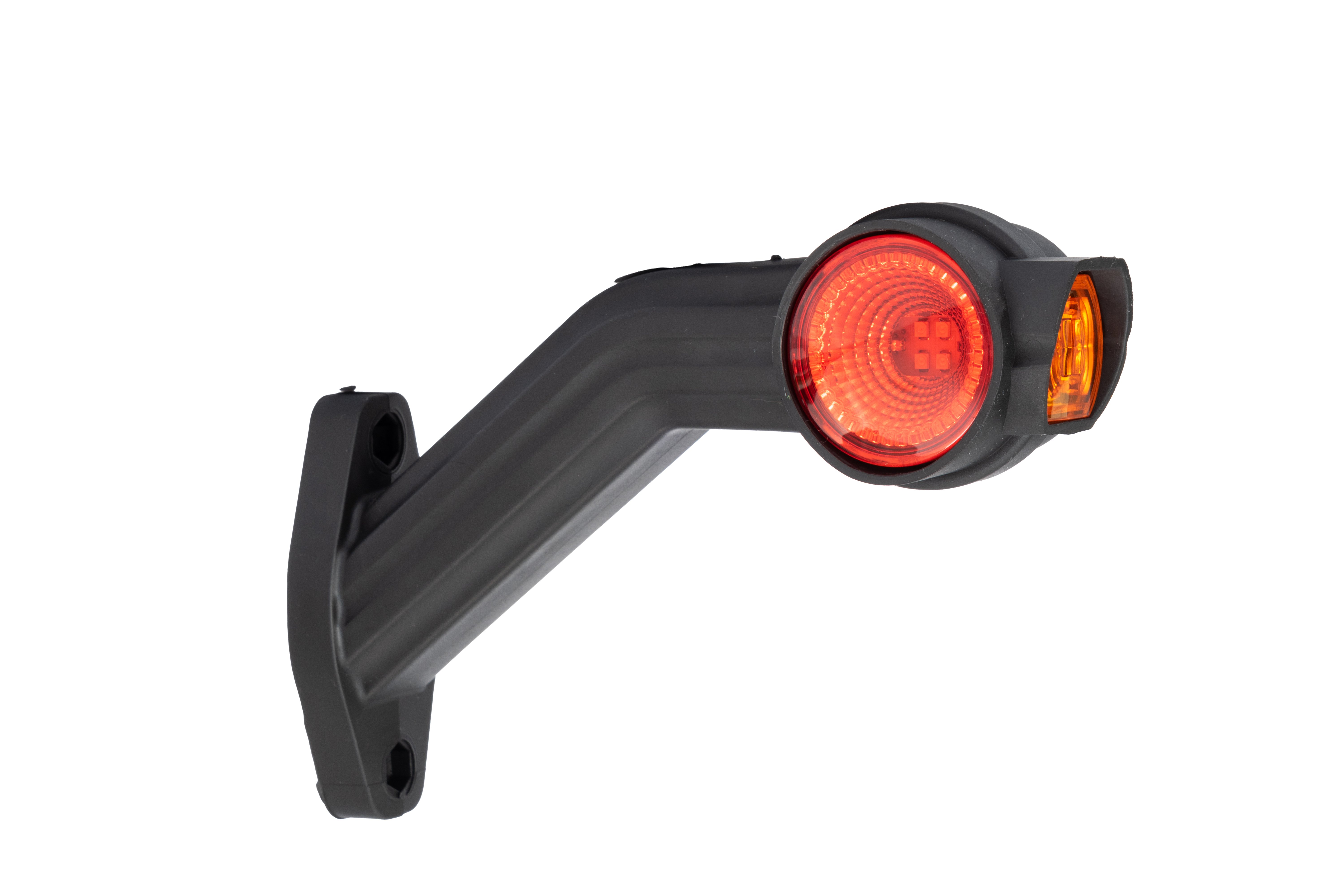

LED Outline Marker Lamp is a right-hand, 45° angled LED marker for vehicle and trailer outline lighting. It provides tri‐colour marking - white to the front, amber to the side and red to the rear - to improve vehicle visibility and help meet road lighting requirements. A sealed housing rated to IP68 resists water and dust ingress. Supplied with a 75 cm (29.5 in) cable and QS075 "double click" connector compatible with Aspöck wiring, it mounts via base holes for a secure installation on the vehicle's offside.
Key Features:
- Right-hand orientation with 45° head for offside fitment
- Tri-colour LED marking: red/white/amber for rear/front/side visibility
- Multivolt 12-36V operation for 12V and 24V systems
- Low power consumption LED technology
- Shock-resistant construction for demanding use
- IP68 sealed unit for water and dust protection
- EMC compliant and E approved for road use
- QS075 double click connector; compatible with Aspöck cable systems
- 75 cm (29.5 in) pre-wired cable lead
- Base mounting holes for secure fixing
Typical Applications:
Used as an outline marker on the front/rear corners and sides of road trailers, plant and machinery transporters, box vans, caravans and other towing setups. The right-hand 45° configuration positions the red, white and amber segments correctly on the offside. The QS075 connector and 75 cm lead allow straightforward integration with Aspöck-style trailer looms during new builds or maintenance replacements on fleet equipment.
Also known as:
Right Hand 45° Outline Marker Lamp, Tri-Colour LED Stalk Marker Light, Aspöck Compatible Outline Marker
Product Specifications
| L&S Part No. | 763 688 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Right-hand orientation with 45° angled head - Tri-colour LED: red/white/amber marking - Multivolt 12-36V for broad system compatibility - IP68 sealed for water and dust resistance - Comes with 75 cm cable and QS075 connector |
