Description
Overview:

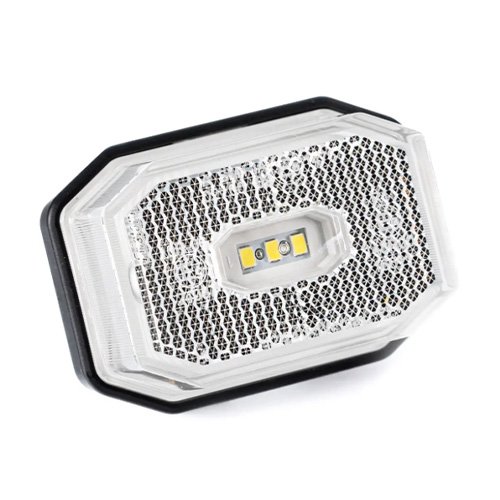

Compact front clear LED marker lamp from Fristom for 12-36V systems. The unit is surface-mounted with mounting holes, can be installed horizontally or vertically, and is supplied with a 50 cm flying lead for straightforward connection. It carries IP69 protection for dust-tight sealing and resistance to high-pressure washdown. E-mark and EMC approvals support road use on suitable vehicles. An integrated reflector provides additional conspicuity without requiring a separate reflector.
Specification:
- Operating voltage: 12-36V DC
- Connection: 50 cm cable
- Mounting: Surface mount with mounting holes
- Orientation: Horizontal or vertical
- IP rating: IP69
- Approvals: EMC compliant, E-mark approved
- Light source: LED
- Lens: Clear (front marker)
- Reflector: Integrated
Typical Applications:
Front position marker for plant and equipment trailers, transporters, and other commercial vehicles. Suitable for new builds or replacement of existing front marker lamps on 12-36V fleets.
Product Specifications
| L&S Part No. | 763 391 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Operating voltage range: 12-36V DC - Surface mount with horizontal or vertical orientation - IP69 rated for dust and high-pressure washdown - Integrated reflector for added conspicuity - E-mark and EMC approved for road use |
