Description
Overview:

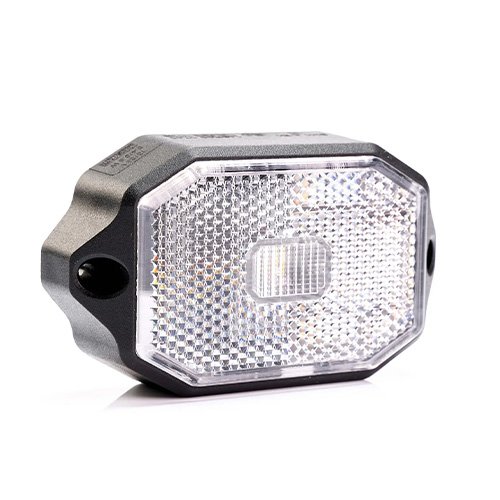

Compact Fristom LED marker lamp providing a clear front position light with an integrated reflector. Operates from 12-36 V and is sealed to IP69 for use in harsh road and site conditions. Supplied with a QS075 double-click connector and 500 mm cable for plug-in compatibility with Aspöck wiring looms. The lamp can be installed horizontally or vertically using the mounting holes. E-marked with EMC compliance for road use.
Specification:
- Type: Front clear LED marker lamp with integrated reflector
- Operating voltage: 12-36 V
- Connector: QS075 double-click; compatible with Aspöck systems
- Cable length: 500 mm (50 cm)
- IP rating: IP69
- Orientation: Horizontal or vertical mounting
- Approvals: E-marked and EMC approved
- Mounting: Mounting holes provided
- Design: Compact body
Typical Applications:
Front outline/position marker on trailers, transporters, plant and agricultural equipment, and light commercial bodies. Suitable for new builds and service replacements on installations using Aspöck-style looms.
Product Specifications
| L&S Part No. | 763 430 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Operates on 12-36 V for versatile use - IP69 sealed for harsh conditions - QS075 connector fits Aspöck wiring looms - 500 mm cable for easy installation - E-marked and EMC approved for road use |
