Description
Overview:

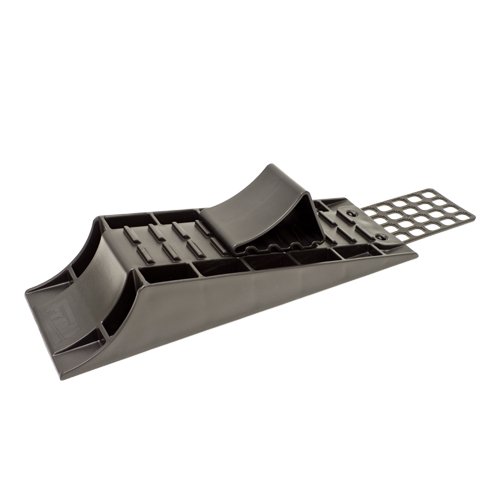

Three-piece wheel levelling ramp set for caravans and motorhomes. Provides a controlled step-up to level a vehicle on site. Supplied with a main ramp, an easy-access lead-in plate to reduce approach angle, and a wheel chock to secure the wheel once positioned. Rated for vehicles up to 8,000 kg total weight and 2,000 kg per wheel. Suitable for single and twin-axle layouts; the curved rear edge allows positioning between closely spaced twin wheels where applicable. Use only on firm, solid ground and follow the instructions provided.
Specification:
- 3-part set: ramp, lead-in plate, wheel chock
- Maximum levelling height: 80 mm (3.15 in)
- Tested load capacity: 2,000 kg per wheel (4,409 lb)
- Vehicle suitability: up to 8,000 kg total weight (17,637 lb)
- Footprint (W x L): 160 x 450 mm (6.30 x 17.72 in)
- Suitable for single and twin axle vehicles
- Curved rear allows insertion between twin wheels
- Use only on solid, level ground; avoid uneven surfaces
- Contents: 1 ramp, 1 lead-in plate, 1 wheel chock
- Part number: MP4603
Typical Applications:
Levelling touring caravans and motorhomes on pitches, driveways or yards. Aids quick, repeatable setup for single or twin-axle vehicles before stabilisers or corner steadies are deployed.
Product Specifications
| L&S Part No. | 763 663 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
