Description
Overview:

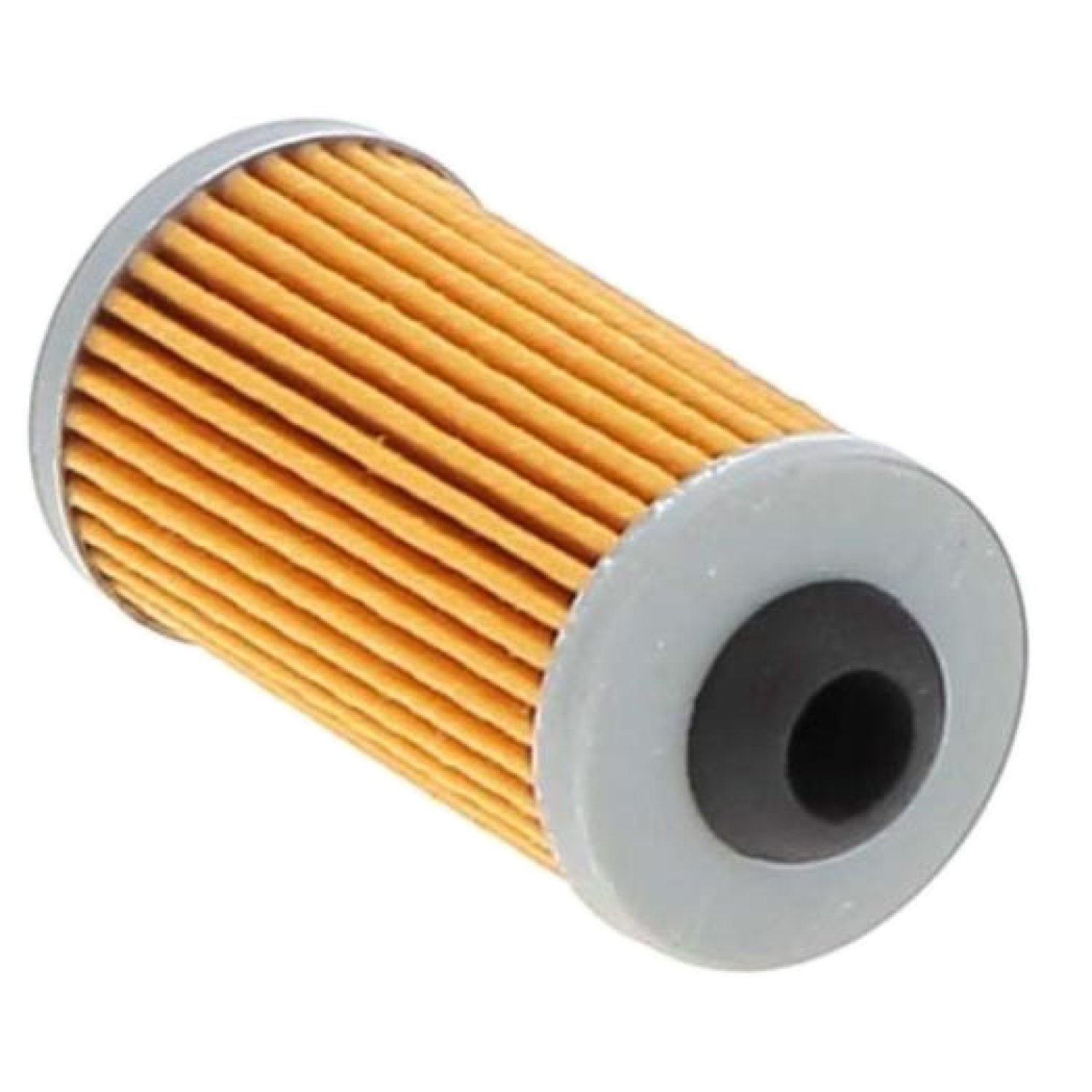

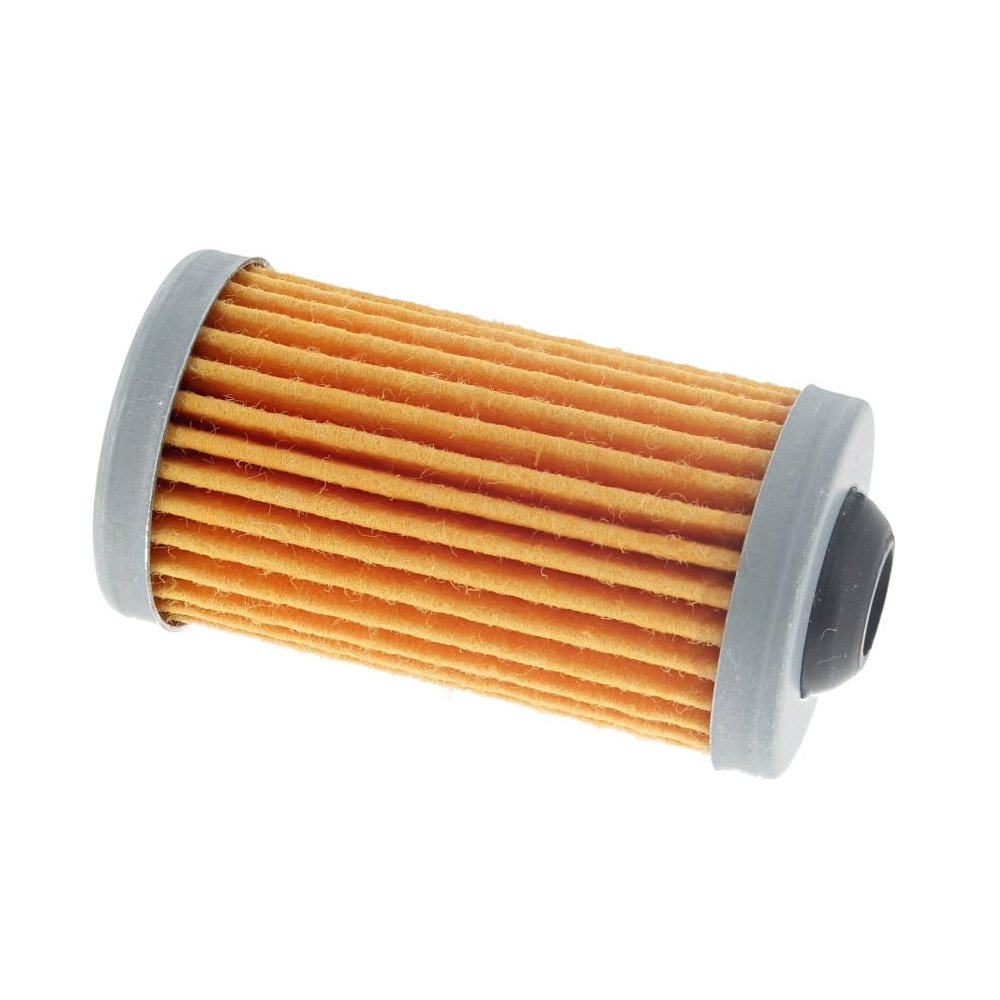

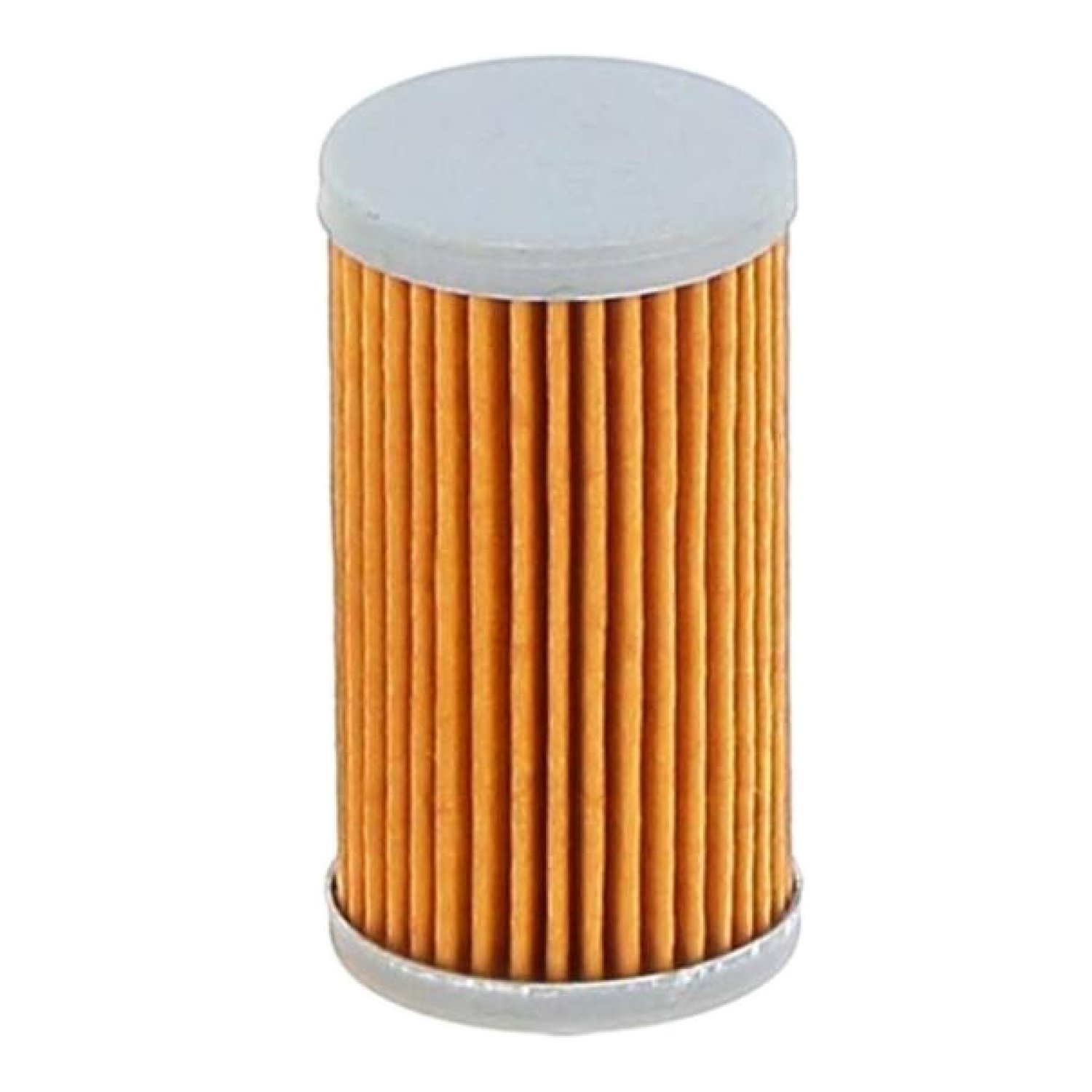

Cartridge-type fuel filter for small diesel engines used on construction and garden machinery. Built with a pleated filter medium and rigid end caps for dependable filtration, it removes fine contaminants from diesel before they reach the injection system, helping engines start reliably and run clean. This non-genuine, aftermarket replacement suits Hatz single-cylinder engines including 1B20 and 1B30 found on many plate compactors and site machines. Dimensions: 63.8 mm height (approx. 2.51 in) and 40 mm diameter (approx. 1.57 in) for an accurate fit in the specified housings. Ideal for routine servicing to protect pumps and injectors, reduce smoke, and extend component life. Commonly referenced by MPN F163 for easy identification during maintenance and parts lookup.
Key Features:
- Non-genuine aftermarket replacement offering solid performance and value
- Pleated cartridge design for high dirt-holding capacity and steady fuel flow
- Compact size: 63.8 mm tall (approx. 2.51 in) x 40 mm diameter (approx. 1.57 in)
- Supports clean combustion, easier starting, and reduced wear on injectors
- Suitable for Hatz 1B-series engines widely used on plate compactors and similar kit
- Robust construction for service intervals typical of site use
- Straightforward drop-in fitting in the original filter housing
- Helps maintain engine efficiency in dusty, high-vibration environments
- A practical choice for fleet maintenance and regular filter changes
- Clear identification with reference F163 and wide cross-reference coverage
Typical Applications:
Used on plate compactors, trench rammers, light rollers, generators, and other plant powered by Hatz 1B-series engines. Suitable for daily site use where fuel quality can vary, helping protect pumps and injectors. Ideal for Wacker-type plates and similar compactors working on groundwork, landscaping, utilities, and hire fleets where reliable, low-cost servicing is important.
Also known as:
Fuel filter element, diesel filter cartridge, fuel cartridge, fuel strainer element, cartridge fuel filter, replacement fuel element, engine fuel screen, diesel particulate pre-filter (cartridge type), service filter insert for Hatz 1B series.
Fits Models:
Hatz 1B20, 1B27, 1B30, 1B40, 1B50, 1-71, MBR71, APF 1850, APF 2050 DH, APR 3020 DHDE, APR 4060, APR 4060 DHDE, APR 52/75, AR 65 E/DE, AVH 6020 DH, AVH 6020 DHDE, AVH 6030, AVP 1850-2, AVP 1850 DH, AVP 2220/DH, AVP 2620, AVP 2920, AVP 2920-2, AVP 3020, AVP 3520, AVP 3520 DH, AVP 3920, BPR 25/40 D, BPR 25/40 DH, BPR 25/40 D H-START, BPR 25/45 D-3, BPR 25/45 DH-3, BPR 25/50 D, BPR 25/50 D H-START, BPR 30/38 D-3, BPR 30/38 DH-2, BPR 30/38 DH-3, BPR 35/42 D, BPR 35/42 D/E E-START, BPR 35/42 D/H, BPR 35/42 D/H H-START, BPR 35/60 D, BPR 35/60 D/E, BPR 35/60 D/E E-START, BPR 35/60 D/H, BPR 35/60 D/H E-START, BPR 35/60 D/H H-START, BPR 40/45 DH-2, BPR 40/45 DH-3, BPR 40/60 D, BPR 40/60 D/E E-START, BPR 40/60 D/E/H H-START, BPR 40/60 D/H H-START, BPR 45/55 D, BPR 50/52 D, BPR 50/55 D, BPR 50/55 D EPA4 DOC, BPR 50/55 D E-START, BPR 50/55 D E-START EPA4, BPR 60/65 D, BPR 60/65 D EPA4 DOC, BPR 60/65 D E-START, BPR 60/65 D E-START EPA4, BVP 18/45 D, BW 71 E-2, CR 3, CR 4, CR 5, CR 5 CCD, CR 5 E, CR 8.
Alternate Part Numbers:
SK 3454-SET, 50474300-1, 50474302.1, 50474300.1, 50474302-1, SK3454SET, 504743021, 504743001, 50440500, 50474300, 50474303, SN 70145, 5723502, BSF1143, FFF4302, 1635200, WGF9306, 1635210, SK 3454, SN70145, 937414, KX77/1, MD.457, 3454/1, MD-457
Product Specifications
| L&S Part No. | LF4015 |
|---|---|
| OEM No. | F163 |
| Unit of Sale | 1 |

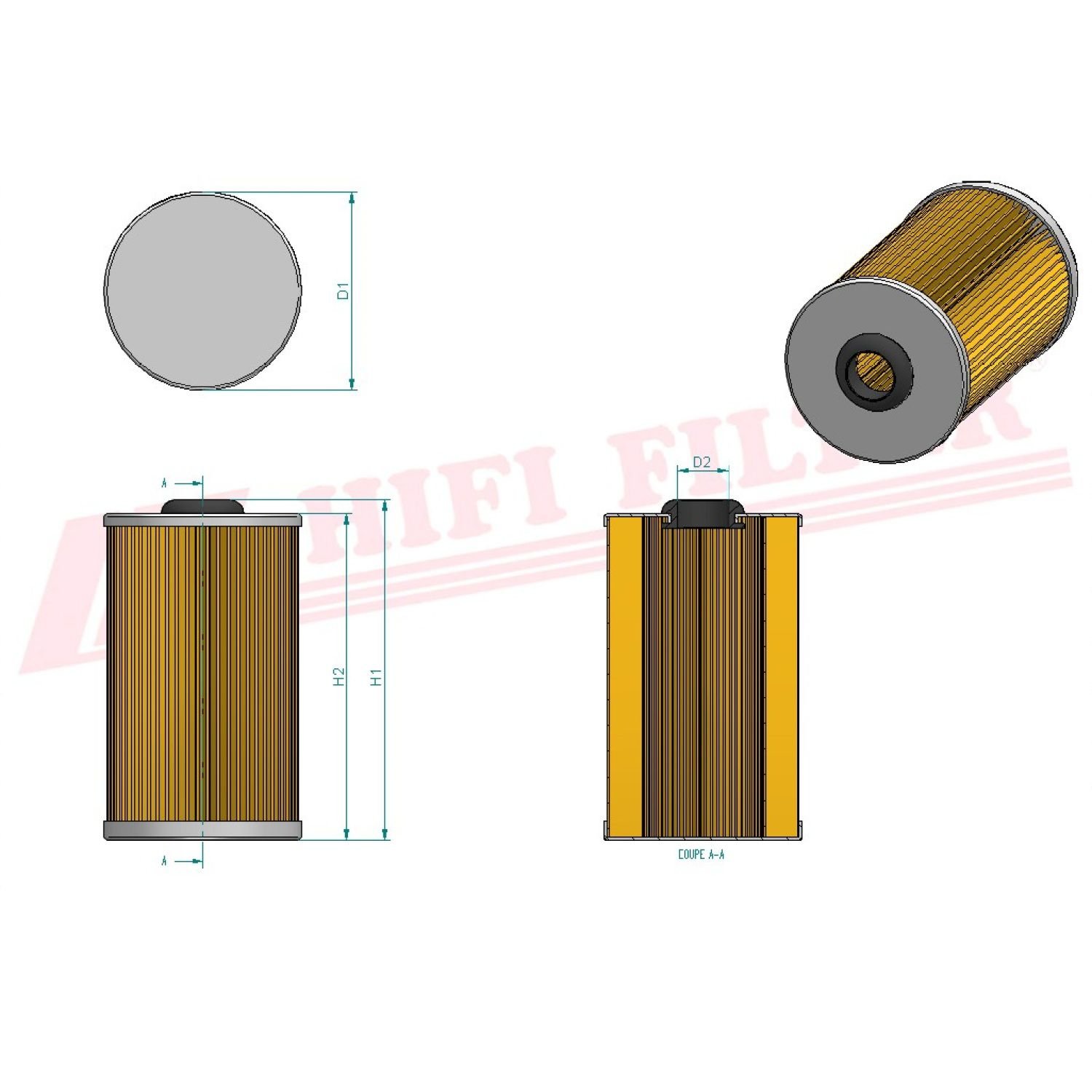

| Size | Full height - 63.8mm; O/D - 40mm |
| Applications | 1-71, 1B20, 1B30, 1B40, 1B50, MBR71, A085005, 115-42, 11542, 12314, 1 B 20, 1 B 20 SCS, 1 B 20 V, 1 B 27, 1 B 30, 1 B 30 V, 1 B 40, 1 B 40 V, 1 B 50, 1 B 50 V, 1B20, 1B20SCS, 1B20V, 1B27, 1B30, 1B30V, 1B40, 1B40V, 1B50, 1B50V, 40, APF 1850, APF 2050 DH, APF1850, APF2050DH, APR 3020 DHDE, APR 4060, APR 4060 DHDE, APR 52/75, APR3020DHDE, APR4060, APR4060DHDE, APR5275, AR 65 E/DE, AR65EDE, AVH 6020 DH, AVH 6020 DHDE, AVH 6030, AVH6020DH, AVH6020DHDE, AVH6030, AVP 1850-2, AVP 1850 DH, AVP 2220/DH, AVP 2620, AVP 2920, AVP 2920-2, AVP 3020, AVP 3520, AVP 3520 DH, AVP 3920, AVP18502, AVP1850DH, AVP2220DH, AVP2620, AVP2920, AVP29202, AVP3020, AVP3520, AVP3520DH, AVP3920, BP 15/45-2WD, BP 15/45 DH-2W, BP 18/45-D2, BP 18/45 DH-2W, BP 20/50 D, BP 25/48 D, BP 25/50 D, BP15452WD, BP1545DH2W, BP1845D2, BP1845DH2W, BP2050D, BP2548D, BP2550D, BPR 25/40 D, BPR 25/40 DH, BPR 25/40 D H-START, BPR 25/45 D-3, BPR 25/45 DH-3, BPR 25/50 D, BPR 25/50 D H-START, BPR 30/38 D-3, BPR 30/38 DH-2, BPR 30/38 DH-3, BPR 35/42 D, BPR 35/42 D/E E-START, BPR 35/42 D/H, BPR 35/42 D/H H-START, BPR 35/60 D, BPR 35/60 D/E, BPR 35/60 D/E E-START, BPR 35/60 D/H, BPR 35/60 D/H E-START, BPR 35/60 D/H H-START, BPR 40/45 DH-2, BPR 40/45 DH-3, BPR 40/60 D, BPR 40/60 D/E E-START, BPR 40/60 D/E/H H-START, BPR 40/60 D/H H-START, BPR 45/55 D, BPR 50/52 D, BPR 50/55 D, BPR 50/55 D EPA4 DOC, BPR 50/55 D E-START, BPR 50/55 D E-START EPA4, BPR 60/65 D, BPR 60/65 D EPA4 DOC, BPR 60/65 D E-START, BPR 60/65 D E-START EPA4, BPR2540D, BPR2540DH, BPR2545D3, BPR2545DH3, BPR2550D, BPR3038D3, BPR3038DH2, BPR3038DH3, BPR3542D, BPR3542DEESTART, BPR3542DH, BPR3542DHHSTART, BPR3560D, BPR3560DE, BPR3560DEEESTART, BPR3560DH, BPR3560DHESTART, BPR3560DHHSTART, BPR4045DH2, BPR4045DH3, BPR4060D, BPR4060DEEESTART, BPR4060DEHHSTART, BPR4060DHHSTART, BPR4555D, BPR5052D, BPR5055D, BPR5055DEPA4DOC, BPR5055DEEESTART, BPR5055DEEESTARTEPA4, BPR6065D, BPR6065DEPA4DOC, BPR6065DEEESTART, BPR6065DEEESTARTEPA4, BVP 18/45 D, BVP1845D, BW 71 E-2, BW71E2, CR 3, CR 4, CR 5, CR 5 CCD, CR 5 E, CR 8, CR3, CR4, CR5, CR5CCD, CR5E, CR8 |
| Machine Type | Compactors |
| Fits Brands | Alco Filters, Ammann, Baldwin, Bomag, Dynapac, Greyfriars, Hatz, John Deere, Mahle, Mann & Hummel, Schuup, Sure, TFS, Terex, Woodgate |
| Fits Models | MBR71, 1-71 | 1B20 | 1B30 | 1B40 | 1B50 | MBR71 HD |
