Description
Overview:

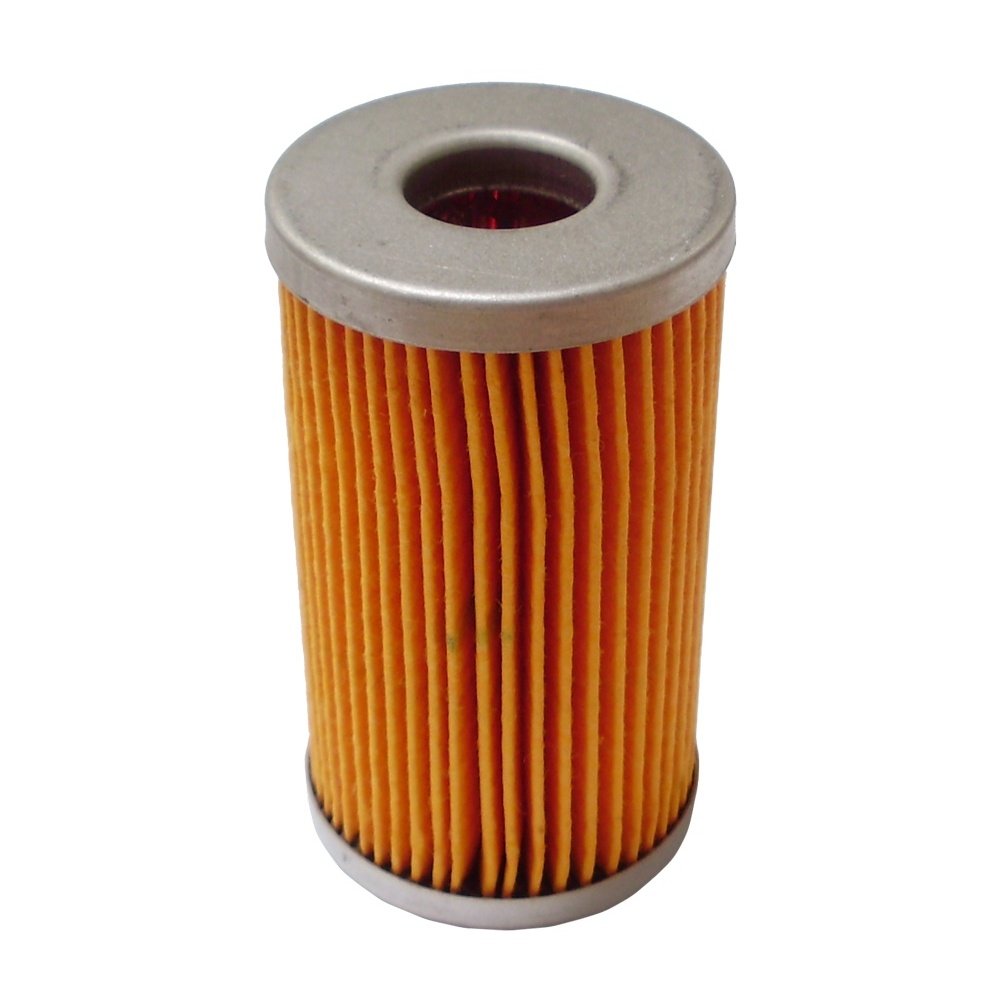

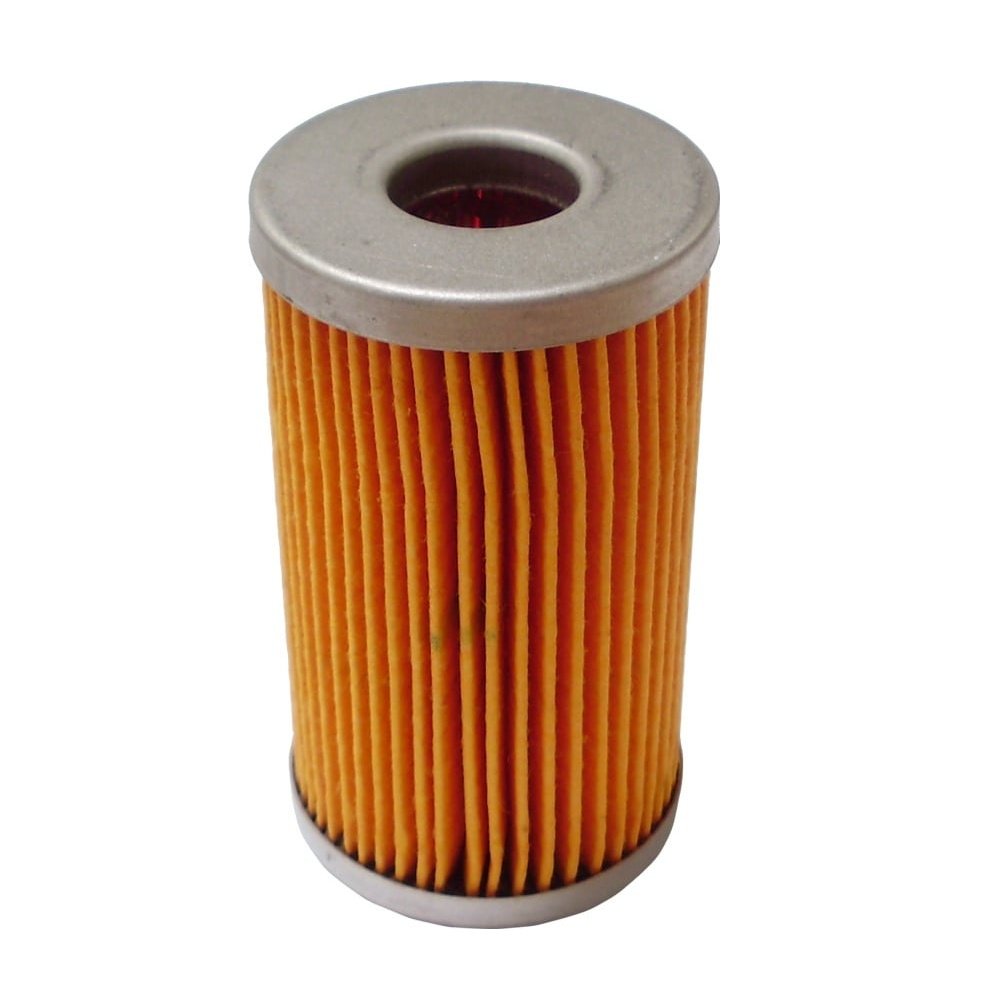

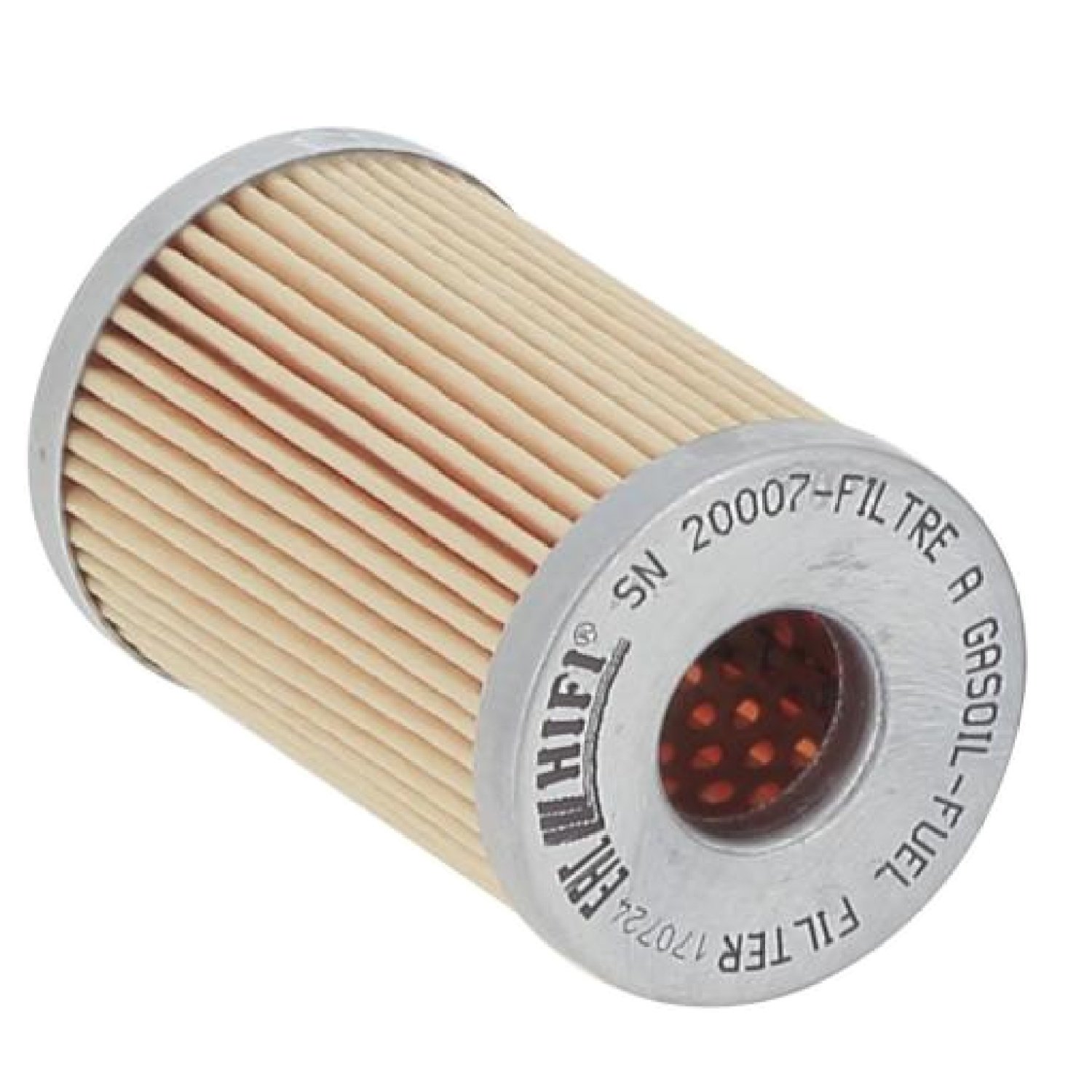

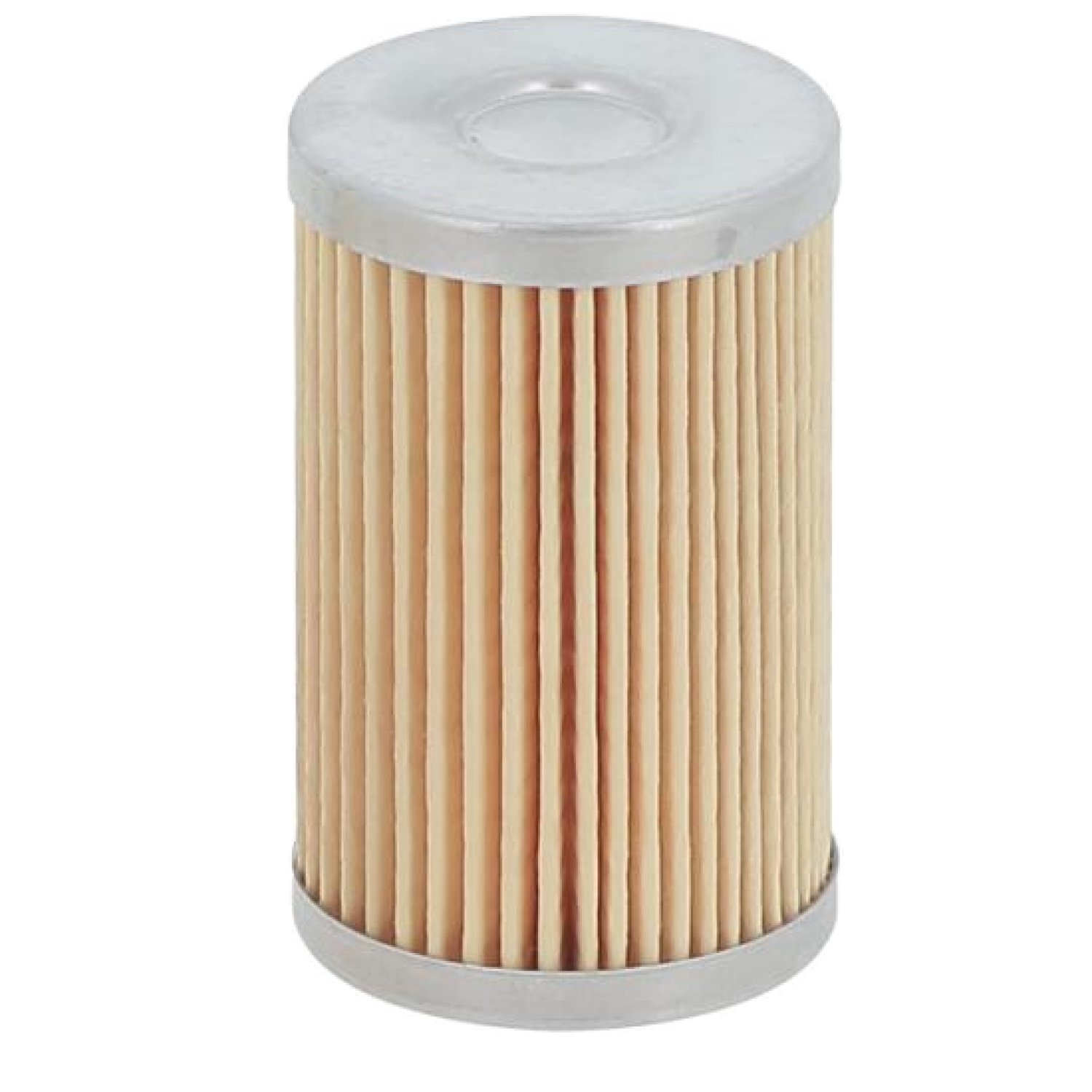

This fuel filter is a cartridge-type replacement element for Kubota diesel machinery, helping to protect the fuel system by trapping fine particles before they reach the pump and injectors. It is a non-genuine part compatible with Kubota references such as RA211-51280 and RA211-51281, and suits compact and mini excavators including KX121-3 and U35-3. Built with durable filter media and robust end caps, it supports clean, consistent fuel flow to maintain starting, performance, and engine longevity. The compact form factor (approx. Height 79 mm x Width 50 mm) fits the specified housings used on many Kubota machines. Supplied as a cartridge element for straightforward servicing, it is a practical choice where reliable filtration and easy replacement are required.
Key Features:
- Non-genuine, quality aftermarket cartridge compatible with Kubota references RA211-51280/RA211-51281
- Cartridge design for quick access and simple replacement in the existing housing
- Pleated filter media helps capture fine contaminants to protect pumps and injectors
- Durable construction aimed at consistent filtration over the service interval
- Compact size: Height 79 mm x Width 50 mm for an accurate fit in matching bowls
- Helps maintain engine efficiency, smooth running, and cold-start performance
- Suitable for a wide range of Kubota KX and U Series machines used on site or in landscaping
- Practical option for routine servicing and preventative maintenance
Typical Applications:
Used during routine services on Kubota compact and mini excavators to keep diesel clean, support reliable starting, and reduce wear on injectors and high-pressure pumps. Suited to machines working in dusty or variable-fuel environments, including construction, groundworks, plant hire, and landscaping.
Also known as:
Fuel cartridge, filter cartridge, diesel filter, fuel filter element, fuel element, diesel element, cartridge fuel element.
Fits Models:
KX101, KX101-3, KX1013, KX121, KX121-3, KX121-3R3, KX1213, KX161-3, KX161-3 R Series, KX161-3R1, KX1613, KX251, KX251 Alpha, KX251Alpha, KX35-3, KX353, KX36, KX36-3, KX363, KX41, KX41-3, KX413, KX45-3, KX453, KX61, KX61-3, KX613, KX71, KX71-3, KX713, KX91, KX91-3, KX91-3S, KX913, KX913S, U20, U20-3, U203, U25, U25-3, U253, U35, U35-3, U35-R1, U35-R2, U35-S1, U35-S2, U353, U35R1, U35R2, U35S1, U35S2, U45-3, U453, TB 210R, TB210R, KX1213R3, KX1613RSERIES, KX1613R1, KX251ALPHA
Alternate Part Numbers:
10590-G55710, 10590.G55710, RA211-51281, RA211-51280, 10590G55710, RA211.51280, RA211.51281, RA21151280, RA21151281, SN 20007, SK 3277, WGF9369, SN20007, T53215, PF7832, SK3277, 4022F, P5005
Product Specifications
| L&S Part No. | LF4022 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | F180 |
| Unit of Sale | 1 |
| Size | Height: 79mm x Width: 50mm |
| Applications | KX101, KX101-3, KX1013, KX121, KX121-3, KX121-3R3, KX1213, KX161-3, KX161-3 R Series, KX161-3R1, KX1613, KX251, KX251 Alpha, KX251Alpha, KX35-3, KX353, KX36, KX36-3, KX363, KX41, KX41-3, KX413, KX45-3, KX453, KX61, KX61-3, KX613, KX71, KX71-3, KX713, KX91, KX91-3, KX91-3S, KX913, KX913S, U20, U20-3, U203, U25, U25-3, U253, U35, U35-3, U35-R1, U35-R2, U35-S1, U35-S2, U353, U35R1, U35R2, U35S1, U35S2, U45-3, U453, TB 210R, TB210R, KX1213R3, KX1613RSERIES, KX1613R1, KX251ALPHA |
| Machine Type | Excavators |
| Fits Brands | Baldwin, Greyfriars, Kubota, Takeuchi, Thwaites, Woodgate, Yanmar |
| Fits Models | KX36 | KX36-3 | KX41 | KX41-3 | KX61 | KX61-3 | KX71 | KX71-3 | KX91 | KX101 | KX121 | U20 | U25-3 | U35 |
