Description
Overview:

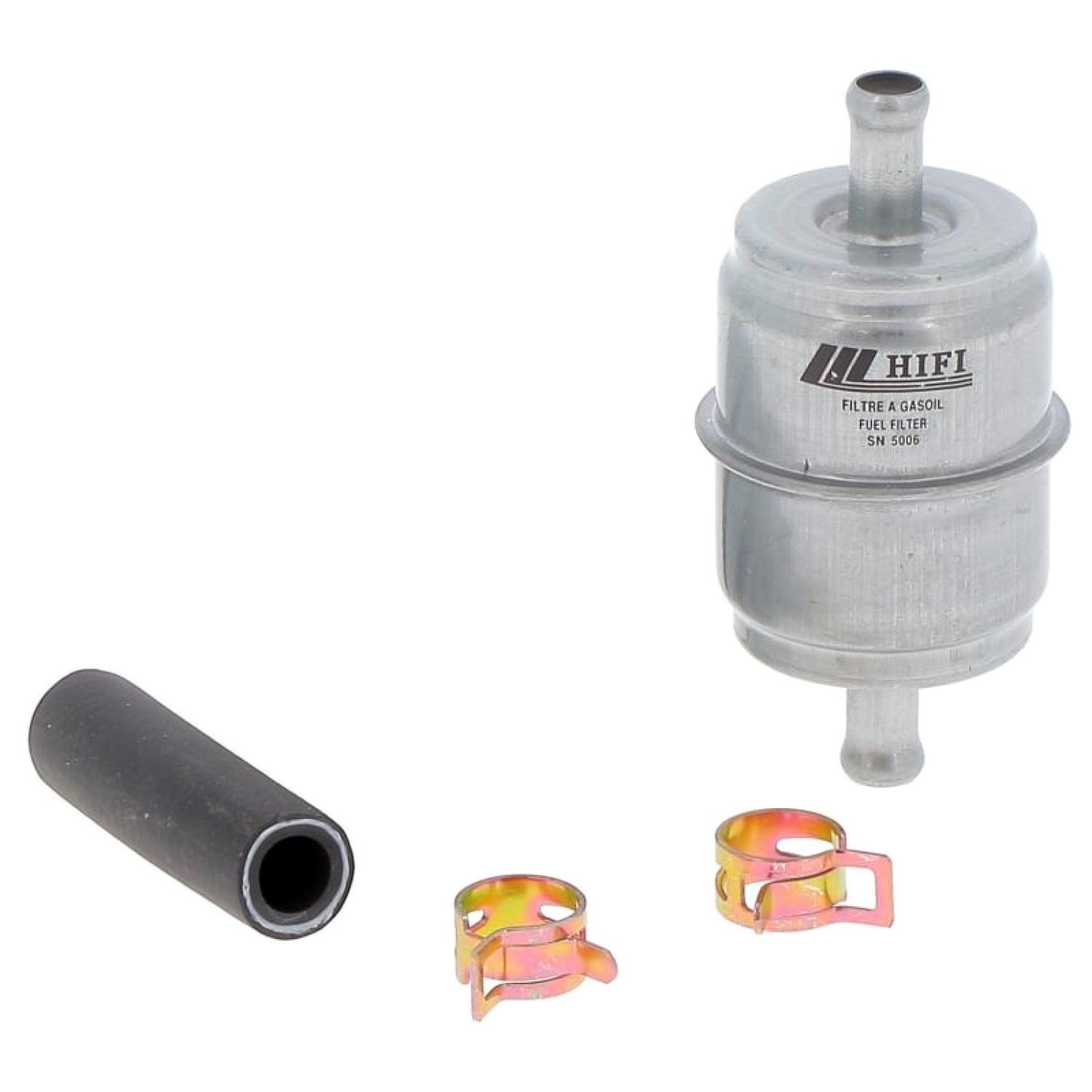

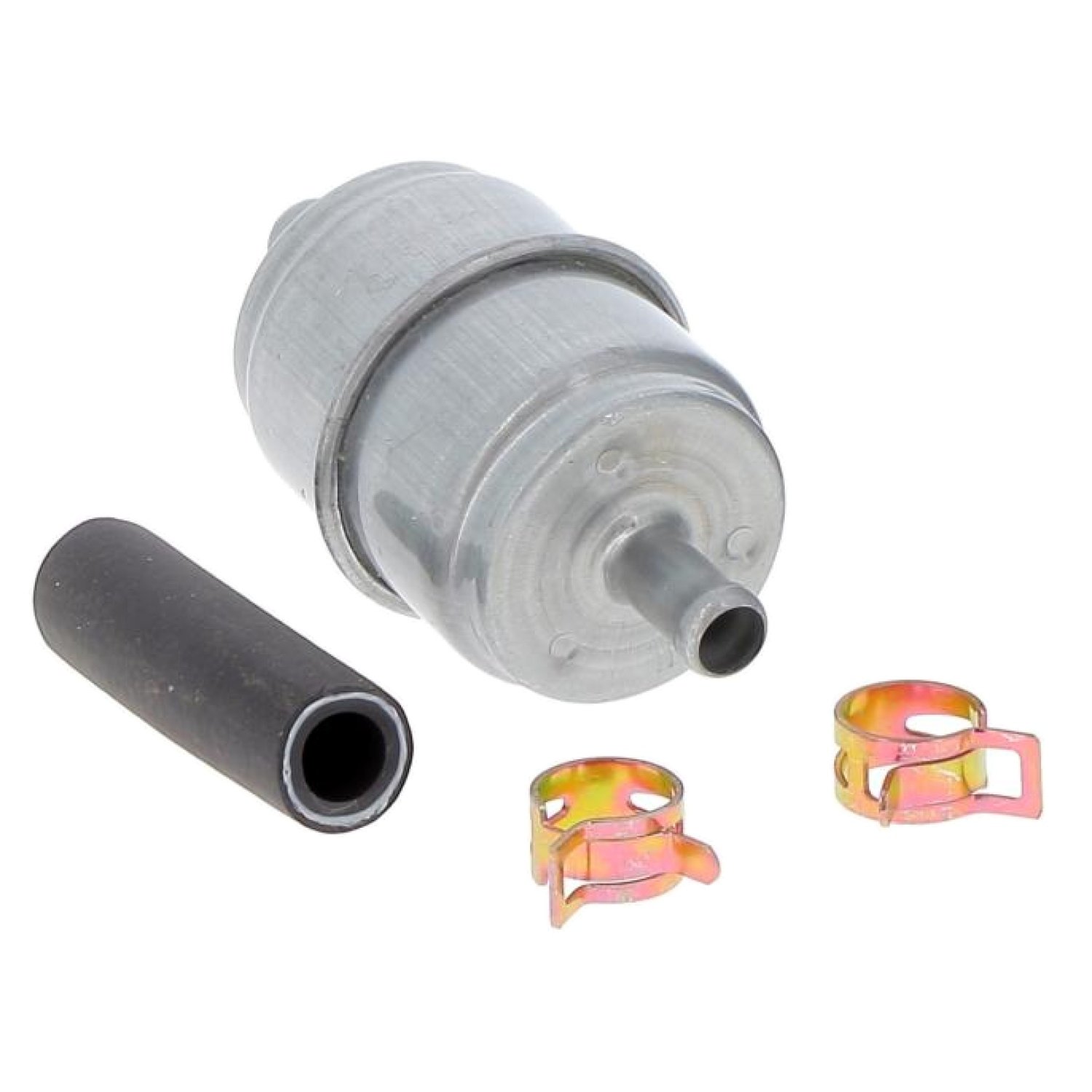

This Fuel Filter, part number LF024, is a Genuine OEM component for select John Deere, Equipment Technologies Apache, SoilMec, and Timberjack models. It functions to maintain engine performance by removing contaminants from the fuel system. This filter is typically located along the fuel line, prior to the engine, preventing particles from entering the combustion chamber.
Key Features:
- Genuine OEM part for consistent compatibility
- Compatible with multiple John Deere, Apache, SoilMec, and Timberjack models
- Essential for fuel system maintenance
- Part number LF024
- Prevents engine wear by filtering fuel contaminants
- Wide model application range
Typical Applications:
Used primarily in agricultural, construction, and forestry machines to ensure clean fuel delivery, enhancing engine efficiency and lifespan.
Also known as:
Fuel Filter, Fuel Line Filter, Cartridge Fuel Filter, Diesel Fuel Filter
Fits Models:
EQUIPEMENT TECHNOLOGIES APACHE AS 1020, APACHE AS 1220, APACHE AS 510, APACHE AS 710, APACHE AS 720, JOHN DEERE 450 K, 4730, 4830, 540 G II, 540 G III, 548 G II, 548 G III, 550 K, 622 G, 622 GP, 648 G III, 648 H, 650 K, 670 D, 672 D, 700 K, 764, 770 G, 9100, 9120, 9200, 9220, 9230, 9300, 9320, 9320T-9520T, 9330, 9400, 9420, 9430, 9430 T, 9520, 9530, 9530 T, 9620, 9630, 9630 T, F 4365, R 4040 I, R 4050 I, R 4140i, R 4150i, W 200 M, W 235, W 235 M, W 235 R, W 260 M, W 260 R, SOILMEC R 312, TIMBERJACK 360 D
Alternate Part Numbers:
11787709, 1304634, 149-2441, 163000 A, 1637835, 18-7831, 201450290, 2740940, 33003, 68210, A 048W352, AT 101505, AT 101565, BF 836, FF 5006, FS-1904, J/E 398319, MDF 83, MDF 8300, P 55-0090, S.109050, SB 2769, SY 97412, WFI 33276
Product Specifications
| L&S Part No. | LF024 |
|---|---|
| Part Type | Non Genuine Part |
| Fits Brands | EQUIPEMENT TECHNOLOGIES, JOHN DEERE, SOILMEC, TIMBERJACK |
| Key Features | - Genuine OEM fuel filter, SKU: LF024 - Fits Equipment Technologies, John Deere, Soilmec, Timberjack models - Replaces multiple OEM part numbers - Designed for fuel filtration applications - Compatible with various heavy-duty machinery |

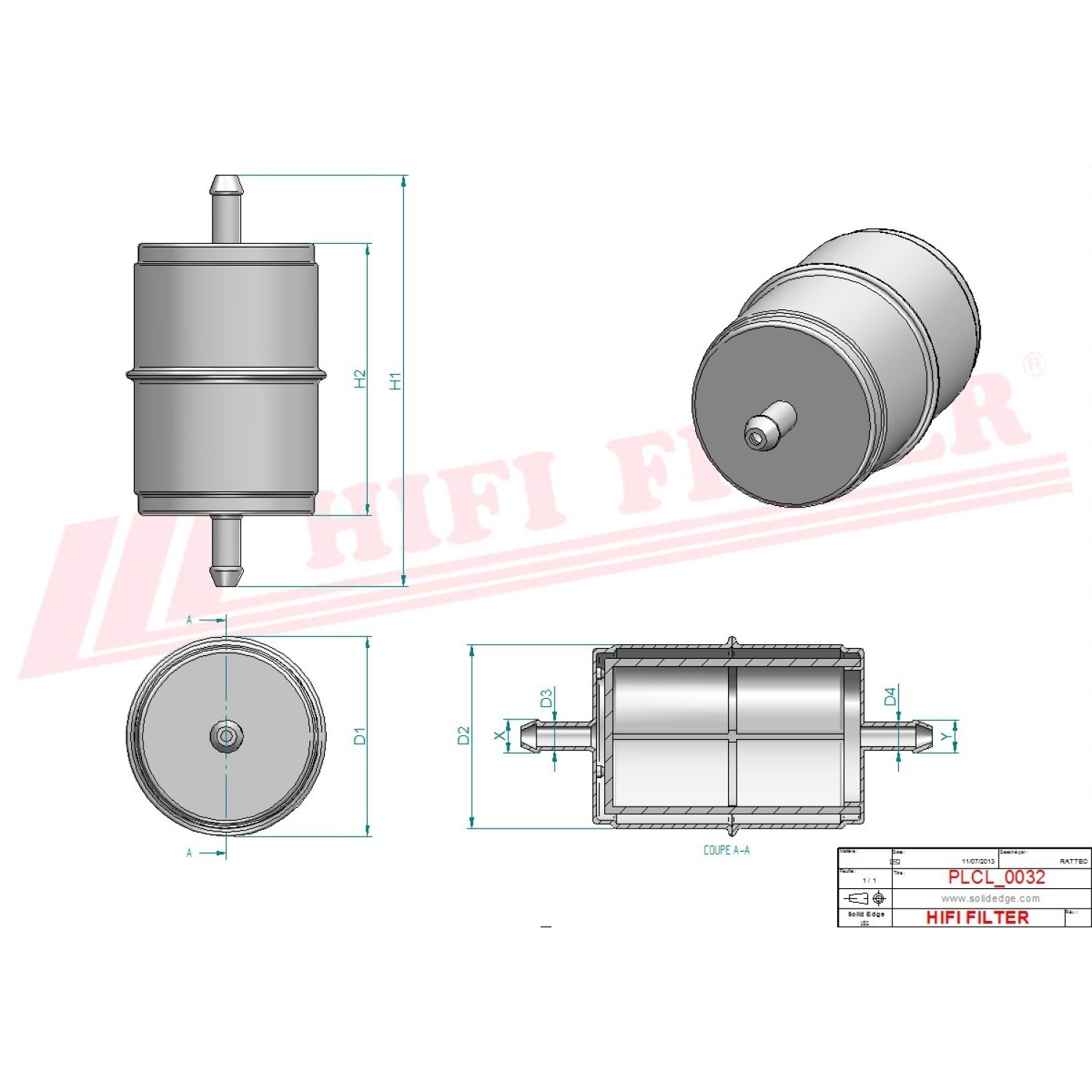

| Filter Specifications | D1: 49mm D2: 44mm D3: 10mm H1: 96mm H2: 57mm |
