Description
Overview:

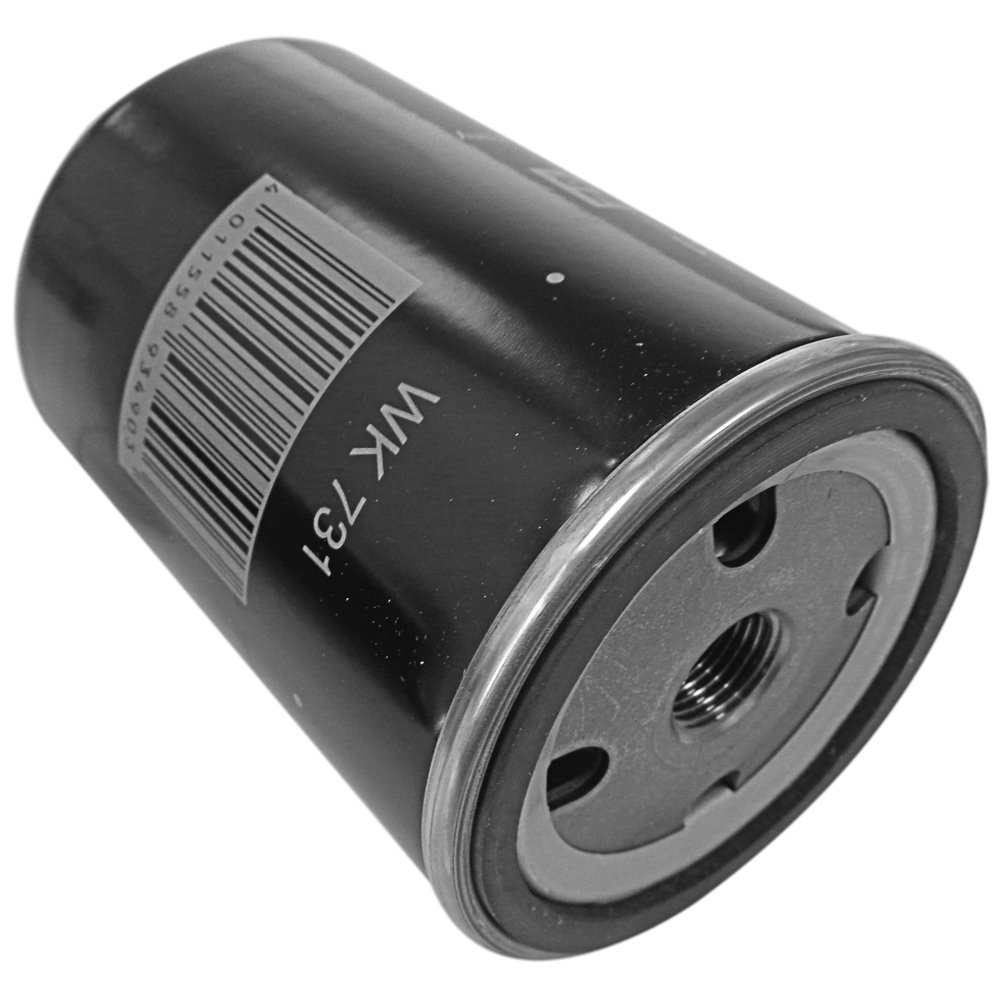

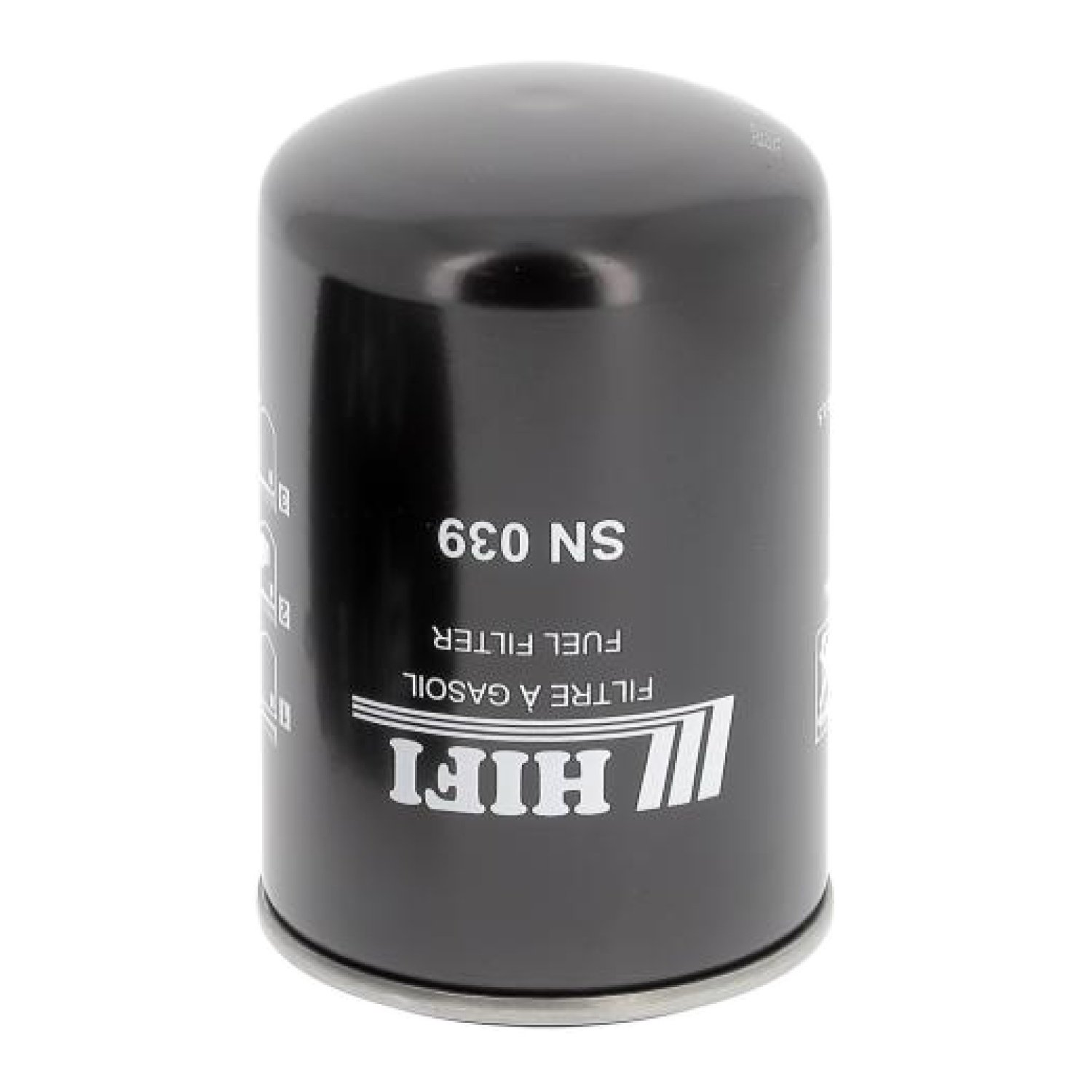

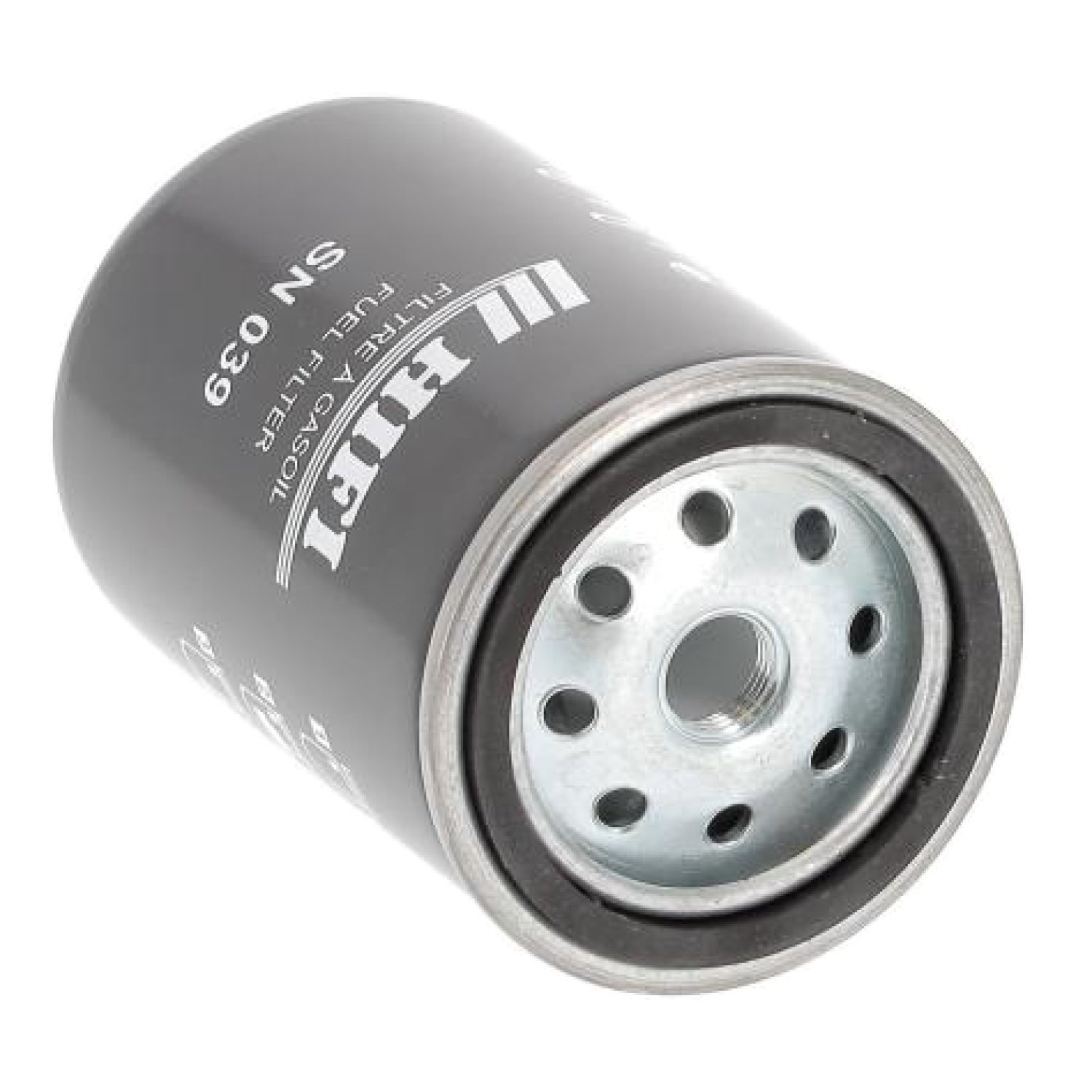

This spin-on fuel filter is a non-genuine aftermarket replacement for Volvo 241672, built for dependable fuel cleanliness in diesel-powered construction and garden machinery. The robust steel canister with a corrosion‐resistant finish houses high‐efficiency filtration media to protect pumps and injectors from particulate and water contamination. With compact dimensions of 122 mm x 76 mm (4.8 in x 3.0 in) and an M16 x 1.5 thread, it is easy to fit in tight engine bays and suits a wide range of plant and equipment. Ideal for machinery from brands such as Deutz and Iveco, it supports reliable running, stable idling, and reduced wear. The simple spin‐on form allows quick, clean servicing with minimal downtime, making it suitable for fleets and single machines alike, including models like EC230 and EC299.
Key Features:
- Non-genuine replacement compatible with Volvo 241672 for cost‐effective maintenance
- Spin-on design for quick, clean changes without special tools
- Dimensions 122 mm x 76 mm (4.8 in x 3.0 in) for compact fitment
- M16 x 1.5 thread for common diesel fuel heads on plant equipment
- Durable steel canister with corrosion‐resistant coating
- Efficient media helps protect injectors and pumps by trapping contaminants
- Supports smooth starting, stable idle, and consistent engine performance
- Suitable for mixed fleets including Deutz, Iveco, Samsung, Schaeff, Volvo, and Yuchai
- Reliable sealing to reduce the risk of leaks when correctly installed
- Practical choice for scheduled servicing and preventative maintenance
Typical Applications:
Used on diesel plant such as excavators, wheeled excavators, rollers, graders, pavers, dumpers, and generators. Helps maintain clean fuel delivery in site conditions with dust, vibration, and variable fuel quality. Suitable for owner‐operators and fleet maintenance where quick turnaround and consistent filtration are required.
Also known as:
Spin‐on diesel fuel filter, screw‐on fuel filter, canister fuel filter, replacement fuel element, aftermarket cross‐reference filter for 241672.
Fits Models:
BW 177 DH 4, BW 213 D 3, BW 216 D DH3, BW 219 PDH3, BW 229 D 3, 520 D DS, 2522 D DS, 2620 D, 2622 DS, 3625, 4010 D, 4111, DV 6 K, GRW 10, GRW 15, GRW 15 3, GRW 18, EC 229, EC 230, EC 230B, EW 230B, EC 280, EC 299, EC 300, EC 340, EC 390, EC 420, EC 450, EC 620, EC 650, BW177DH4, BW213D3, BW216DDH3, BW219PDH3, BW229D3, 520DDS, 2522DDS, 2620D, 2622DS, 4010D, DV6K, GRW10, GRW15, GRW153, GRW18, EC229, EC230, EC230B, EW230B, EC280, EC299, EC300, EC340, EC390, EC420, EC450, EC620, EC650
Alternate Part Numbers:
AC Delco PF961, TP943, TP961, XD25, Agco 3029849, 312795397, 31-2795397, CM3931063, Akerman 16496, 23121, Alco MD871, SP821, SP-821, SP871, Allis Chalmers 61142392, 61142397, 61674455, 99100083, Ammann 1947561, 1-947561, 49501000016, 4-9501000016, AP Lockheed AP1081, AP3223, APF3197A
Product Specifications
| L&S Part No. | LF861 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | S472 |
| Unit of Sale | 1 |
| Size | Size: 122 x 76 x 76mm x Thread: M16-1.5 |
| Applications | BW 177 DH 4, BW 213 D 3, BW 216 D DH3, BW 219 PDH3, BW 229 D 3, 520 D DS, 2522 D DS, 2620 D, 2622 DS, 3625, 4010 D, 4111, DV 6 K, GRW 10, GRW 15, GRW 15 3, GRW 18, EC 229, EC 230, EC 230B, EW 230B, EC 280, EC 299, EC 300, EC 340, EC 390, EC 420, EC 450, EC 620, EC 650, BW177DH4, BW213D3, BW216DDH3, BW219PDH3, BW229D3, 520DDS, 2522DDS, 2620D, 2622DS, 4010D, DV6K, GRW10, GRW15, GRW153, GRW18, EC229, EC230, EC230B, EW230B, EC280, EC299, EC300, EC340, EC390, EC420, EC450, EC620, EC650 |
| Machine Type | Excavators, Loaders |
| Fits Brands | Alco Filters, Baldwin, Bomag, Deutz, Donaldson, Fiaam, Fleetguard, Greyfriars, Hamm, Iveco, Mann & Hummel, Samsung, Schaeff, Schuup, Sure, Volvo, Woodgate, Yuchai |
