Description
Overview:
The Fuel Filter, Spin-On (SKU: LF837), is a Genuine OEM part designed to replace Baldwin BF1226. It features a physical dimension of 142 x 76mm, suitable for Compair machinery. This filter is crucial for trapping contaminants from the fuel, ensuring clean fuel enters the engine. Compatible with multiple models, including Compair 200, Case 580 Super L, and Hyundai R290LC-7, it sits within the fuel system of these heavy-duty machines.
Key Features:
- Spin-On design allows for straightforward maintenance
- Dimensions: 142 x 76mm
- Genuine OEM replacement
- Direct replacement for Baldwin BF1226
- Compatible with a wide range of machinery models
Typical Applications:
Used in fuel systems of construction and agricultural machinery, the filter removes particulates and contaminants from diesel engines.
Also known as:
Fuel Separator, Fuel System Filter.
Fits Models:
100ROZ, 1150E, 1155E, 1188 PI Plus, 1188 Plus, 1318, 1318C, 1418, 1418C, 1420, 1718, 1718C 6 Cyl, 1721C, 180LC3, 180NLC-3 116bhp, 180NLC3, 1825B, 1838, 1840, 1845C.
Alternate Part Numbers:
ABP/N10G-FS1251, 8.312.999.349.0, 831-299-9349-0, 8.312.999.3490, ABPN10GFS1251, MAT-CZZ-02089, 6733-71-9110, MCW X3056608, 6732.71.6310, 6732-71-6310, ZINGAP177014, AWD A4027606, 6738-71-9110, 9.414.101067, E 537 A 0016, FIN-FF30443.
Product Specifications
| L&S Part No. | LF837 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Size | Size: 142 x 76 x 76mm x Thread: M16-1.5 |
| Fits Brands | Baldwin, Case, Coopers, Crosland, Cummins, Dynapac, Fleetguard, Fram, Greyfriars, HIFI, JCB, Komatsu, L.D.V, Mann & Hummel, Sakura, Schuup, Sure, Woodgate |
| Key Features | - Spin-on fuel filter dimensions: 142mm x 76mm - Replaces Baldwin BF1226 filter - Compatible with multiple Compair models - Genuine OEM part for assured fit and quality - Multiple OEM part numbers available for cross-reference |

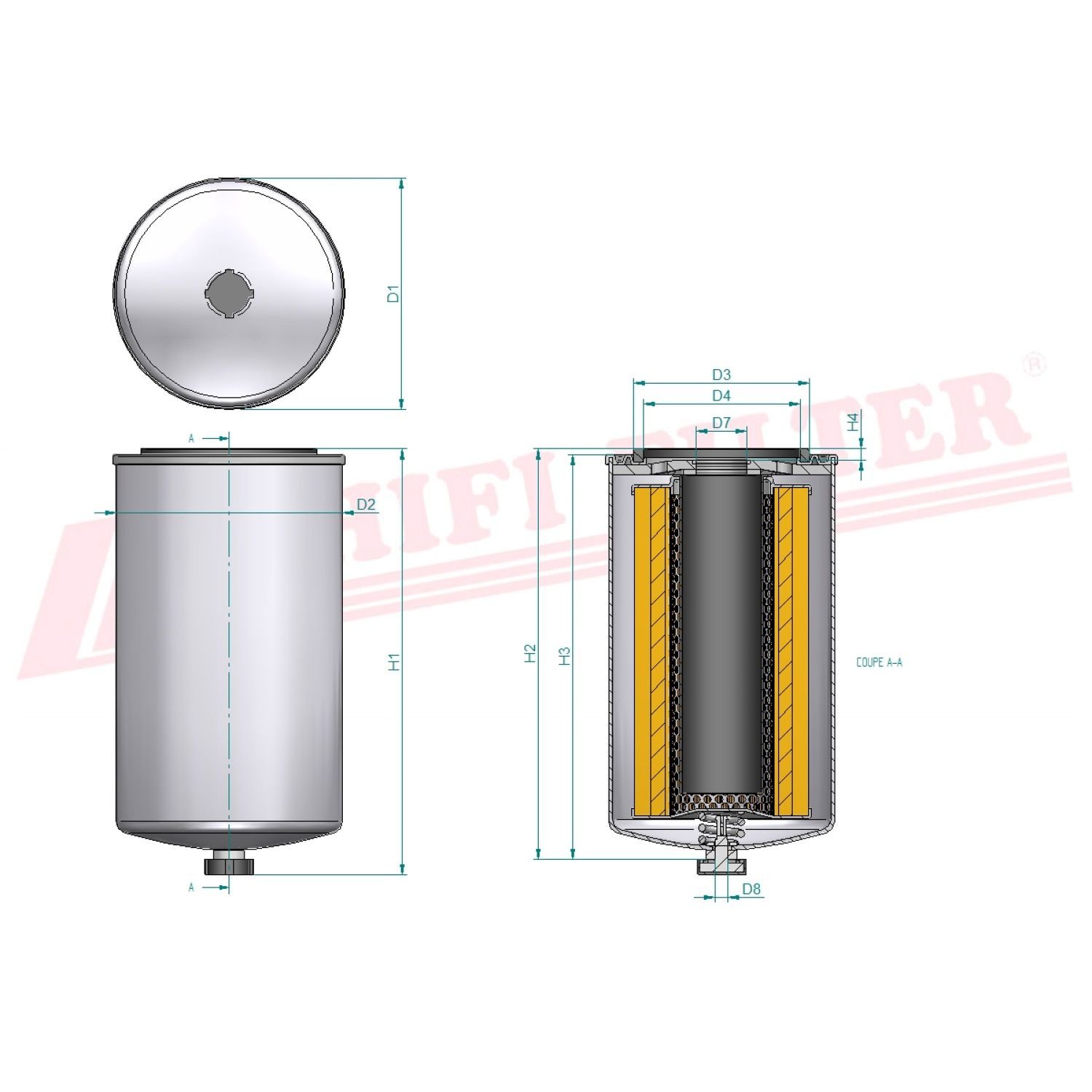

| Filter Specifications | D1: 77mm D2: 77mm D3: 70mm H1: 129mm H2: 111mm H3: 110mm Thread: 9/16"-12 Thread: M16X1,5 Check valve: 1 |
| Fits Models | 804 | 320 | E14 |
