Description
Overview:

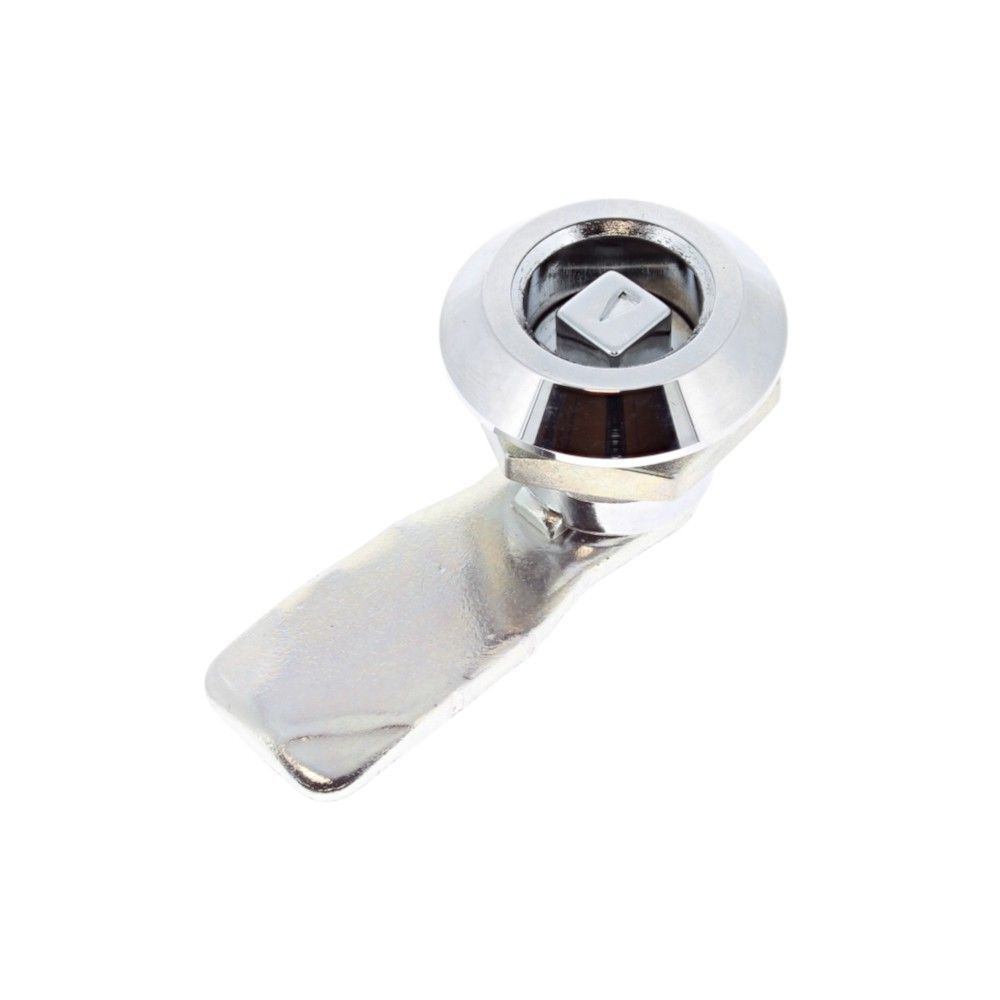

This quarter turn latch and cam (MPN 800 1274) is a compact fastening solution for vehicle bodies and equipment enclosures where a quick, positive close is required. The housing is manufactured from zinc die-cast with a durable chrome plated finish, providing a robust build suitable for demanding use on commercial vehicles and plant. It features an 18 mm (0.71 in) body length to suit shallow door sections and a standard 8 mm (0.31 in) square drive insert for operation with a matching square key or driver. Installation is via a 22 mm (0.87 in) round panel cut-out, making it straightforward to retrofit in common knockouts. Supplied with a cam, the mechanism provides a simple quarter-turn action to engage behind the panel or frame, securing doors, hatches or access panels on a wide range of transport and equipment applications.
Key Features:
- Zinc die-cast housing for durability
- Chrome plated finish for corrosion resistance and a clean appearance
- Body length: 18 mm (0.71 in)
- Insert: 8 mm (0.31 in) square drive
- Panel cut-out: 22 mm (0.87 in) round
- Quarter-turn operation for quick engagement and release
- Supplied with cam for panel or frame retention
- Suited to vehicle bodies, cabinets and equipment enclosures
- Compact format for use in shallow door sections
Typical Applications:
Used on trucks, trailers and buses for access doors and lockers; on generator sets and plant enclosures for service panels; and on horseboxes, cabs, cabinets and catering vehicle compartments where a simple quarter-turn cam latch is required to secure a panel or door.
Also known as:
Cam latch, Quarter-turn fastener, Square drive latch, Panel latch, Enclosure latch
Product Specifications
| L&S Part No. | 800 1274 |
|---|---|
| Unit of Sale | 1 |
