Description
Overview:

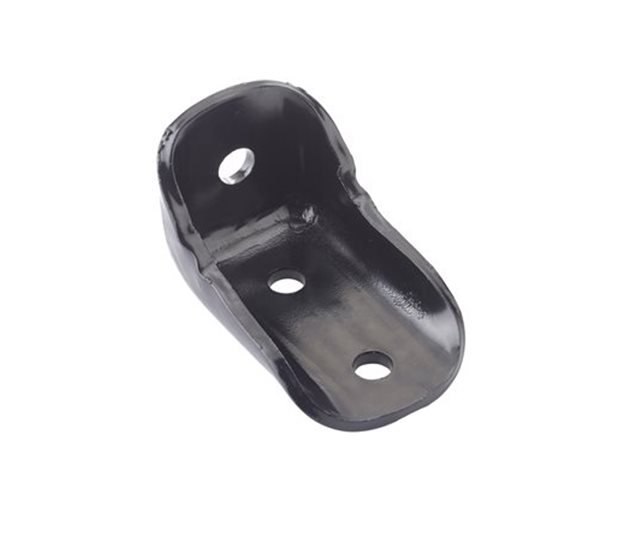

This Pressed Steel Body Mounting Bracket (MPN 800 1325) is a universal bracket for securing vehicle bodies to chassis members on commercial vehicles. Formed from mild steel for strength and rigidity, it is finished in a durable black powder coat to help resist corrosion and abrasion in service. The bracket measures 95 mm long x 61 mm wide x 61 mm high (3.74 x 2.40 x 2.40 in) with a 5.5 mm (0.22 in) material thickness. It provides two 11 mm (0.43 in, approx 7/16 in) round fixing holes and one 12 mm (0.47 in, approx 1/2 in) slotted fixing to allow adjustment during installation. Suitable for use on a variety of trucks and trailers, it is intended for chassis with approximately 100 mm runners. A practical choice for new build, refit and service replacement work where a compact, pressed bracket is required.
Key Features:
- Universal body mounting bracket for chassis applications
- Pressed mild steel construction for durability
- Black powder coated finish for corrosion resistance
- Overall size: 95 x 61 x 61 mm (3.74 x 2.40 x 2.40 in)
- Plate thickness: 5.5 mm (0.22 in)
- Fixings: 2 x 11 mm round holes (approx 7/16 in)
- Additional fixing: 1 x 12 mm slotted hole (approx 1/2 in)
- Suits chassis runners around 100 mm
- Suitable for trucks and trailers
Typical Applications:
Used to mount or support body structures to the chassis on trucks and trailers, including general bodywork, conversions and repairs where a compact pressed bracket with standard 11-12 mm fixings is required. Suitable for fleet maintenance and bodybuilder use on vehicles with approximately 100 mm chassis runners.
Also known as:
Body mount bracket
Chassis body bracket
Body mounting pedestal
Body to chassis bracket
Pressed body bracket
Product Specifications
| L&S Part No. | 800 1325 |
|---|---|
| Unit of Sale | 1 |
