Description
Overview:

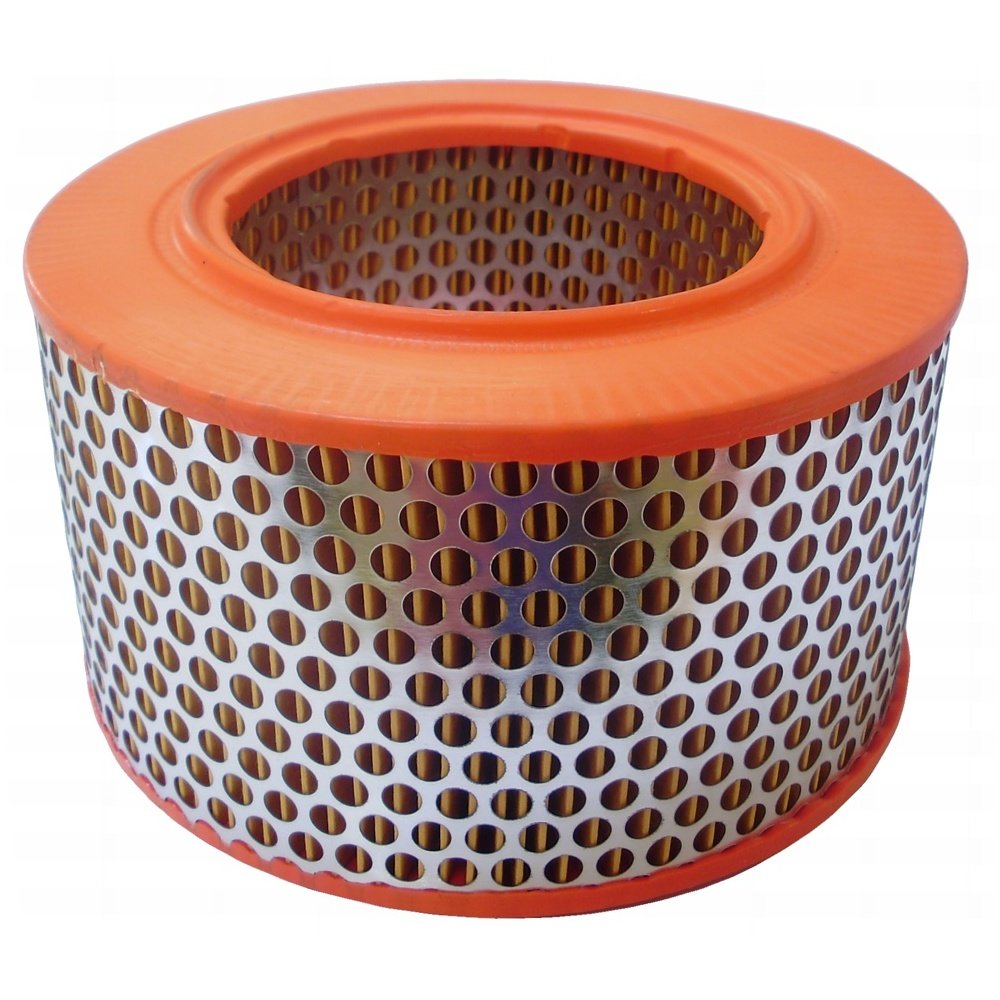

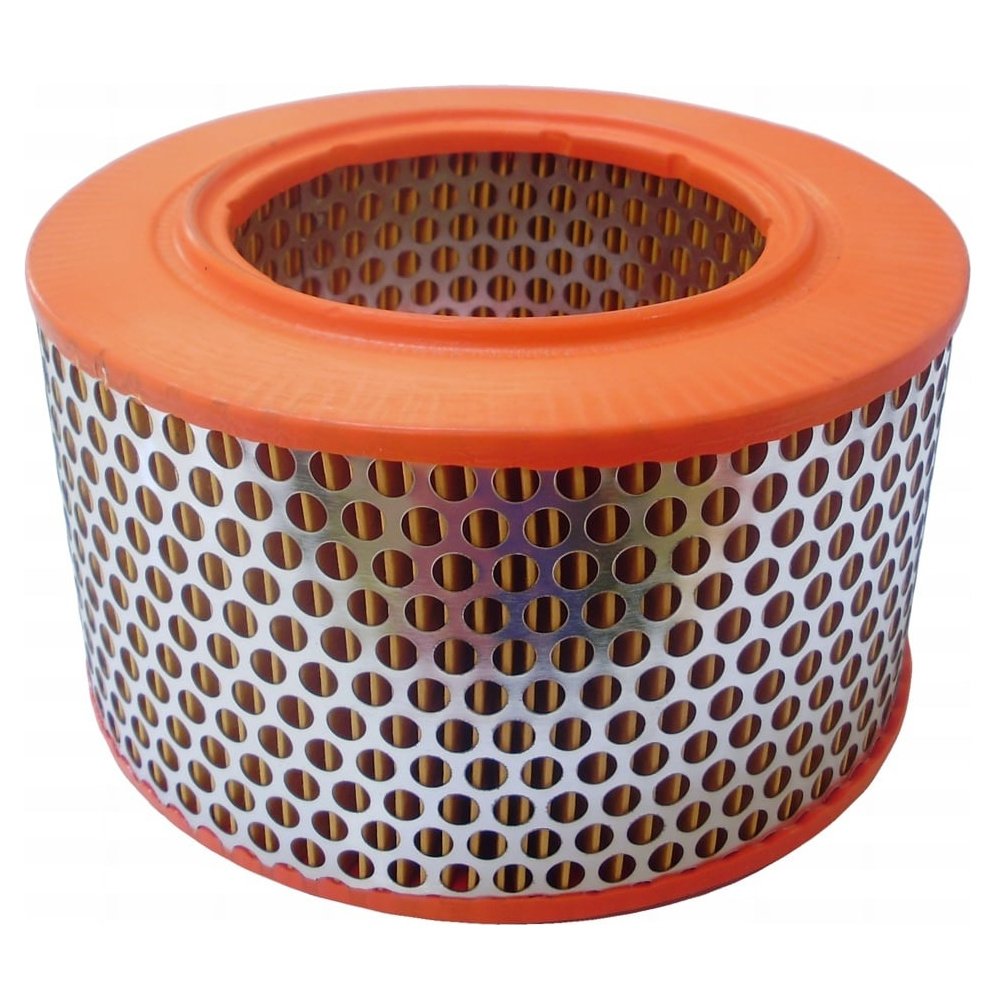

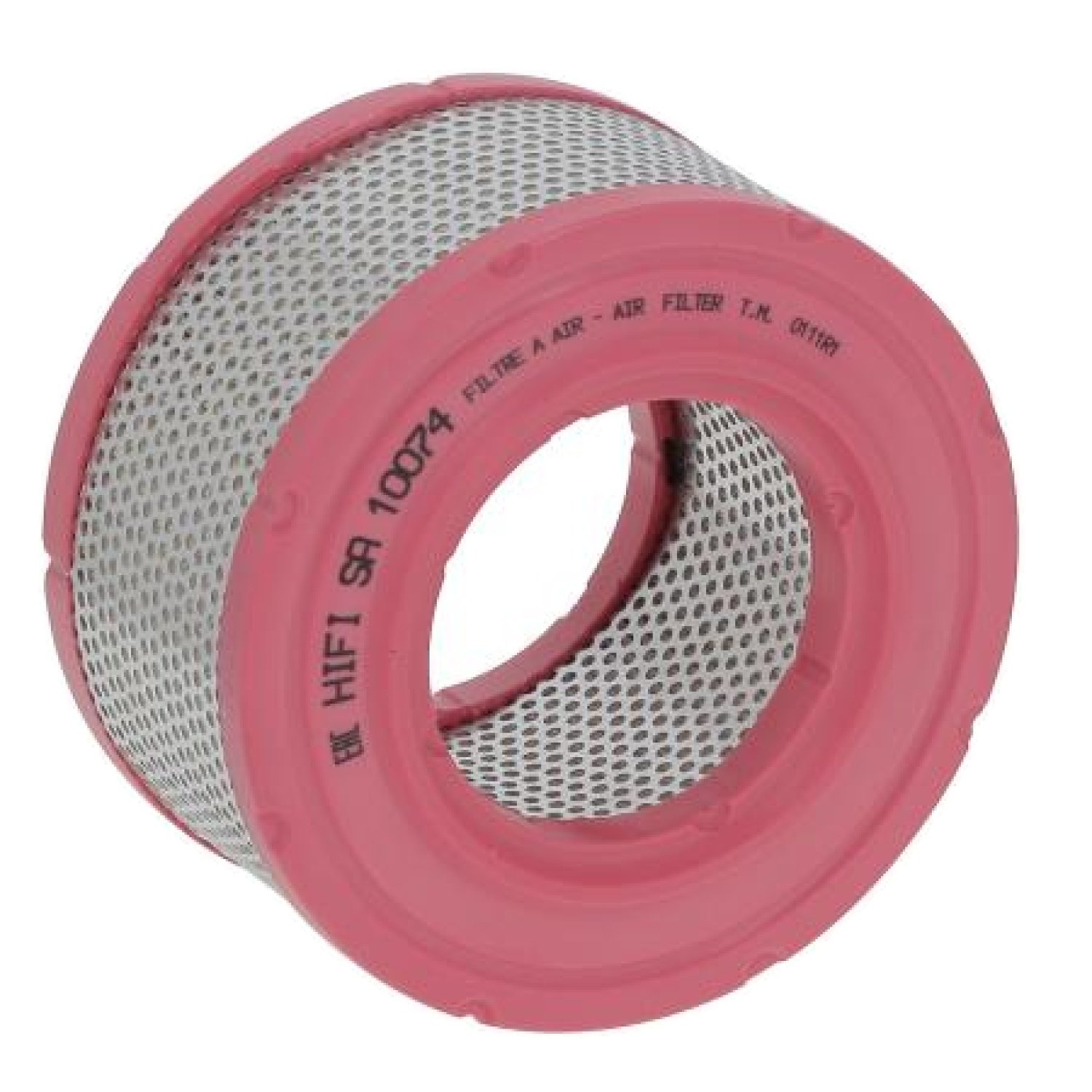

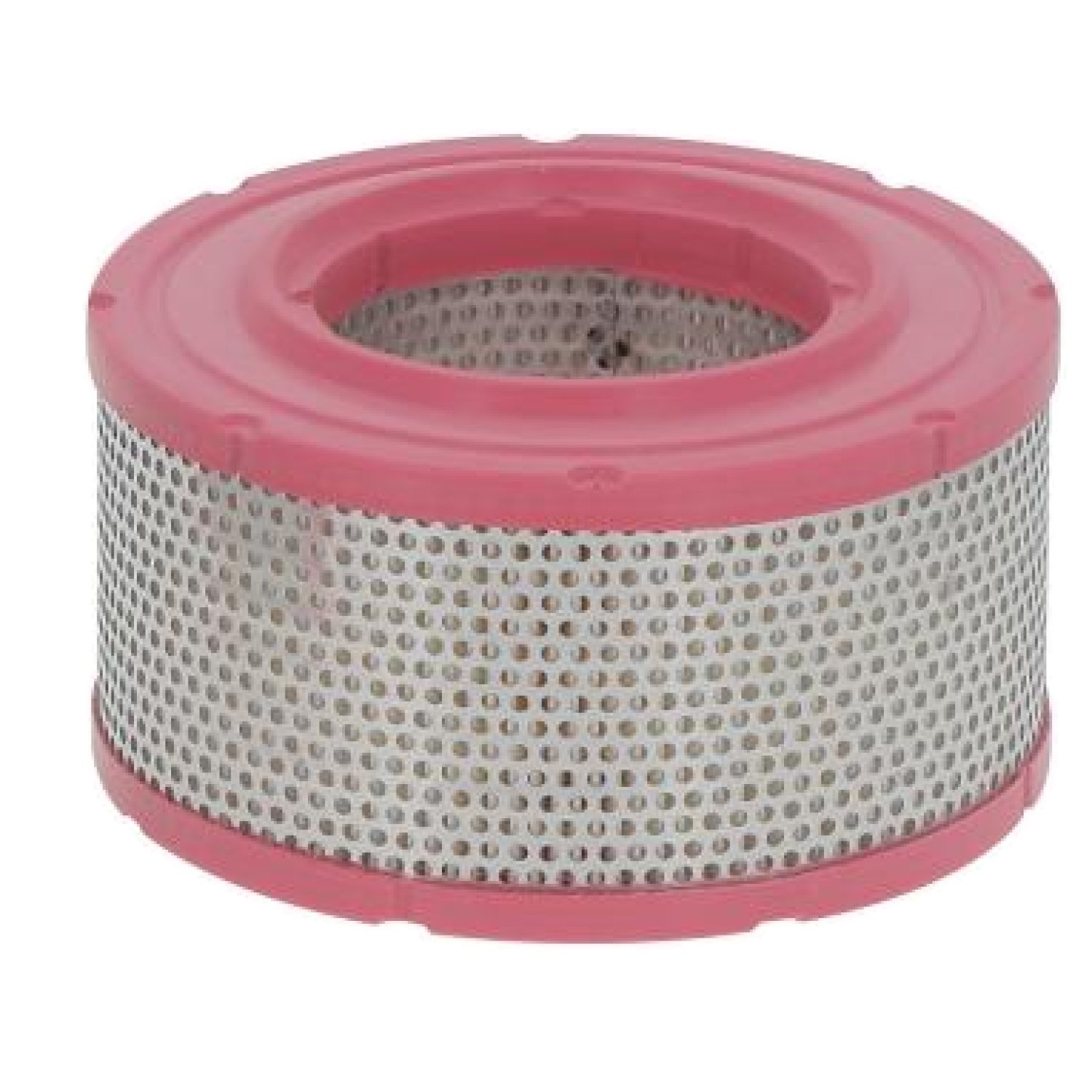

This non-genuine replacement air filter is designed for Hatz 1D, L, H, M, E and Z Series air-cooled diesel engines. It protects the engine by filtering dust and debris from the intake air, helping maintain power and reduce wear. The element is a cylindrical cartridge with durable pleated filter media supported by a protective mesh and moulded end caps for a reliable seal. Key dimensions for checking fit are: height 92 mm (3.62 inches), outer diameter 165 mm (6.50 inches), and inner diameter 90 mm (3.54 inches). Suitable for many compactors, rollers and other plant using Hatz engines, including popular models such as the 1D50 and 2L30. This is a non-genuine replacement part, supplied for routine maintenance and straightforward like-for-like servicing.
Key Features:
- Non-genuine replacement part compatible with Hatz 1D, L, H, M, E and Z Series engines
- Helps maintain engine performance by delivering clean intake air and reducing abrasive wear
- Robust pleated filter media with mesh support for strength and consistent filtration
- Moulded end caps for dependable sealing in the air box
- Dimensions for verification: Height 92 mm (3.62 inches), OD 165 mm (6.50 inches), ID 90 mm (3.54 inches)
- Quick to fit; designed for a direct swap during routine services
- High dust-holding capacity for use on construction and landscaping sites
- Supports better fuel efficiency and smoother running by protecting cylinders and valves
- Suitable for regular maintenance intervals on plant and equipment
- Compatible with a wide range of Hatz-powered machines across compaction, power and hydraulics
Typical Applications:
Used on plate compactors, trench rollers, tandem rollers, generators, pumps and other light plant powered by Hatz engines. Ideal for construction, civils, road maintenance, hire fleets and landscaping where airborne dust is common. Fits engine housings on machines operating in quarries, building sites and highways work to keep intake air clean and equipment reliable.
Also known as:
Engine air cleaner element, intake air filter cartridge, primary air filter element, air intake cartridge, engine intake filter, paper filter element, dust filter element.
Fits Models:
1D50, 1D60, 1D80, 1D81, 1D85Z, 2L30, 2L40C, 2M40, 3L30, 3L40C, 3L40S, 3L40Z, 3M40, 4L30, 4M40, D108, E108, E950, Supra 1D41S, Supra1D41S, TV800, V108, Z108, Z782, Z788, Z789, Z790, APH, APH 6020, APH 6530, APH 7010, AVH, AVH 1000 TC, AVH 6010, AVH 6020, AVH 6020 DHDE, AVH 6030, AVH 8020 DE, AVH 8050, DVH 5010, DVH 6010, DTV 222, DTV 472, 120 DA PLUS, 120 DH PLUS, 150 DA 4x4, 150 DG PLUS 4x4, 150 RMG, 175 RMS, D 150 RM, TV 800, BW 80 AD, BW 80 ADH 2, BW 90 A AD, BW 101 A, APH6020, APH6530, APH7010, AVH1000TC, AVH6010, AVH6020, AVH6020DHDE, AVH6030, AVH8020DE, AVH8050, DVH5010, DVH6010, DTV222, DTV472, 120DAPLUS, 120DHPLUS, 150DA4X4, 150DGPLUS4X4, 150RMG, 175RMS, D150RM, BW80AD, BW80ADH2, BW90AAD, BW101A, SUPRA1D41S
Alternate Part Numbers:
86-90000-01, 86.90000.01, 869000001, 14930000, SA 10074, SL 8589, 5722715, 1493000, SA10074, SL8589, MD-714, MD.714, C1776, MD714, 1521A, A1056
Product Specifications
| L&S Part No. | LA1521 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | A1056 |
| Unit of Sale | 1 |
| Size | 165mm x 165mm x 92mm |
| Applications | 1D50, 1D60, 1D80, 1D81, 1D85Z, 2L30, 2L40C, 2M40, 3L30, 3L40C, 3L40S, 3L40Z, 3M40, 4L30, 4M40, D108, E108, E950, Supra 1D41S, Supra1D41S, TV800, V108, Z108, Z782, Z788, Z789, Z790, APH, APH 6020, APH 6530, APH 7010, AVH, AVH 1000 TC, AVH 6010, AVH 6020, AVH 6020 DHDE, AVH 6030, AVH 8020 DE, AVH 8050, DVH 5010, DVH 6010, DTV 222, DTV 472, 120 DA PLUS, 120 DH PLUS, 150 DA 4x4, 150 DG PLUS 4x4, 150 RMG, 175 RMS, D 150 RM, TV 800, BW 80 AD, BW 80 ADH 2, BW 90 A AD, BW 101 A, APH6020, APH6530, APH7010, AVH1000TC, AVH6010, AVH6020, AVH6020DHDE, AVH6030, AVH8020DE, AVH8050, DVH5010, DVH6010, DTV222, DTV472, 120DAPLUS, 120DHPLUS, 150DA4X4, 150DGPLUS4X4, 150RMG, 175RMS, D150RM, BW80AD, BW80ADH2, BW90AAD, BW101A, SUPRA1D41S |
| Machine Type | Engines |
| Fits Brands | Alco Filters, Ammann, Ausa, Benford, Bomag, Greyfriars, Hatz, Mann & Hummel |
