Description
Overview:

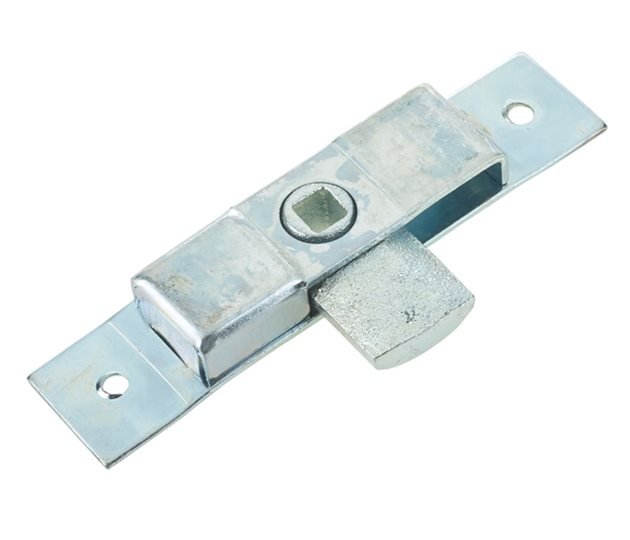

Budget Lock, Universal 125.5mm, Zinc Plated, Malleable Iron Tongue (MPN 800 1058) is a universal-pattern panel lock built for service doors, lockers and access covers on commercial vehicles and equipment. It combines a zinc plated, clear passivated pressed mild steel casing with a zinc plated malleable iron tongue for a robust and corrosion-resistant assembly. The lock measures 125.5 mm (4.94 in) across the width, with a compact 27 mm (1.06 in) length and 13 mm (0.51 in) thickness to suit shallow door constructions and confined spaces. An 8.5 mm (0.33 in) square operates the mechanism, and installation is via countersunk fixings sized for Ø5 mm (0.20 in) screws or rivets. Designed for dependable everyday service, it is commonly specified on truck and trailer bodywork, van conversions, bus interiors, plant transport equipment and site enclosures, as well as industrial and building access panels and boiler housings where a simple, durable locking action is required.
Key Features:
- Universal budget lock with pressed mild steel casing
- Zinc plated, clear passivated finish for corrosion resistance
- Malleable iron tongue, zinc plated for added durability
- Overall width: 125.5 mm (4.94 in)
- Body length: 27 mm (1.06 in)
- Body thickness: 13 mm (0.51 in)
- Square: 8.5 mm (0.33 in) operation interface
- Fixing: Ø5 mm (0.20 in) countersunk holes
- Material: Mild steel case with malleable iron tongue
- Type: Universal pattern suitable for a wide range of panels
Typical Applications:
Used on body access doors and service panels across trucks, trailers, vans and buses. Also fitted to plant transport equipment, industrial access panels and boiler housings where a compact, universal budget lock is needed for routine latching and security.
Also known as:
Budget panel lock; Budget tongue lock; Square-key lock; Universal budget latch; Pressed steel budget lock
Product Specifications
| L&S Part No. | 800 1058 |
|---|---|
| Unit of Sale | 1 |
