Description
Overview:

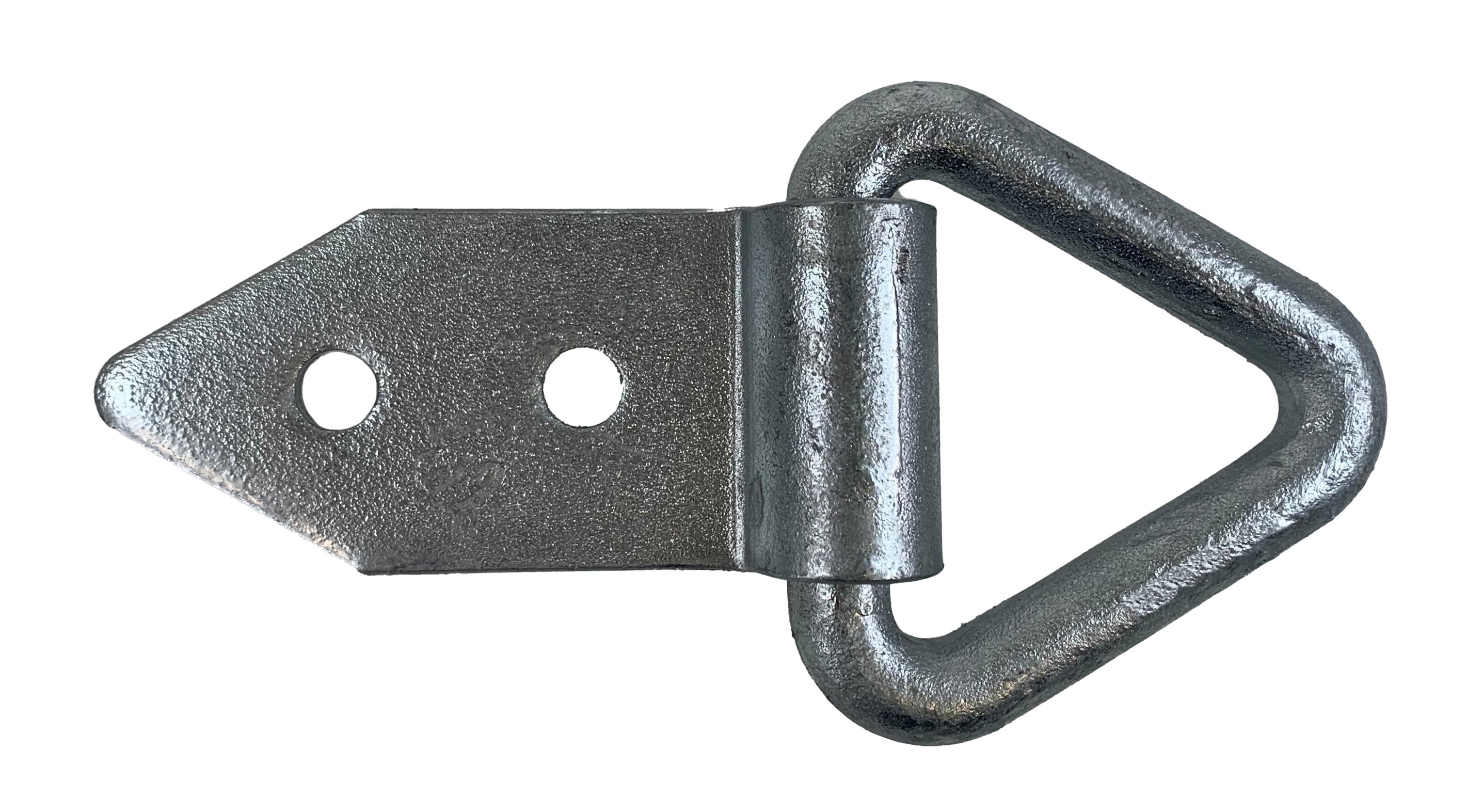

The Bolt-On Triangular Lashing Ring, Heavy Duty, Galvanised, 1 Tonne (MPN 763 344) is a robust tie-down point for trailers, vans and plant transport. It consists of a galvanised steel backing plate with a forged triangular steel ring, providing a durable anchoring point for ratchet straps, ropes or chains. The assembly is designed to bolt onto trailer floors, crossmembers, side rails or bulkheads to create a dependable load restraint point. The ring section is 10 mm in size (approx. 0.39 in), giving a sturdy profile for repeated use in harsh environments. With a rated load capacity of 1 tonne (1,000 kg / 2,204 lb), it suits general load securing on plant carriers, flatbeds, tippers, dropsides and utility trailers. The hot-dip style galvanised finish offers good corrosion resistance for long service life in outdoor and on-site conditions.
Key Features:
- Heavy-duty bolt-on lashing point for trailers and commercial vehicles
- Rated load capacity: 1 tonne (1,000 kg / 2,204 lb)
- Galvanised steel plate for corrosion resistance
- Forged triangular steel ring for strength and durability
- 10 mm section size (approx. 0.39 in) for a solid, wear-resistant ring
- Suitable for use with ratchet straps, webbing, rope or chain
- Simple bolt-on installation to timber or steel structure (fixings not included)
- Plain, low-maintenance design for trade and fleet applications
Typical Applications:
Used as a tie-down anchor on trailer beds, side rails and bulkheads across plant transporters, flatbeds, car transporters, tippers, dropsides, box vans and utility or agricultural trailers. Provides a secure lashing point to restrain machinery, pallets, materials and equipment during transit, helping to position and tension webbing or rope effectively at the load edge or deck.
Also known as:
- Lashing Point
- Tie-Down Ring
- Bolt-On Tie Ring
- Triangular Lashing Ring
- Deck Lashing Ring
- Maypole part number MP81401B
Product Specifications
| L&S Part No. | 763 344 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Heavy-duty bolt-on lashing point for trailers and vehicles - Rated load capacity: 1 tonne (1,000 kg / 2,204 lb) - Galvanised steel plate for corrosion resistance - Forged triangular steel ring for strength and durability - 10 mm section size for a solid, wear-resistant ring |
