Description
Overview:

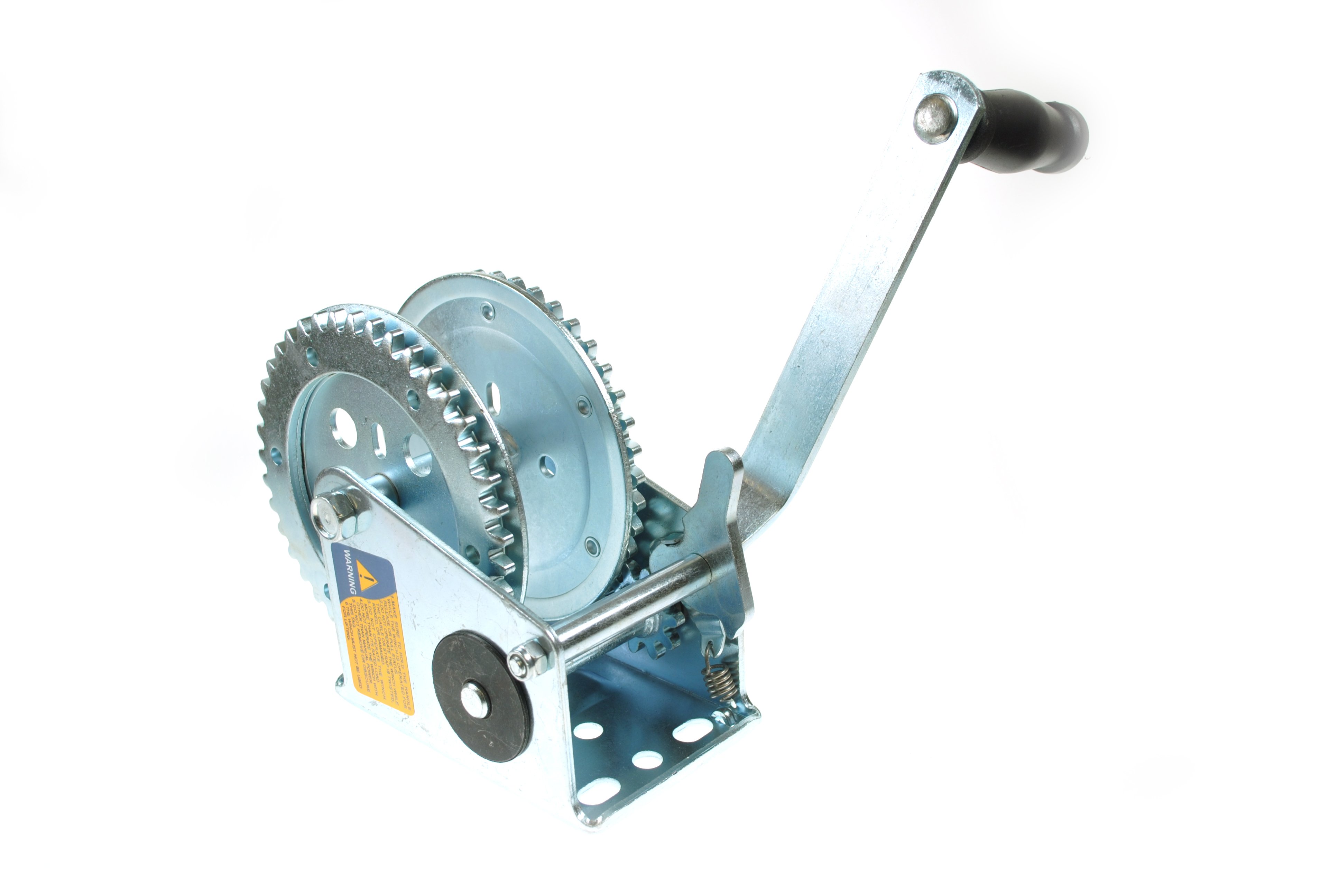

The Heavy Duty Hand Winch 900kg, Single Speed 4.3:1, Zinc Plated, No Strap (MPN 763 882) is a manual pulling winch for general trailer and transport duties. Built from robust steel with a bright zinc plated finish, it is designed for reliable operation in outdoor and yard environments. It features a positive safety ratchet and solid, dual-drive gears to provide steady control when hauling. The winch is single speed with a 4.3:1 gear ratio and is CE and UKCA approved. Rated figures are: CE working capacity 500 kg, manufacturer's recommended maximum capacity 900 kg (2000 lb), and a maximum rolling load of 1300 kg on a 30% gradient with a good surface. Operating force is 7.14 kg, with a listed mechanical advantage of 70. Supplied without strap and without brake; compatible accessories and spares are available, including a replacement handle and pawl spring.
Key Features:
- Steel construction for strength and service life
- Bright zinc plated finish for corrosion resistance
- Safety ratchet for controlled hold and release
- Solid, dual-drive gear design
- Single speed operation with 4.3:1 gear ratio
- CE rated working capacity: 500 kg
- Manufacturer's recommended max. capacity: 900 kg (2000 lb)
- Maximum rolling load: 1300 kg on a 30% gradient (good surface)
- Mechanical advantage: 70; operating force required: 7.14 kgf
- CE and UKCA approved
- Brake supplied: No
- Strap included: No
- Spares available: handle (MP79721) and pawl spring (MP79742)
Typical Applications:
Commonly fitted to trailer winch posts for loading and positioning boats, vehicles, small plant and machinery. Suitable for general pulling and load positioning on flatbed, boat and plant trailers, and for yard or workshop movement tasks. Use with a compatible winch strap or line (not supplied) matched to the required load and installation.
Also known as:
Manual Trailer Winch 900 kg
Single Speed Hand Winch 2000 lb
Zinc Plated Hand Crank Winch
Boat/Trailer Hand Winch 900 kg
Maypole part number MP7974
Product Specifications
| L&S Part No. | 763 882 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
