Description
Overview:

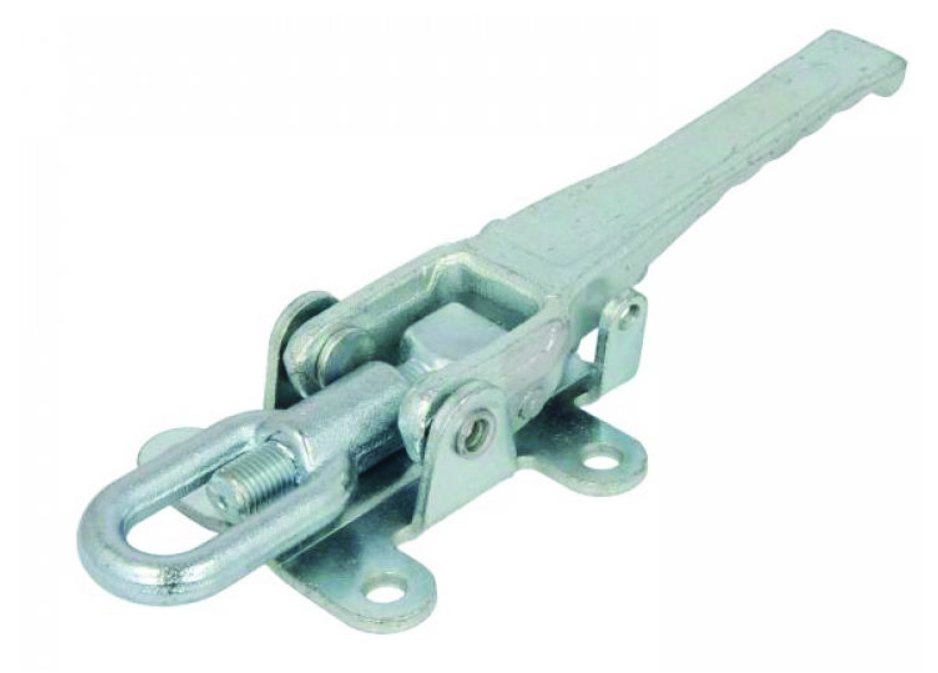

The Ifor Williams Body-to-Drawbar Over-Centre Clamp 255-285mm (MPN 763 592) is a heavy-duty latch assembly used to lock a trailer body or bed down to the drawbar for transport. It is commonly found on Ifor Williams tiltbed TB range and CT177 car transporter trailers, providing a positive over-centre action to keep the bed secure when closed. The adjustable centre distance (A dimension) allows for set-up within 255-285 mm (10.04-11.22 in) to suit the trailer's hook position, while supporting dimensions B = 88 mm (3.46 in), D = 65 mm (2.56 in), and a Ø 9 mm (0.35 in) hole match typical mounting and linkage layouts. This clamp is intended for robust service on plant, transport and towing fleets where reliable body retention is required. A compatible weld-on hook is available separately for new builds or replacements.
Key Features:
- Over-centre latch clamp to secure trailer body/bed to the drawbar
- Adjustable A dimension: 255-285 mm (10.04-11.22 in) for set-up flexibility
- B dimension: 88 mm (3.46 in) per drawing
- D dimension: 65 mm (2.56 in) per drawing
- Ø 9 mm (0.35 in) hole as shown on drawing
- Suited to heavy-duty use on tiltbeds, tippers and car transporters
- Typical fitment on Ifor Williams tiltbed TB range and CT177 car transporter trailers
- Compatible weld-on hook available separately: MP81311B
Typical Applications:
Used on the front end of tiltbed, tipper and car transporter trailers to pull the body down onto the drawbar and keep it closed during transit. Typical fitment includes Ifor Williams TB tiltbed models and the CT177 car transporter. Also suitable as a service replacement where the same dimensions are required on comparable trailers using an over-centre body-to-drawbar latch and matching hook.
Also known as:
Over-Centre Body Clamp
Body To Drawbar Clamp
Over Centre Catch
Trailer Bed Clamp
Tipper Body Clamp
Tiltbed Clamp
Maypole part number MP81306B
Product Specifications
| L&S Part No. | 763 592 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Adjustable 255-285 mm centre distance for flexible set-up - Fits Ifor Williams TB range and CT177 trailers - Ø 9 mm hole for standard mounting - Heavy-duty use on tiltbed and car transporter trailers - Compatible weld-on hook available separately |
