Description
Overview:

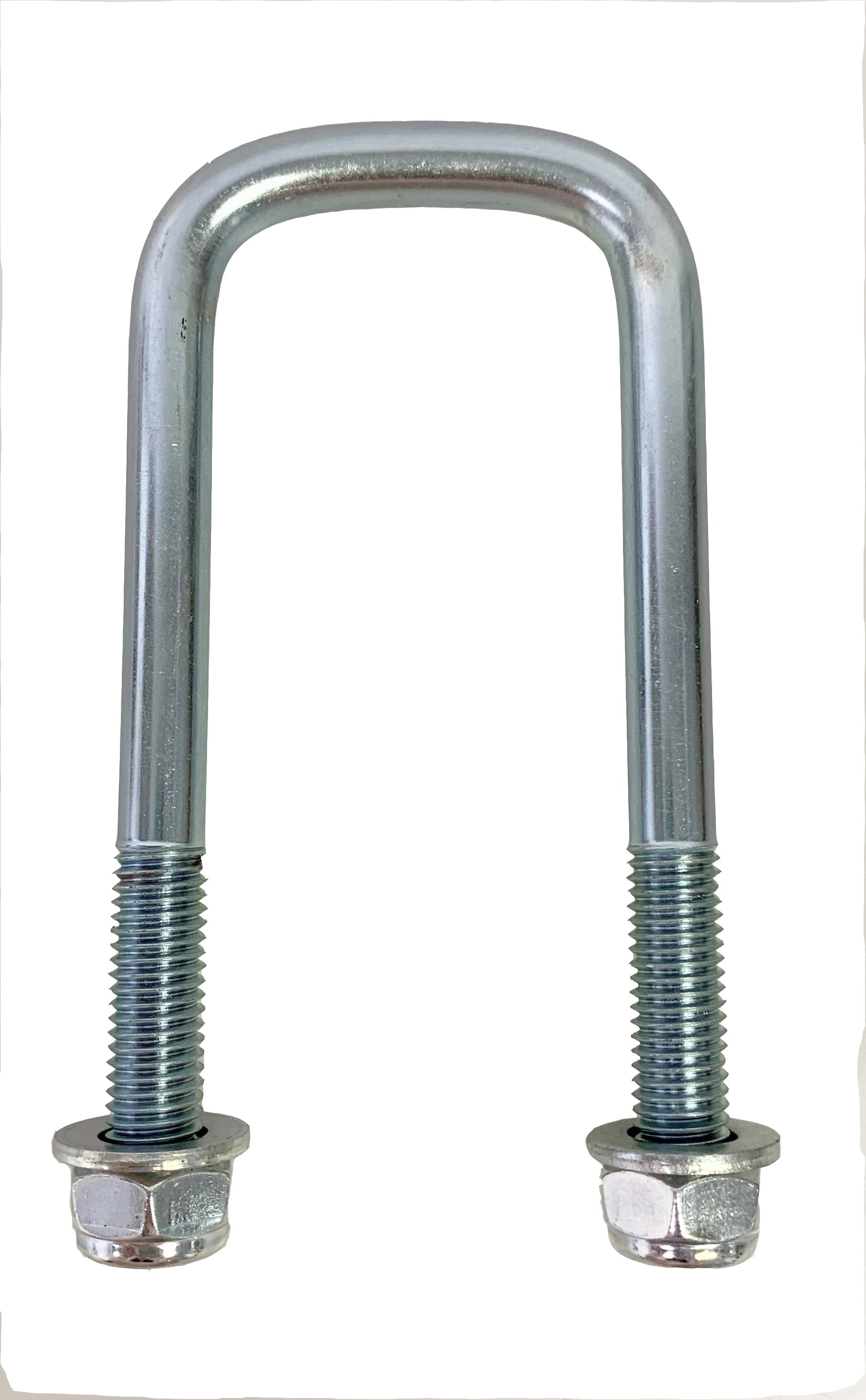

The Leaf Spring U-Bolt M12, 55mm x 80mm, with Nylocs & Washers (MPN 763 093) is a high tensile steel clamp bolt used to secure parabolic leaf springs to axle saddles and spring plates on trailers and related transport equipment. It features an internal width of 55 mm (2.17 in) to suit common parabolic spring plates and a full length of 80 mm (3.15 in), providing ample engagement through the plate. Each leg has 50 mm (1.97 in) of M12 thread for reliable clamping and adjustment during installation. Supplied complete with two M12 nyloc nuts and two plain washers to help maintain clamp load in service. Suitable for single and twin parabolic leaf spring arrangements across a range of trailer and plant transport applications. As general guidance, torque to approximately 85 Nm, subject to the specific installation, condition of components, and manufacturer recommendations.
Key Features:
- High tensile steel U-bolt for leaf spring clamping
- M12 metric thread on both legs
- Internal width: 55 mm (2.17 in)
- Overall length: 80 mm (3.15 in)
- Threaded length: 50 mm (1.97 in)
- Supplied with M12 nyloc nuts and plain washers
- Suitable for single and twin parabolic leaf springs
- Indicative tightening torque around 85 Nm, application dependent
Typical Applications:
Used to clamp parabolic leaf springs to axle saddles and spring plates on general-duty trailers, plant and equipment transporters, utility trailers and similar towing setups. Commonly fitted during suspension repairs or spring replacements where an M12 U-bolt with 55 mm internal width and 80 mm overall length is specified for single or twin parabolic spring packs.
Also known as:
Leaf spring U-bolt, Parabolic spring U-bolt, Axle U-bolt, Suspension U-bolt, M12 U-bolt 55 x 80, Spring clamp bolt, Maypole part number MP93102B
Product Specifications
| L&S Part No. | 763 093 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - High tensile steel for secure leaf spring clamping - M12 metric thread on both legs - Internal width: 55 mm (2.17 in) - Overall length: 80 mm (3.15 in) - Includes M12 nyloc nuts and plain washers |
