Description
Overview:

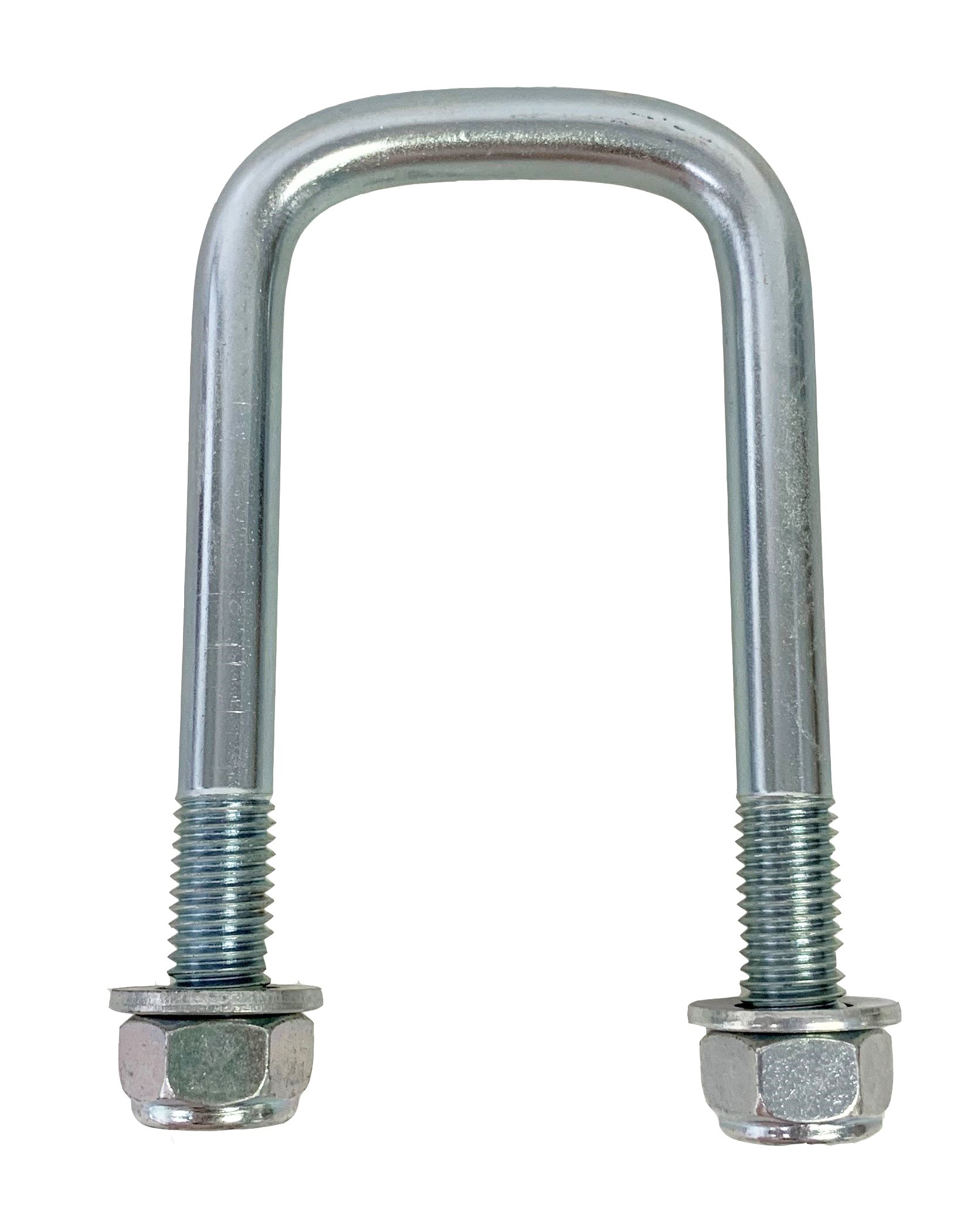

This M12 High Tensile U-Bolt 55mm ID x 110mm Length, 50mm Thread, Nyloc Nuts (MPN 763 092) is a heavy-duty fastener for clamping parabolic leaf springs to axle saddles and chassis brackets on trailers and similar equipment. Manufactured from high tensile steel to handle suspension loads, it provides a secure clamp around the spring and mating bracketry. The U-bolt has a 55 mm (2.17 in) internal width and a full length of 110 mm (4.33 in), with 50 mm (1.97 in) of threaded section on each leg to give adequate take-up for plates and spacers. It is supplied with M12 nyloc flange nuts to deliver a vibration-resistant lock without separate washers. Intended for single and twin parabolic leaf spring setups on plant trailers, general duty trailers and commercial towing applications. As a guide only, an 85 Nm (62.7 lbf.ft) torque setting is suggested, subject to the specific installation and hardware used.
Key Features:
- M12 metric U-bolt for suspension clamping applications
- High tensile steel construction for strength under load
- Internal width: 55 mm (2.17 in) for parabolic spring seats and plates
- Full length: 110 mm (4.33 in) for typical trailer axle/spring stacks
- Thread length: 50 mm (1.97 in) on each leg for secure adjustment
- Supplied with M12 nyloc flange nuts for vibration-resistant retention
- Suitable for single and twin parabolic leaf spring arrangements
- Torque guidance: 85 Nm (62.7 lbf.ft), subject to application and hardware
- Clean U-bend profile for consistent clamping across spring and plate
Typical Applications:
Used to secure parabolic leaf springs to axle saddles and clamp plates on plant trailers, goods trailers, recovery trailers and other towed equipment. Suitable for replacement during suspension overhauls or when adjusting ride height and spring packs. Applicable to both single and twin parabolic spring installations where an M12 U-bolt with 55 mm internal width and 110 mm overall length is specified.
Also known as:
Leaf Spring U-Bolt; Parabolic Spring U-Bolt; Axle Clamp U-Bolt; M12 U Bolt; U Clamp; Maypole part number MP93101B
Product Specifications
| L&S Part No. | 763 092 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - M12 U-bolt for suspension clamping applications - High tensile steel for strength under load - 55 mm internal width for parabolic spring seats - 110 mm full length for trailer axle/spring stacks - Includes M12 nyloc flange nuts for vibration resistance |
