Description
Overview:

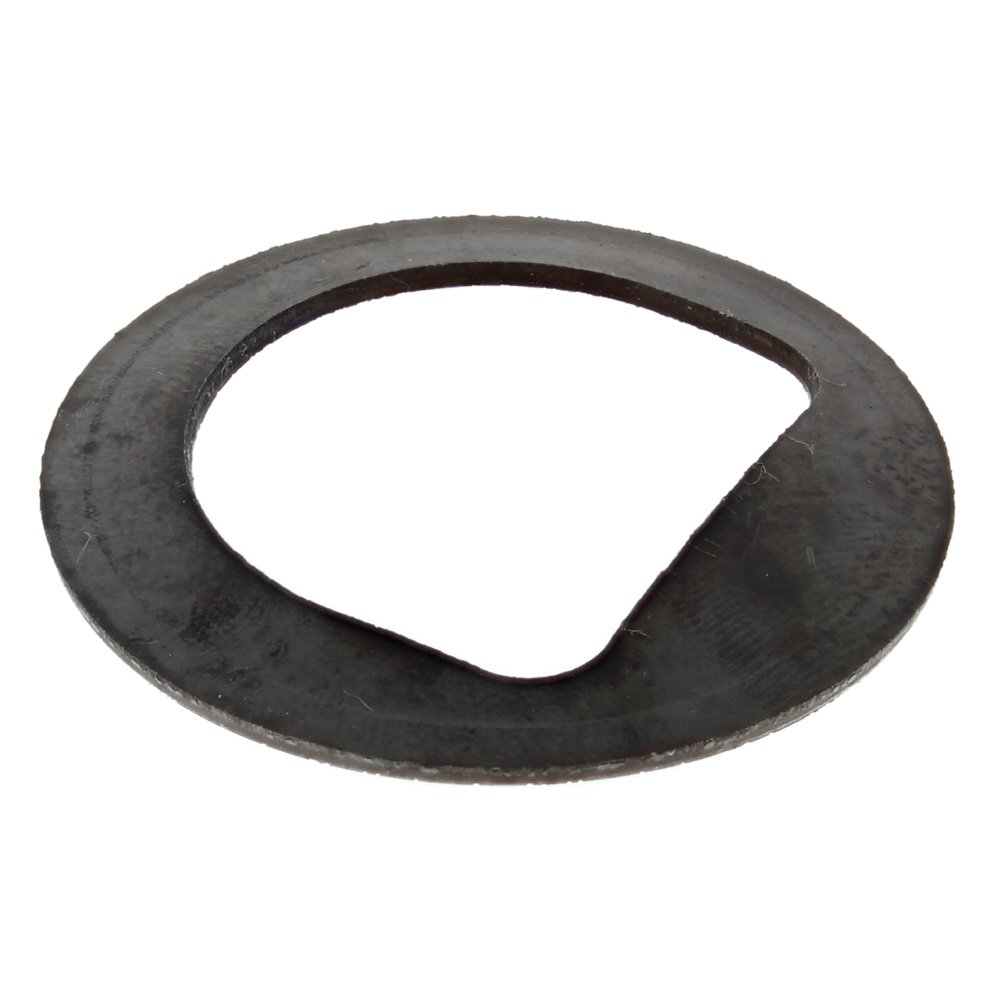

This Holder Plate is a genuine replacement part for Hitachi/Hikoki cordless rotary hammers, supplied under OEM part number 324526 and replacing older reference 322811. Made from durable metal, it provides a stable mounting and secure support for associated components within the hammer, helping to maintain correct alignment under vibration and impact loads. It is engineered for a precise fit in compatible machines such as the DH14DSL and DH18DBL, ensuring reliable fastening and consistent operation. The plate's accurately formed holes and slots allow straightforward positioning with the tool's existing fixings. Suitable for routine maintenance or repair, it helps restore performance and extend the working life of your rotary hammer without the need for modifications.
Key Features:
- Genuine Hitachi/Hikoki part for assured fit and function
- Direct OEM replacement: 324526; supersedes 322811
- Robust metal construction resists wear, vibration, and impact
- Precision-formed holes and slots for easy alignment and secure fastening
- Fits a wide range of compatible Hitachi/Hikoki rotary hammers (see list)
- Helps maintain tool performance during drilling and chiselling tasks
- Straightforward installation with standard workshop tools
- Suitable for professional site use and DIY maintenance
- Supports longevity of surrounding components by holding them firmly in place
- Reliable choice to reduce downtime during servicing
Typical Applications:
Used when refurbishing or repairing compatible Hitachi/Hikoki rotary hammers to replace a worn, bent, or missing holder plate. Common during scheduled maintenance or after heavy use on site, it restores secure component retention for consistent drilling and chiselling in masonry, concrete, blockwork, and similar materials.
Also known as:
Retaining plate, fixing plate, mounting plate, support plate, rotary hammer plate, tool holder plate, component holder plate.
Fits Models:
DH14DSL, DH18DBL, DH18DL, DH18DSL, DH22PG, DH22PH, DH24DVC, DH24PF3, DH24PG, DH24PM, DH24PX, DH25DAL, DH25DL, DH26PB, DH26PX, DH28PBY, DH28PC, DH28PD, DH28PMY, DH28PX, DH36DAL, DH36DBDL, DH36DBL, DH36DL, DH36DPA, DH36DPB
Alternate Part Numbers:
324526
Product Specifications
| L&S Part No. | HKK324526 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Hitachi/Hikoki |
| OEM No. | 324526 |
| Unit of Sale | 1 |
| Applications | DH14DSL, DH18DBL, DH18DL, DH18DSL, DH22PG, DH22PH, DH24DVC, DH24PF3, DH24PG, DH24PM, DH24PX, DH25DAL, DH25DL, DH26PB, DH26PX, DH28PBY, DH28PC, DH28PD, DH28PMY, DH28PX, DH36DAL, DH36DBDL, DH36DBL, DH36DL, DH36DPA, DH36DPB |
| Machine Type | Rotary Hammer |
| Fits Brands | Hikoki |
| Fits Models | DH14DSL | DH18DBL | DH18DSL | DH22PG | DH22PH | DH24DVC | DH24PG | DH24PX | DH25DAL | DH25DL | DH26PB | DH26PX | DH28PBY | DH28PC | DH28PD | DH28PMY | DH28PX | DH36DAL | DH36DBDL | DH36DL |
