Description
Overview:

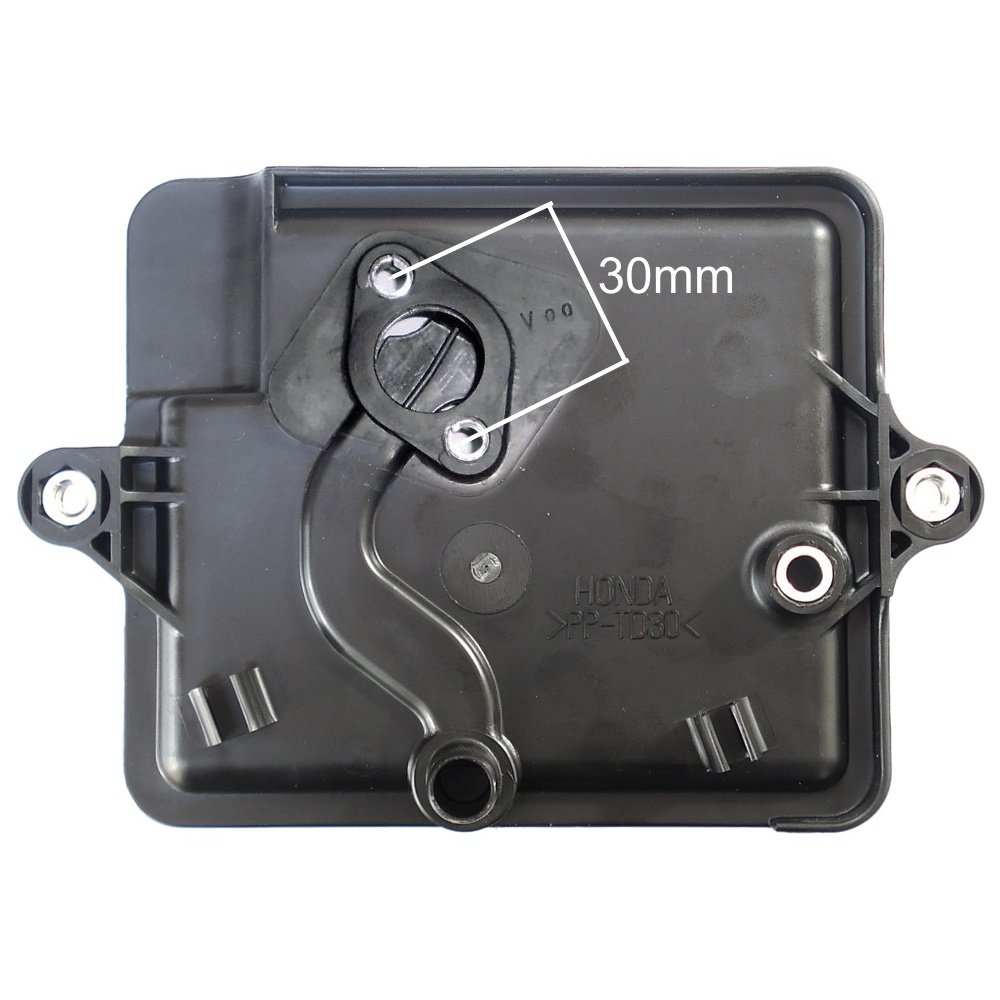

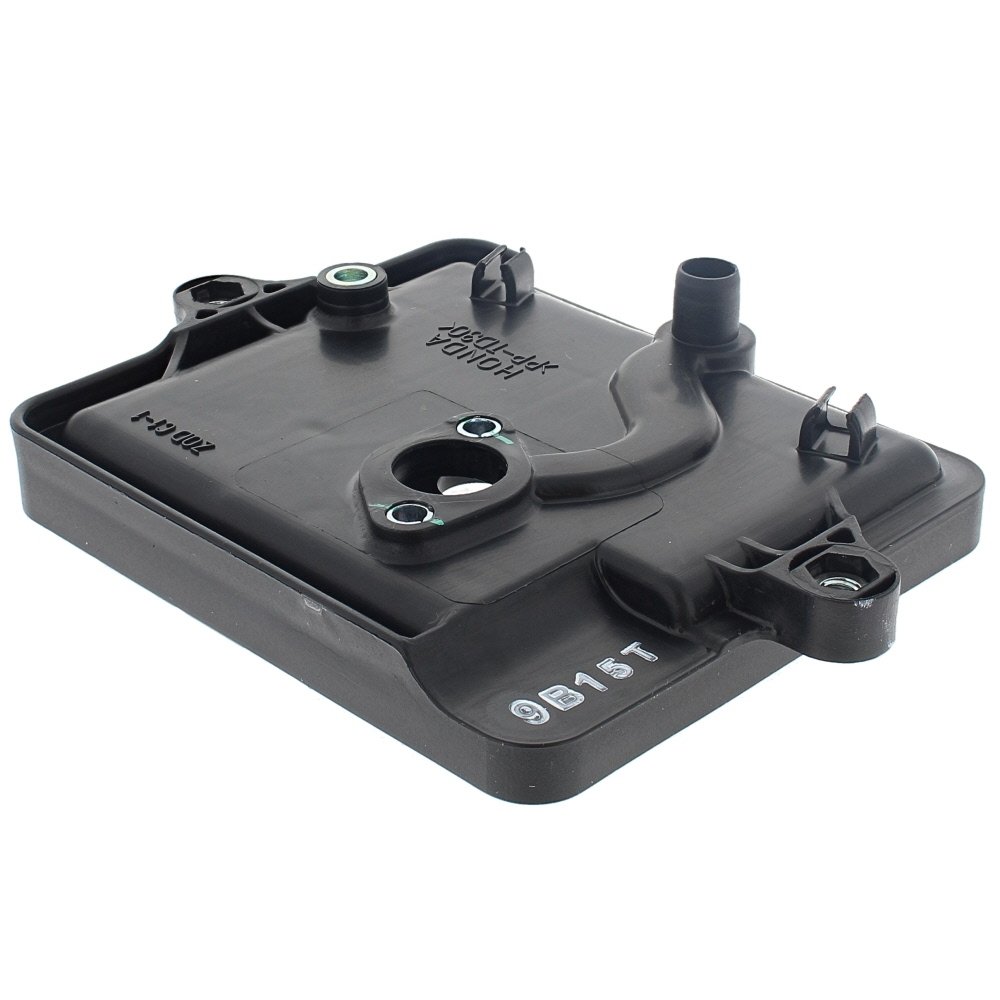

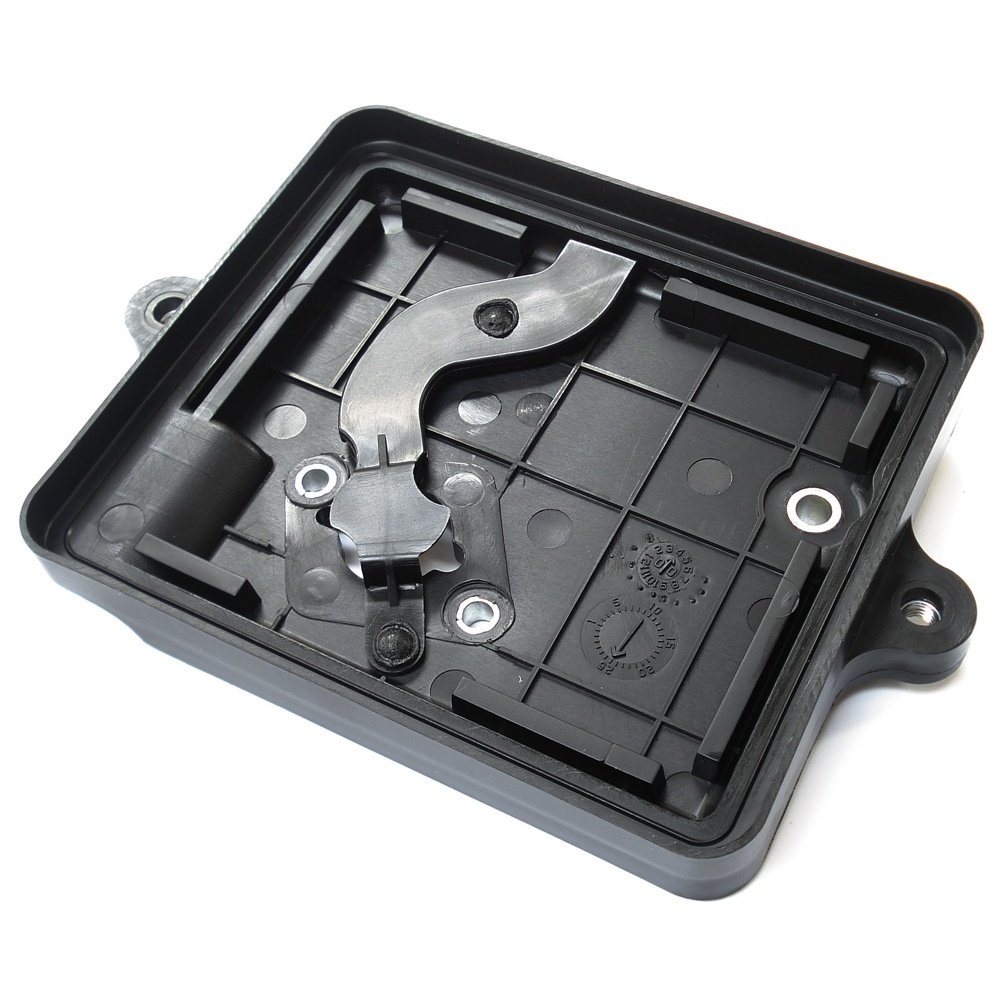

This Air Cleaner Back Box is a genuine Honda part for the GX100 small petrol engine. It is the rear housing that supports and seals the air filter assembly, guiding clean intake air to the carburettor while keeping dust and debris out of the engine. The unit is made from durable moulded plastic in a compact, rectangular form suited to tight engine bays. It is engineered for diaphragm carburettor systems with 30 mm hole centres, ensuring an accurate mating surface and secure fit. Commonly found on trench rammers and other site equipment using the Honda GX100, it helps maintain stable running and prolongs engine life by preserving correct filtration and airflow under demanding conditions.
Key Features:
- Genuine Honda OEM part for reliable fit and performance on GX100 engines
- Durable moulded plastic housing built to resist vibration, impact, and harsh site conditions
- Designed for diaphragm carburettor setups with 30 mm hole centres for precise alignment
- Helps restore correct air sealing to protect the engine from dust ingress
- Supports consistent idle and throttle response by maintaining proper airflow path
- Straightforward replacement with standard hand tools, reducing downtime
- OEM geometry maintains compatibility with original filter elements and covers
- Suitable for frequent-use applications such as trench rammers and compact plant
Typical Applications:
Used on Honda GX100-powered trench rammers, compactors, light construction machinery, and small industrial equipment. Ideal when the original air cleaner back box is cracked, warped, or worn, causing poor sealing or air leaks. Helps resolve issues such as rough running, premature filter contamination, and accelerated engine wear in dusty environments.
Also known as:
Air filter housing, air cleaner housing, air box rear case, engine air box, carburettor air box, air cleaner back plate, filter case.
Fits Models:
GX100
Alternate Part Numbers:
17220-Z0D-V00, 17220-Z0D-V02, 17220Z0DV02, 17220Z0DV00
Product Specifications
| L&S Part No. | 17220 Z0D V02 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 17220Z0DV02 |
| Unit of Sale | 1 |
| Applications | GX100 |
| Machine Type | Engines, Rammers |
| Fits Brands | Honda |
