Description
Overview:

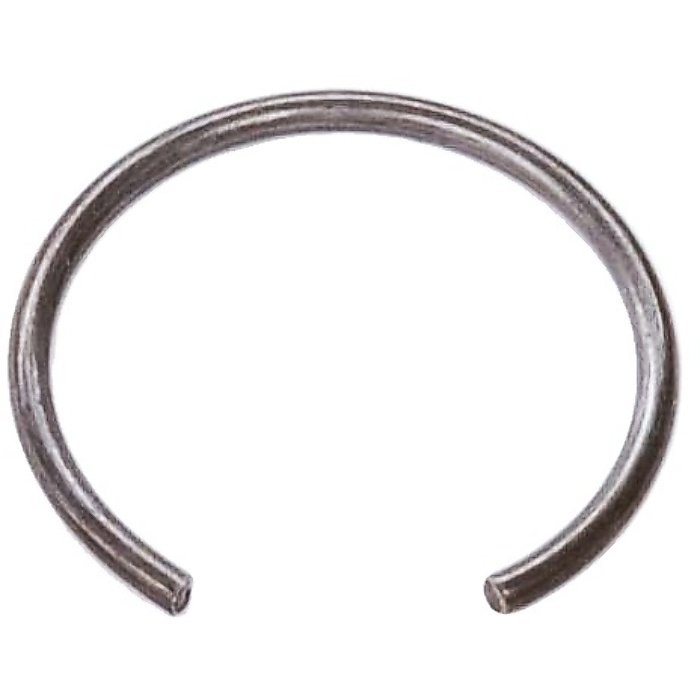

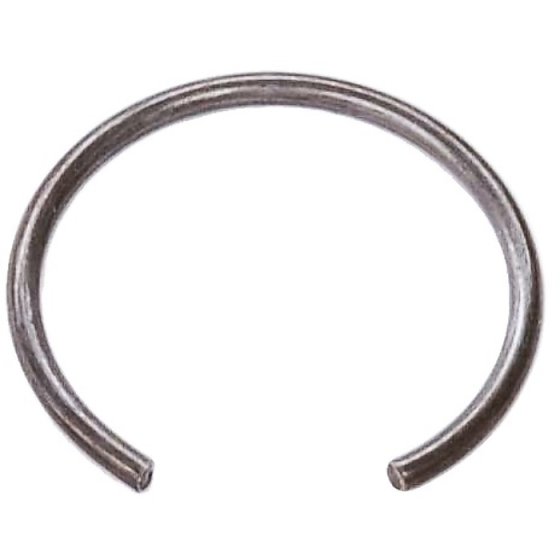

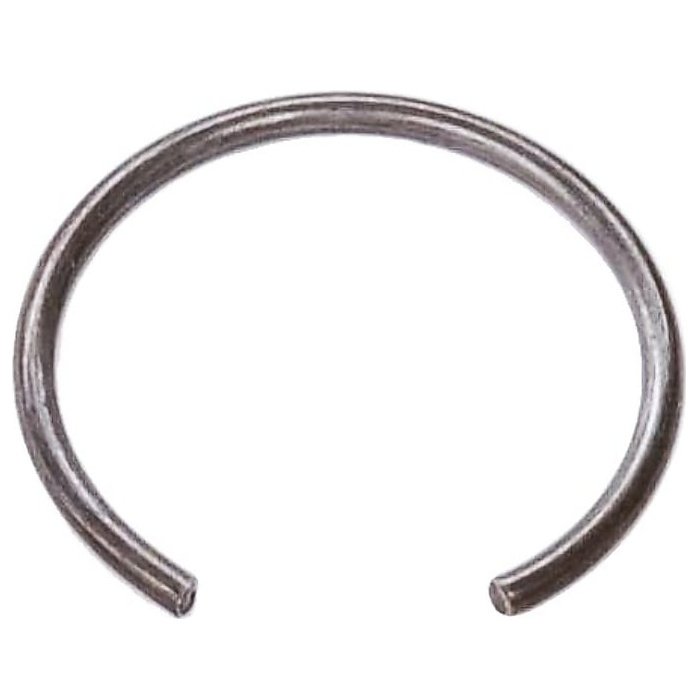

The Piston Circlip 10mm is a Genuine Honda OEM retaining clip used to secure the piston pin (gudgeon pin) inside small Honda petrol engines, such as the G100K1 and GXH50. It sits in the piston pin bore groove to prevent lateral movement of the pin during operation, helping maintain correct piston and con-rod alignment. Manufactured from spring-steel for strength and elasticity, this C-shaped clip provides a firm, reliable hold under repeated heat cycles and vibration. The clip suits 10 mm grooves (0.39 inches), matching the original Honda specification for a precise fit. It is a direct replacement part designed for easy service work during engine rebuilds or piston replacement, helping restore factory reliability without modification.
Key Features:
- Genuine Honda part (OEM) for correct fit and dependable retention
- 10 mm nominal size (0.39 inches) to suit factory piston pin groove dimensions
- Spring-steel construction for durable, elastic clamping force
- Helps prevent piston pin drift and unwanted lateral movement
- Precision-formed C-clip design for positive seating in the groove
- Suitable for routine maintenance, rebuilds, and like-for-like replacement
- Compact form factor for easy installation with standard hand tools
- Built to withstand engine heat, vibration, and repeated service intervals
Typical Applications:
Used when servicing or rebuilding Honda small engines to retain the gudgeon pin in the piston. Common during piston/ring replacement, wrist-pin inspection, or when a circlip has been removed or damaged. Suitable for engines powering compact pumps, small mowers, light construction tools, and other equipment using the listed Honda power units.
Also known as:
Piston pin clip, gudgeon pin clip, wrist pin clip, internal circlip, snap ring, retaining ring, piston retaining clip.
Fits Models:
G100, G100K1, G100K2, GXH50, GXH50U, GXH50UT, GXV50, GXV50U, GXV57, GXV57U, WX15
Alternate Part Numbers:
13115-147-000, 13115147000
Product Specifications
| L&S Part No. | 13115 147 000 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Honda |
| OEM No. | 13115147000 |
| Unit of Sale | 1 |
| Size | 10mm |
| Applications | G100, G100K1, G100K2, GXH50, GXH50U, GXH50UT, GXV50, GXV50U, GXV57, GXV57U, WX15 |
| Machine Type | Engines |
| Fits Brands | Honda |
| Fits Models | GXH50 (GCAL) | GXH50UT (GCBYT) | GXH50U (GCAFK) (Mixer Spec) | GXV50U (GJAAK) | GXV50 (GJAG) | GXV57U (GJAJK) | GXV57 (GJALM) | G100 | G100K1 | G100K2 | WX15 |
