Description
Overview:

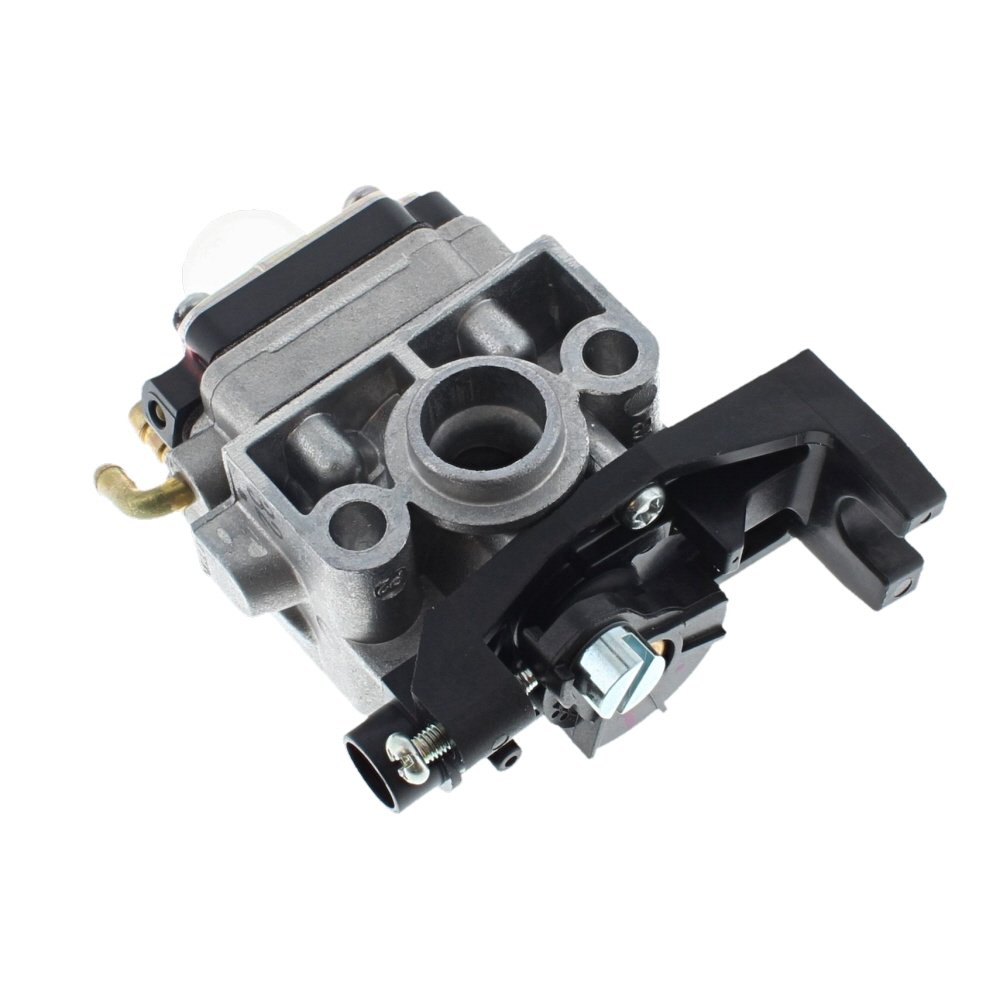

This is a complete carburettor assembly for Honda small engines, specified for the GX25 and commonly fitted to the WX10K1 portable water pump. Built with a die‐cast aluminium body and fuel‐resistant seals, it meters the air-fuel mixture so the engine starts easily, idles steadily, and delivers power under load. A compact black primer bulb and choke lever are integrated for quick priming and reliable cold starts. If your pump is hard to start, surges, or stalls, replacing a worn or contaminated carburettor often restores performance. Identified by part number 16100-Z0H-834, this unit is suited to tradespeople, landscapers, and DIY users who need a dependable fix for running issues on Honda GX25-powered equipment.
Key Features:
- Direct-fit carburettor for Honda GX25 engine as used on the WX10K1 pump
- Die-cast aluminium body with robust plating for long service life
- Integrated primer bulb for fast fuel draw and easier cold starts
- Positive on/off choke lever for simple starting control
- Calibrated fuel metering to help stabilise idle and throttle response
- Helps cure hard starting, bogging, and poor fuel economy caused by a worn carb
- Uses standard Honda gaskets, hoses, and linkage points for straightforward refit
- Designed for quick installation with basic hand tools to minimise downtime
- Part number: 16100-Z0H-834 for accurate identification and ordering
- Suitable for regular maintenance schedules on site and in the workshop
Typical Applications:
Replacement carburettor for Honda GX25 engines driving compact water pumps such as the WX10K1, used for site dewatering, garden and allotment irrigation, tank transfer, and light emergency pumping. Ideal when the original carburettor is blocked by stale fuel, damaged by debris, or beyond adjustment, restoring reliable starting and smooth running in daily use.
Also known as:
Carburettor assembly, carb, pump carburettor, GX25 carb, carb body, fuel mixer, replacement carb unit, Honda carb assembly.
Fits Models:
GX25, WX10K1
Product Specifications
| L&S Part No. | 16100 Z0H 834 |
|---|---|
| Manufacturer | Honda |
| OEM No. | 16100Z0H834 |
| Unit of Sale | 1 |
| Applications | GX25, WX10K1 |
| Machine Type | Pumps, Engines |
