Description
Overview:

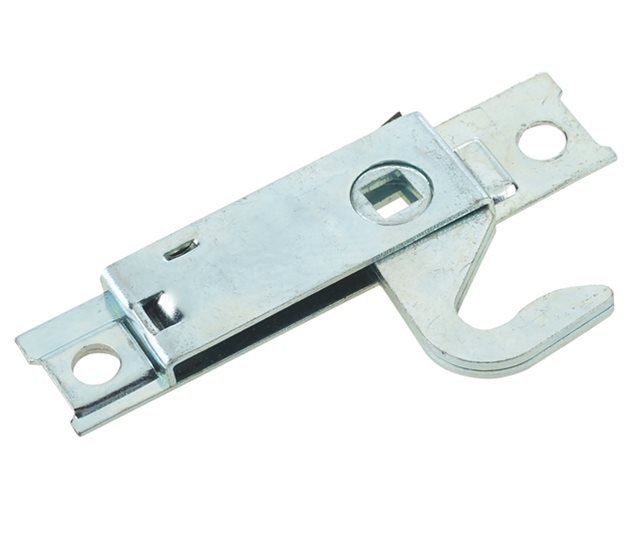

This Budget Lock, Hooked Tongue Right Hand, 112.5mm Zinc Plated (MPN 800 1287) is a right-hand budget lock for access doors, lockers and service panels on commercial vehicles and equipment. It uses a pressed mild steel casing with a clear passivated zinc plated finish for durable protection. The hooked tongue provides positive engagement on a matching catch or frame. An 8 mm (0.31 in) square drive allows operation with standard square drives used in the trade. Key dimensions include a 112.5 mm (4.43 in) case width, 25.5 mm (1.00 in) case length and 8.5 mm (0.34 in) case thickness. Fixing holes are Ø8.5 mm (0.34 in) to suit common body hardware fasteners. Suitable for straightforward latching where a compact, right-hand hooked action is required on trucks, trailers, vans, buses and general enclosures.
Key Features:
- Right-hand budget lock with hooked tongue action
- Pressed mild steel casing
- Zinc plated, clear passivated finish
- Case width: 112.5 mm (4.43 in)
- Case length: 25.5 mm (1.00 in)
- Case thickness: 8.5 mm (0.34 in)
- 8 mm (0.31 in) square drive
- Zinc plated hooked tongue
- Fixing holes: Ø8.5 mm (0.34 in)
- Suited to access doors, lockers and panels on vehicles and plant
Typical Applications:
Used on truck and trailer bodywork, vans and buses for side lockers, toolboxes, access panels and service doors. Also suitable for plant transport bodies, boiler housings and general enclosures where a simple right-hand hooked latch is required.
Also known as:
Budget latch, square drive latch, hooked tongue latch, panel latch, locker latch, utility latch
Product Specifications
| L&S Part No. | 800 1287 |
|---|---|
| Unit of Sale | 1 |
