Description
Overview:

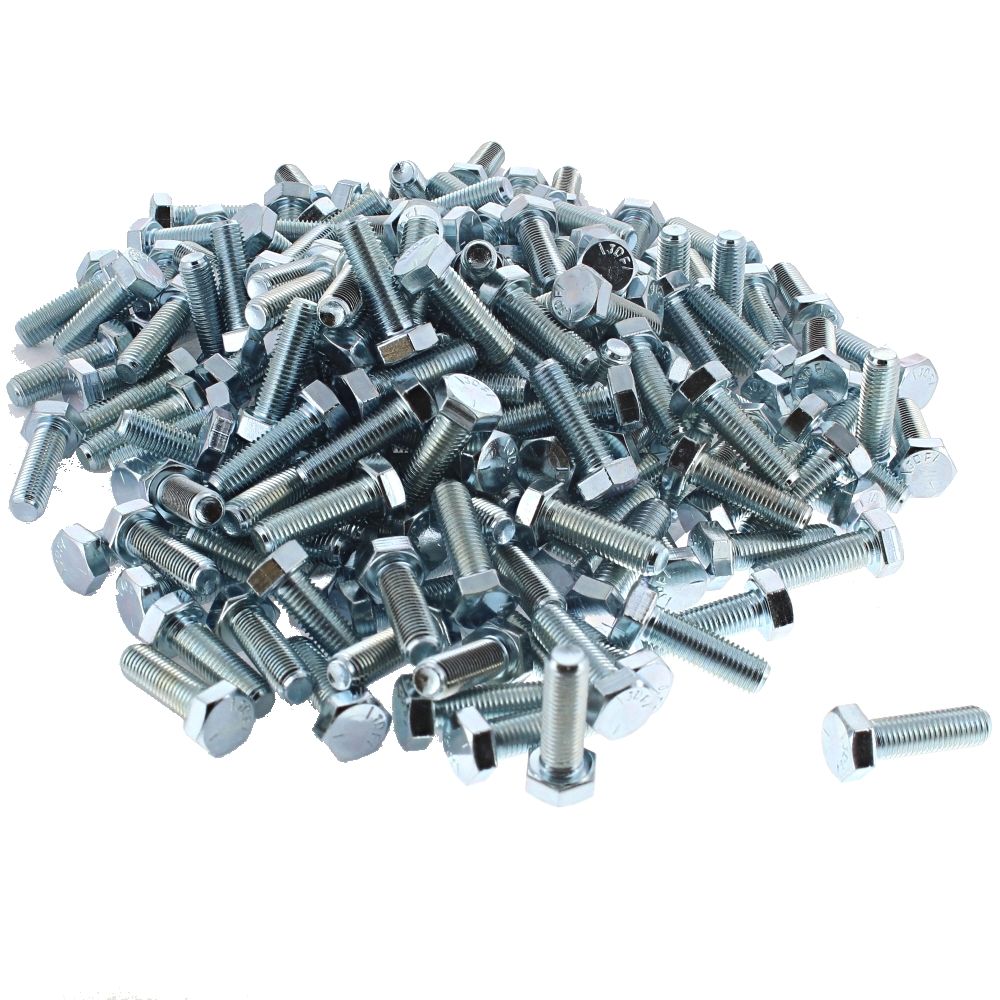

These 5/16" UNF x 1" Zinc Plated 8.8 High Tensile Setscrews are fully threaded inch-series fixings for reliable clamping across machinery, vehicles, and structures. Made from high tensile steel (property class 8.8) with a bright zinc plated finish for corrosion protection, they suit both indoor and outdoor use. The 5/16" (7.94 mm) UNF fine thread provides firm engagement and consistent torque, while the 1" (25.4 mm) length covers many common bracket, guard, and panel fixings. Supplied in a bulk pack of 200 under MPN 903 0109, these setscrews comply with ANSI B18.2.1 (1965) dimensional standards. Use them across construction plant, garden machinery, generators, pumps, compressors, trailers, and workshop fixtures where a durable, corrosion‐resistant, fully threaded UNF set screw is required. Alternate code: 9030109.
Key Features:
- 5/16" (7.94 mm) UNF diameter and 1" (25.4 mm) length, fully threaded for maximum grip along the shank
- High tensile steel, property class 8.8, for dependable clamping strength
- Bright zinc plated (BZP) coating to help resist rust in indoor and outdoor environments
- Fine UNF thread for strong joint integrity and improved resistance to loosening under vibration
- Complies with ANSI B18.2.1 (1965) dimensional requirements for inch-series screws
- Supplied in a convenient 200-pack for maintenance teams and workshop stocking
- Clean, accurate threads for easy start-up and predictable torque application
- Versatile fit for use with matching 5/16" UNF nuts and washers in steel, aluminium, and composite assemblies
- Suitable for repairs, rebuilds, and new assembly across plant, agricultural, and general engineering tasks
Typical Applications:
General fastening of brackets, guards, engine cowls, frames, and panels on construction and garden machinery. Suitable for mounting accessories on generators, pumps, compressors, compactors, and trailers. Useful for workshop jigs and fixtures, bodywork and chassis fastening, and equipment maintenance where a fully threaded 5/16" UNF set screw of 1" (25.4 mm) length is specified.
Also known as:
UNF set bolts, hex cap screws, fully threaded bolts, hexagon sets, BZP UNF set bolts, fine-thread bolts, inch-series set bolts.
Alternate Part Numbers:
9030109
Product Specifications
| L&S Part No. | 903 0109 |
|---|---|
| Unit of Sale | Pack of 200 |
| Size | 5/16 UNF x 1" |
| Key Features | - 5/16" (7.94 mm) UNF diameter, 1" (25.4 mm) length - High tensile steel, property class 8.8 - Bright zinc plated for corrosion resistance - Complies with ANSI B18.2.1 (1965) standards - Supplied in bulk pack of 200 setscrews |
