Description
Overview:

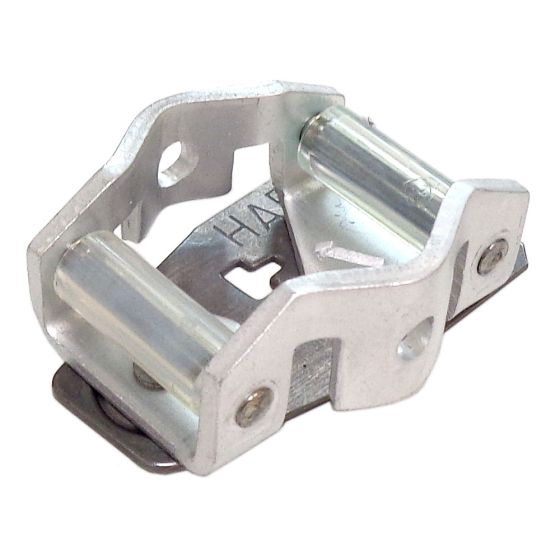

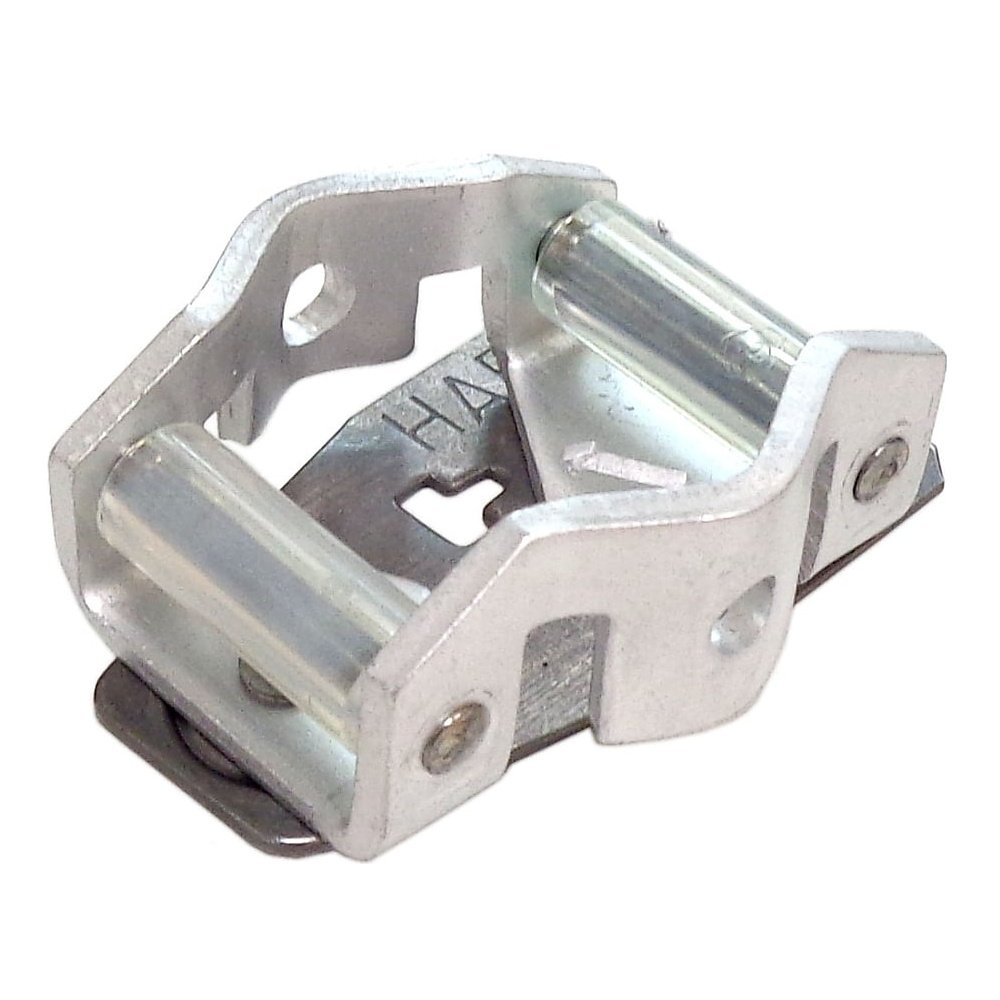

The Husqvarna Combination Filing Gauge H25 .325" 1.5mm (MPN 505698109) is a genuine OEM tool for accurate sharpening of .325" pitch chains (8.25 mm) used on chainsaws. Built around a robust metal gauge plate with a hard-wearing handle, it sets the correct top-plate filing angle and checks depth (raker) height in one simple operation. Designed for Husqvarna H25 chain spec with 1.5 mm drive link gauge, it helps keep your saw cutting cleanly, reducing strain on the motor and extending chain life. Suitable for workshop benches or on-site maintenance, it supports consistent results for professional forestry, arborist work, and domestic users alike. Genuine Husqvarna quality ensures dependable accuracy and long service life.
Key Features:
- Genuine Husqvarna OEM part for reliability and correct specification
- Calibrated for .325" (8.25 mm) pitch chains to maintain proper filing angles
- Suits 1.5 mm chain gauge for H25 chain setups
- Guides both top-plate sharpening and depth (raker) setting for even cutting
- Durable metal gauge with a sturdy, easy-grip handle for control
- Compact, lightweight design for tool bag or field kit
- Aids faster, repeatable sharpening with reduced guesswork
- Helps improve cutting efficiency and prolong chain and bar life
- Clear markings for straightforward use by trade or DIY users
Typical Applications:
Routine sharpening and raker adjustment of .325" chains on chainsaws used for felling, snedding, logging, firewood processing, landscaping, and garden maintenance. Ideal for site work, workshop servicing, and regular upkeep to maintain straight, efficient cuts and reduce kickback risk from uneven or blunt chains.
Also known as:
Depth gauge tool, raker gauge, combination file guide, top-plate angle guide, chain set-up gauge, combi sharpening guide for .325" chains.
Alternate Part Numbers:
505 69 81-09, 505688109, 505698109
Product Specifications
| L&S Part No. | 505 69 81 09 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Husqvarna |
| OEM No. | 505698109 |
| Unit of Sale | 1 |
| Machine Type | Chainsaws |
| Fits Brands | Husqvarna |
| Key Features | - Genuine Husqvarna OEM part for .325" pitch chains - Calibrated for 1.5 mm chain gauge - Guides top-plate sharpening and raker setting - Durable metal gauge with easy-grip handle - Compact design for portability and field use |
