Description
Overview:

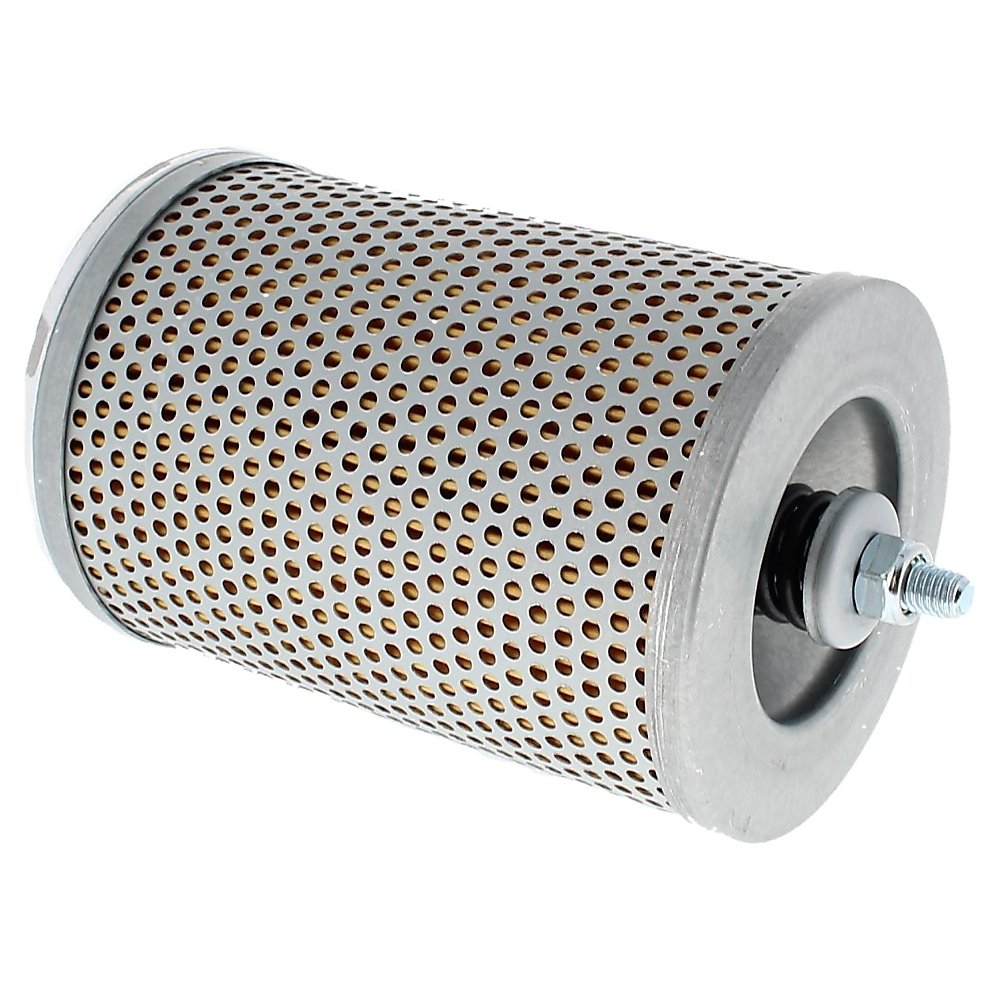

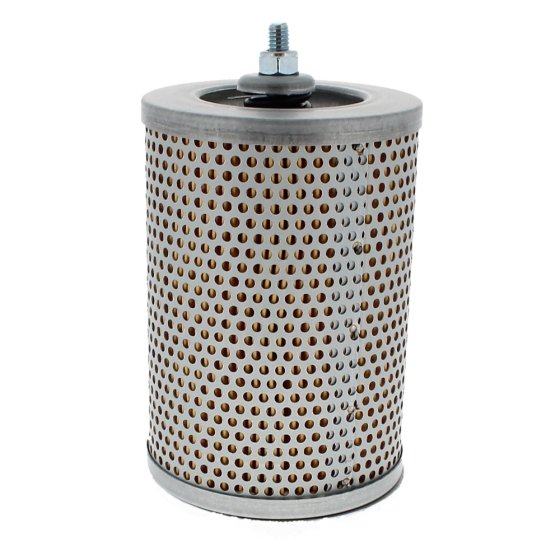

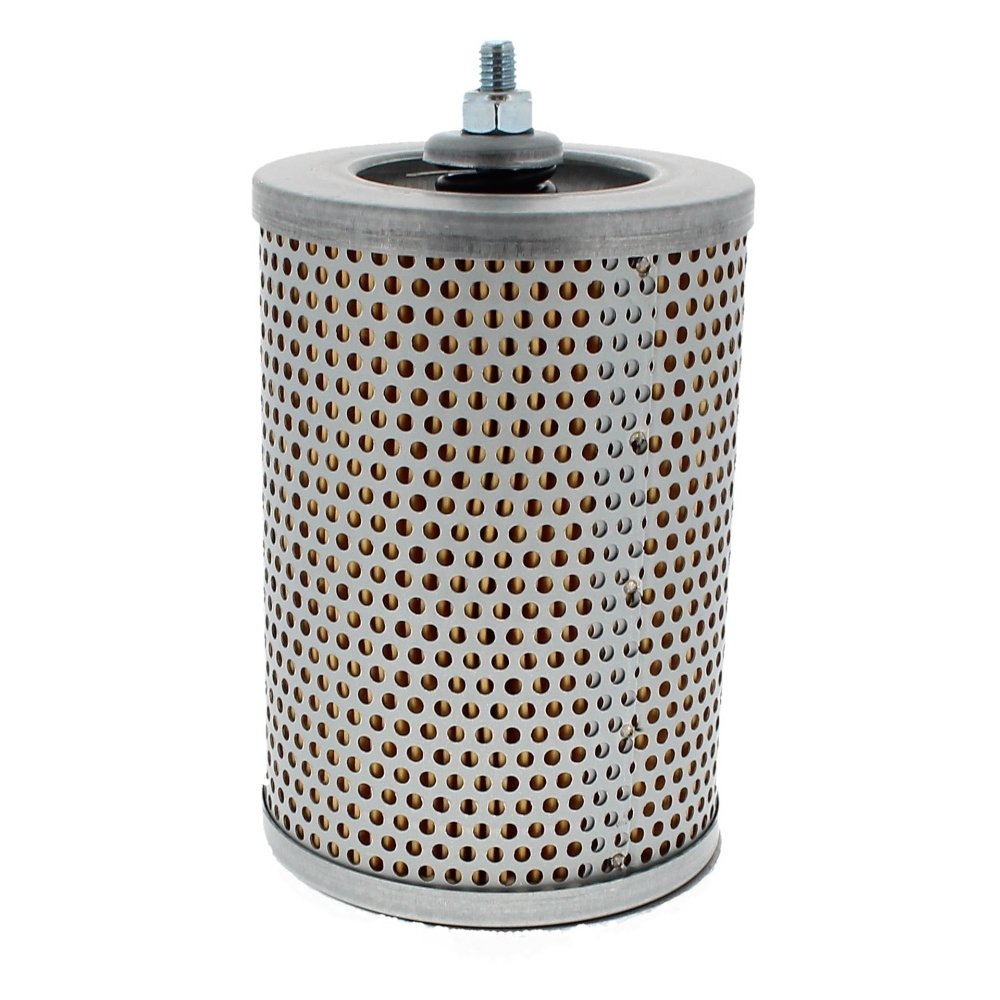

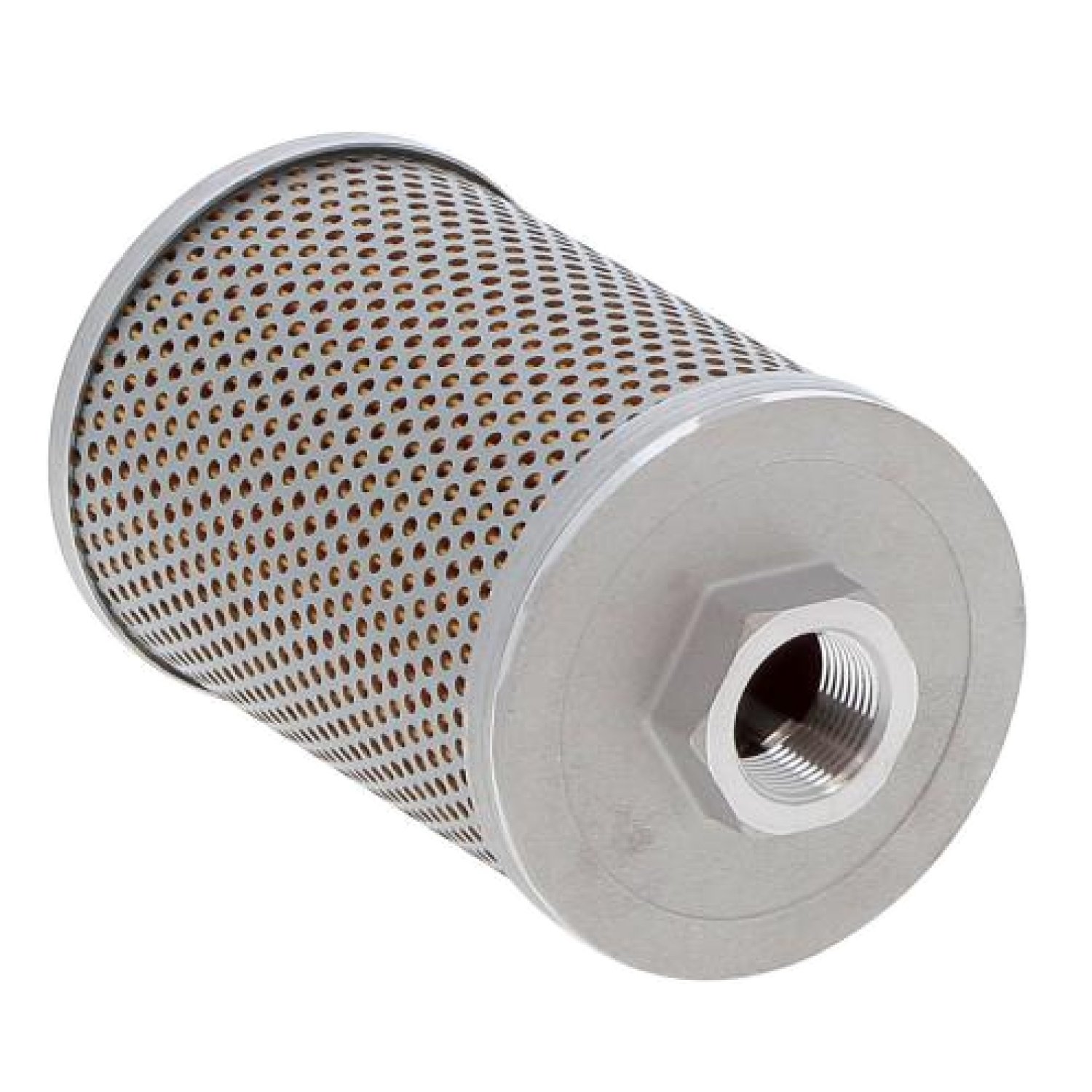

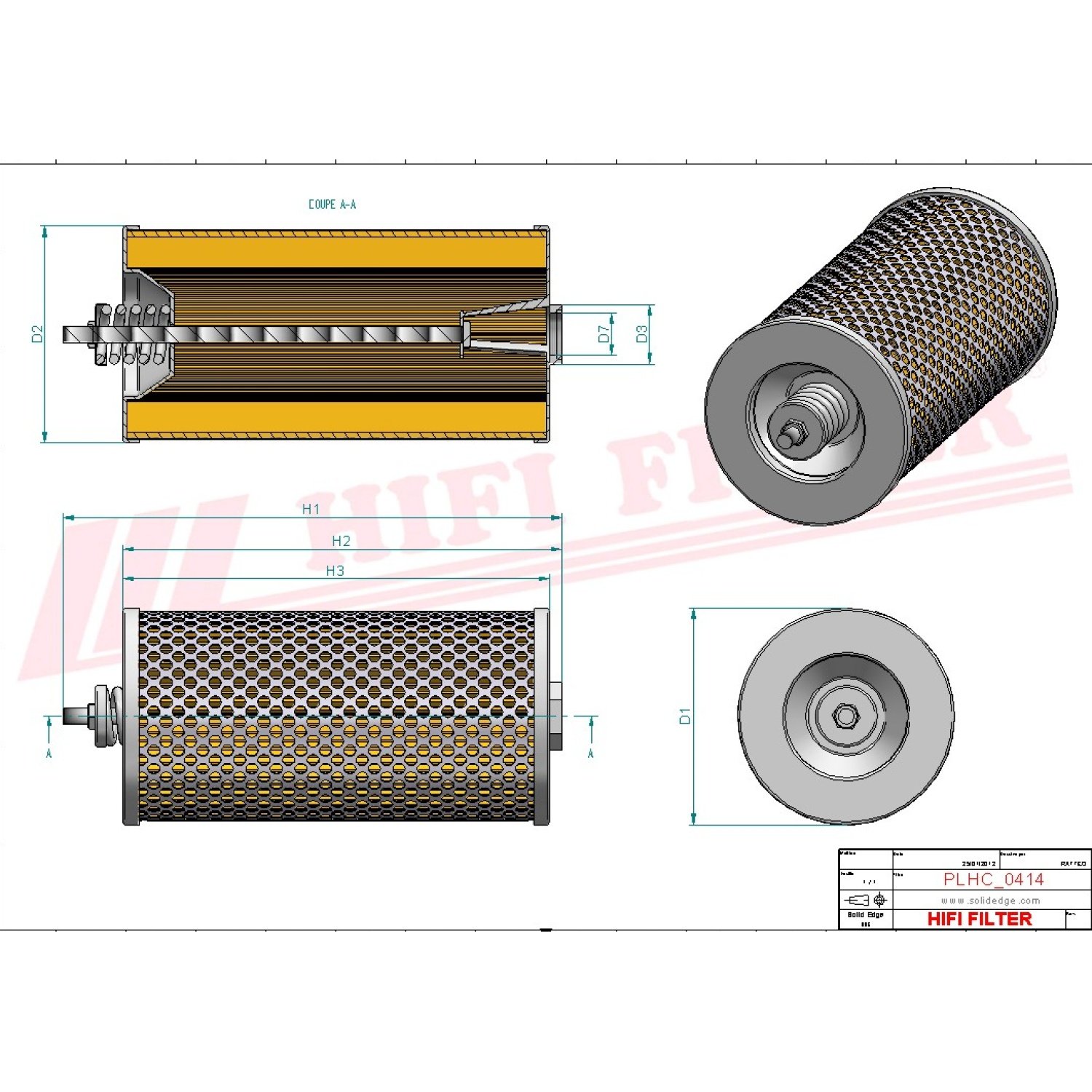

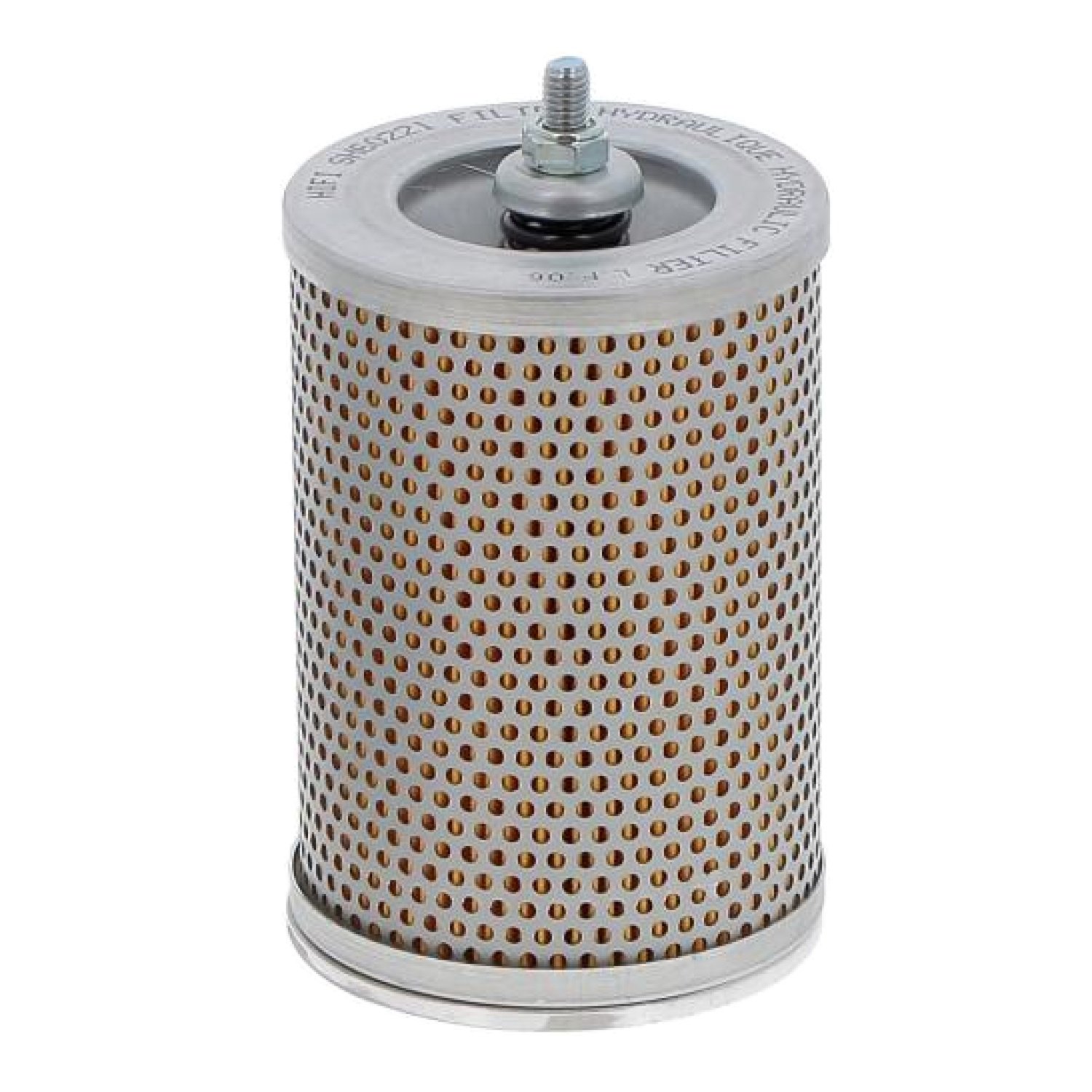

This hydraulic return filter is a non-genuine replacement for Kubota mini excavators, engineered to protect the hydraulic system by removing fine contaminants from the return oil. Designed to replace part number RA011-62190, it is suitable for models such as Kubota K008-3 and U10-3. Built with durable construction and quality filtration media, it supports consistent oil flow while helping to reduce wear on pumps, valves, and cylinders. The element measures 198 mm in length with a 96 mm outer diameter and a 20 mm inner diameter, making it a close match to the original specifications for reliable fit and performance. It is a practical choice for regular maintenance to keep compact excavators working smoothly in demanding conditions.
Key Features:
- Non Genuine Part: cost-effective replacement for Kubota RA011-62190
- Supports clean hydraulic oil to protect pumps, spools, and actuators
- Robust build with stable filtration media for dependable service life
- Dimensions: 198 mm length, 96 mm OD, 20 mm ID for a secure, accurate fit
- Helps maintain consistent machine responsiveness and smooth operation
- Suitable for return-line use on compact and mini excavators
- Straightforward like-for-like swap during routine servicing
- Aids in reducing unplanned downtime and premature component wear
Typical Applications:
Used on the hydraulic return line of mini excavators to capture wear particles and debris before oil re-enters the reservoir. Ideal for routine servicing, scheduled preventative maintenance, and post-repair system clean-up on compact machines working in landscaping, utilities, groundworks, and tight-site construction.
Also known as:
Hydraulic return line filter, hydraulic oil return filter element, excavator hydraulic filter, return filter cartridge, return-line element, hydraulic cleaner element, hydraulic reservoir return element.
Fits Models:
K008, K008 Alfa, K008-3, K0083, K008Alfa, KX008-3, KX0083, U10, U10-3, U103, U15-3, U15-4, U153, U154, U17-3, U173, UB10-3, UB103, K008 3, K008 5, U15, U17, K0085, K008ALFA
Alternate Part Numbers:
RA011-6219-0, RA011.62190, RA011.62193, RA01162190, 1000149180, 2001-10-22, RA01162193, HY 90271, SH 60221, 20011022, HY90271, D501564, SH60221, H2024, H8902
Product Specifications
| L&S Part No. | LH90271 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Applications | K008, K008 Alfa, K008-3, K0083, K008Alfa, KX008-3, KX0083, U10, U10-3, U103, U15-3, U15-4, U153, U154, U17-3, U173, UB10-3, UB103, K008 3, K008 5, U15, U17, K0085, K008ALFA |
| Machine Type | Excavators |
| Fits Brands | Kubota |
| Fits Models | K008 | K008-3 | U10 | U15-3 | U17-3 | U10-3 |
