Description
Overview:

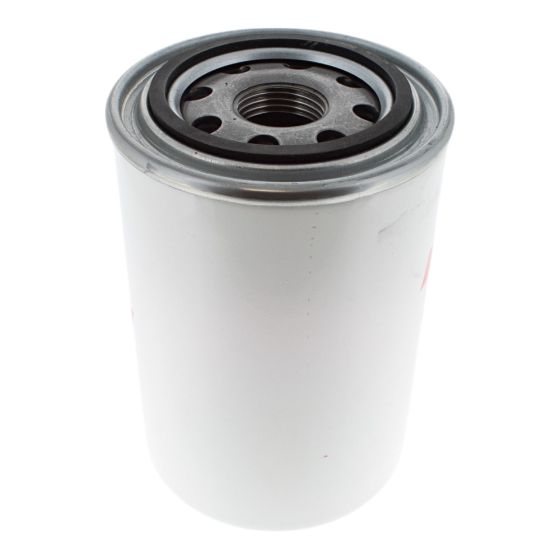

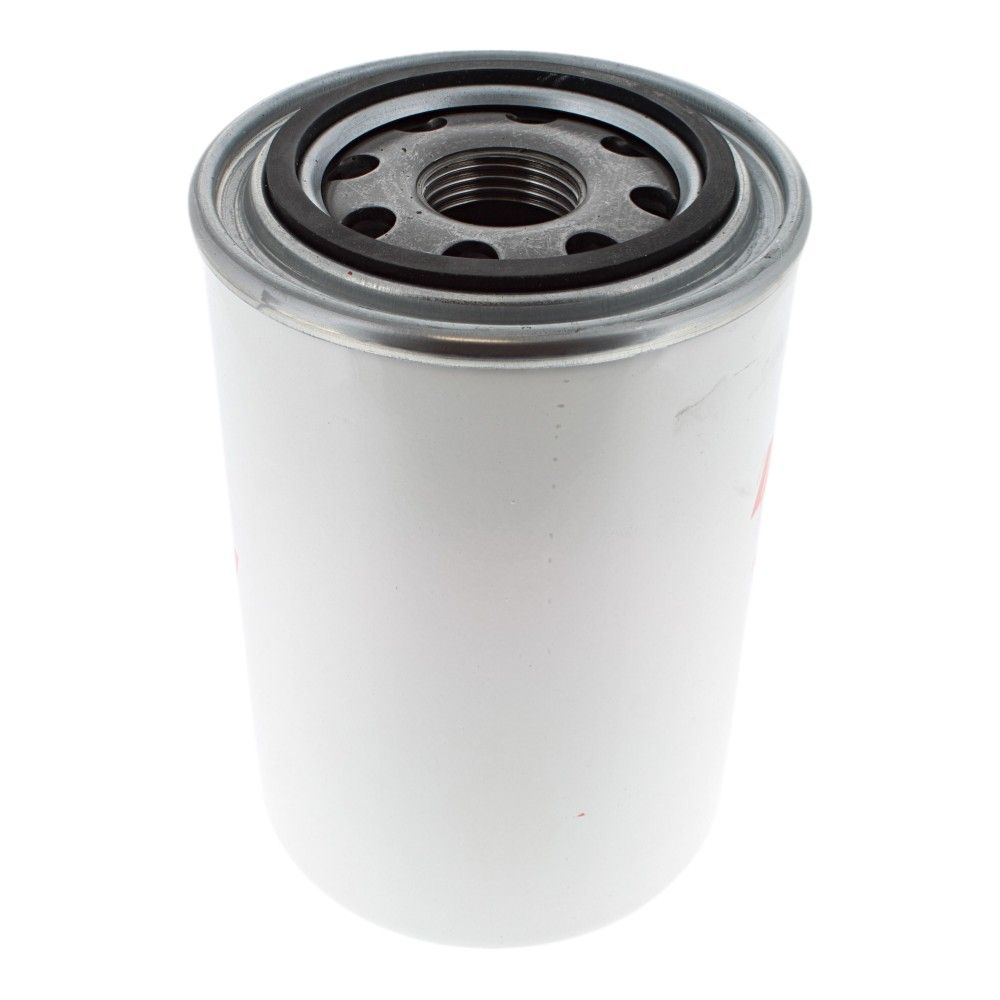

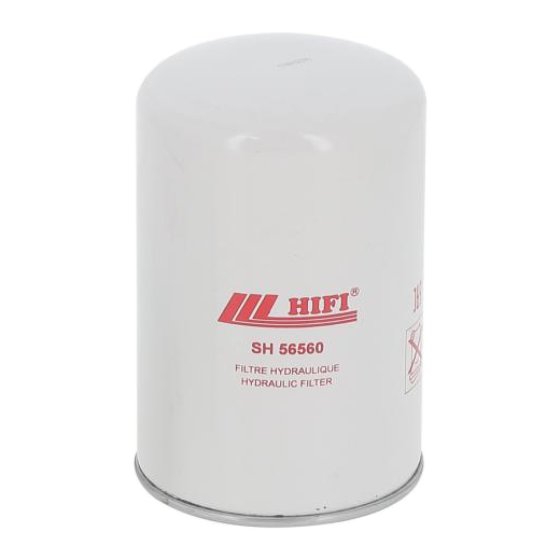

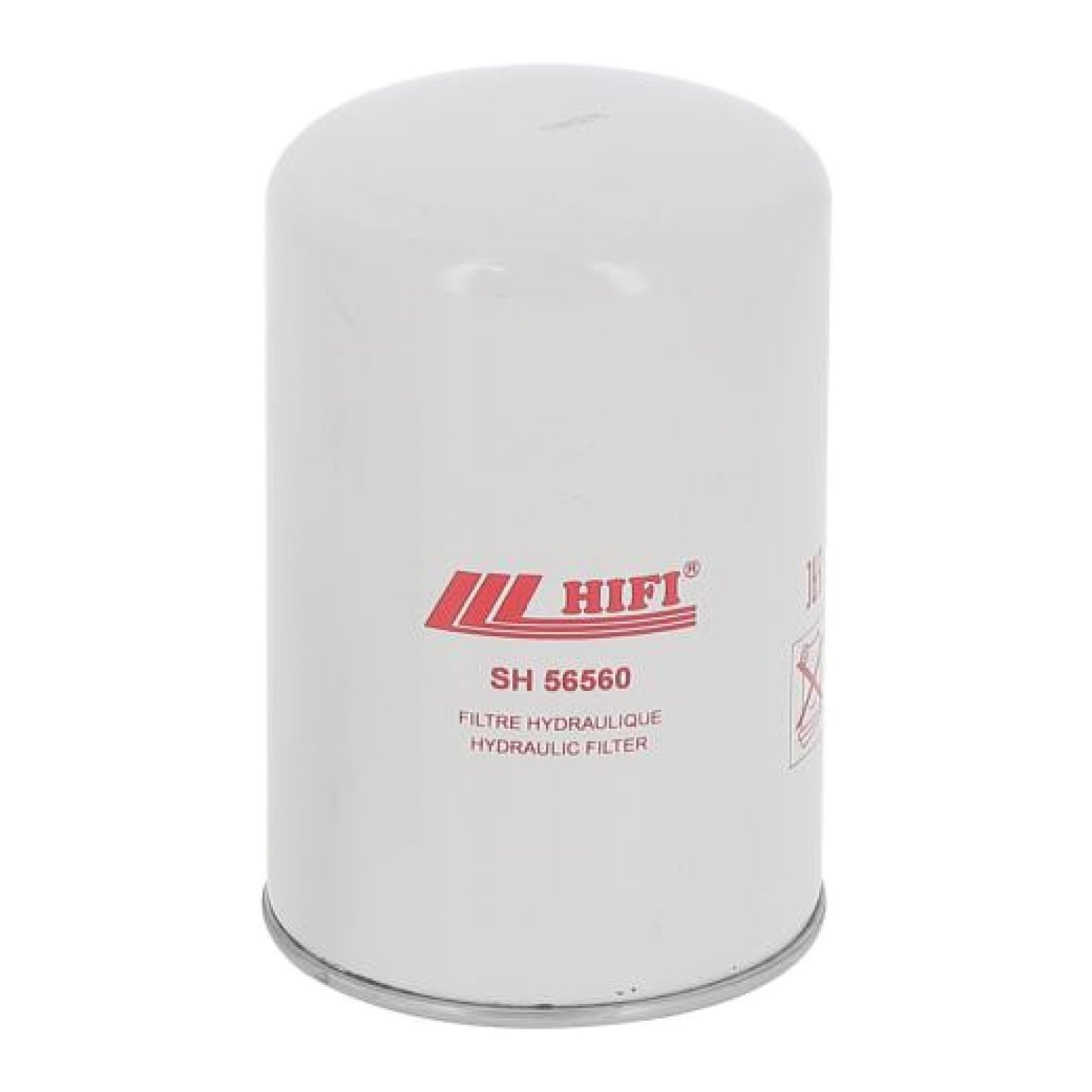

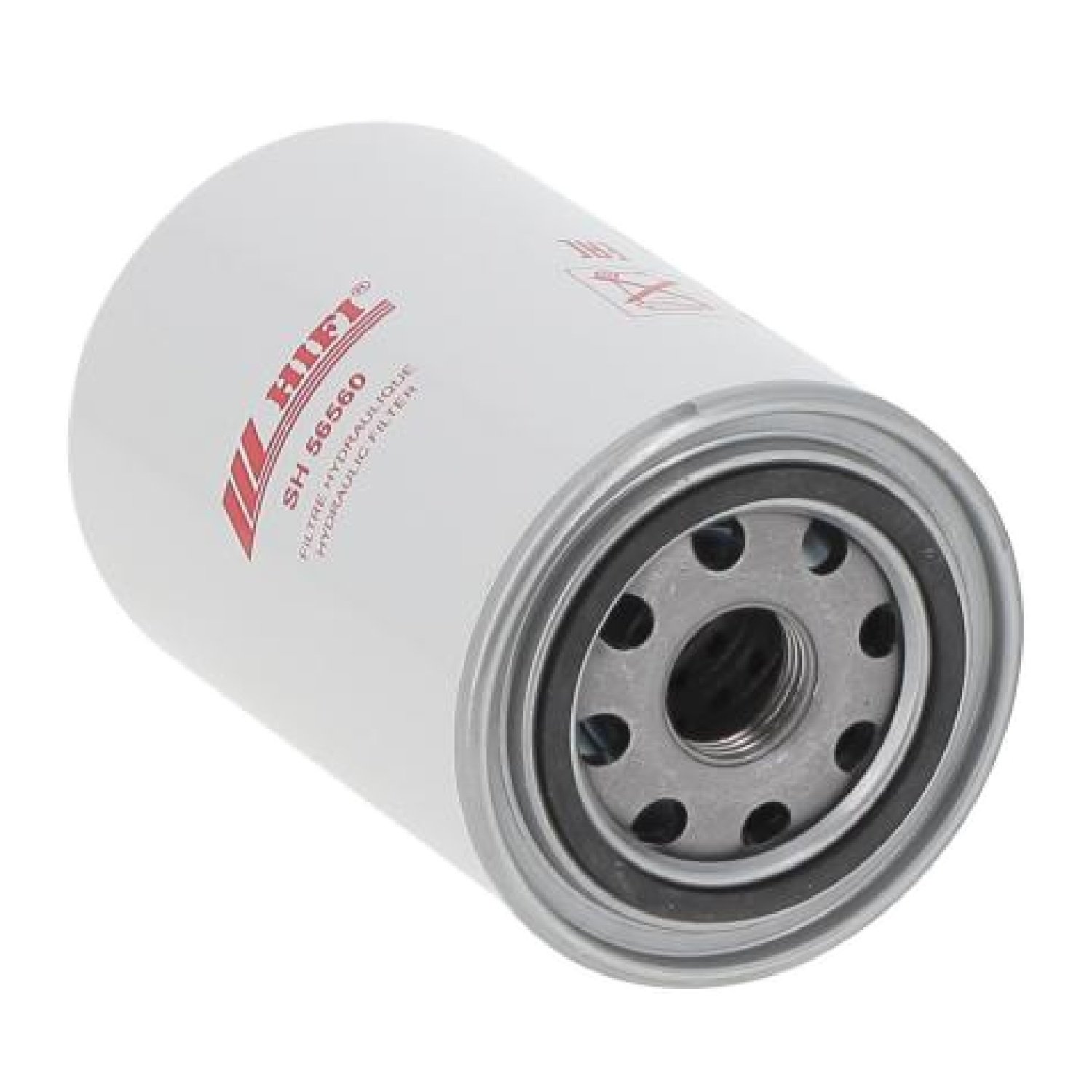

The hydraulic filter (OEM 80MU010P) is a Genuine OEM part for the Ammann Duomat DR 66 roller with a Hatz engine. This component is crucial for filtering hydraulic fluid, which assists in maintaining the efficient operation of hydraulic systems within the roller. It is situated within the hydraulic circuit to prevent contaminants from circulating the system, crucial for model Duomat DR 66.
Key Features:
- Genuine OEM hydraulic filter
- Compatible with Ammann Duomat DR 66 and DR 77 models
- Incorporates part number 80MU010P
- Designed specifically for systems with Hatz engines
- Protects hydraulic components by filtering out contaminants
Typical Applications:
Used mainly in Ammann rollers equipped with hydraulic systems to filter fluid. Essential for the maintenance and smooth operation of hydraulic functions within construction machinery.
Also known as:
Hydraulic oil filter, hydraulic fluid filter, hydraulic system filter.
Fits Models:
Duomat DR 66, Duomat DR 77, DUOMATDR66, DUOMATDR77
Alternate Part Numbers:
H 3706-10M192, PER 20 MIC 10, CA 151 ACD 1, 0080 MU 010P, 621-5556-002, 3760.0071.58, 6060.0077.77, BS092S10N25, DL-00003061, MFE 80-10/2, 101 FL 1174, 1033356 M 1, 12183-82301, 36400801001, H370610M192, 92199910 C, 1200505109, 3700733592, WHY 316448, S 023031 P, 829528 C 1, 5200016307, DL00003061, 0080MU010P
Product Specifications
| L&S Part No. | LH5129 |
|---|---|
| Part Type | Non Genuine Part |
| Unit of Sale | 1 |
| Fits Brands | Ammann |
| Key Features | - Genuine OEM hydraulic filter for Ammann Duomat DR 66 Roller - Designed for use with Hatz engine models - Compatible with Duomat DR 66 and DR 77 rollers - Multiple OEM numbers for cross-reference options - Filter ensures optimal performance and longevity |

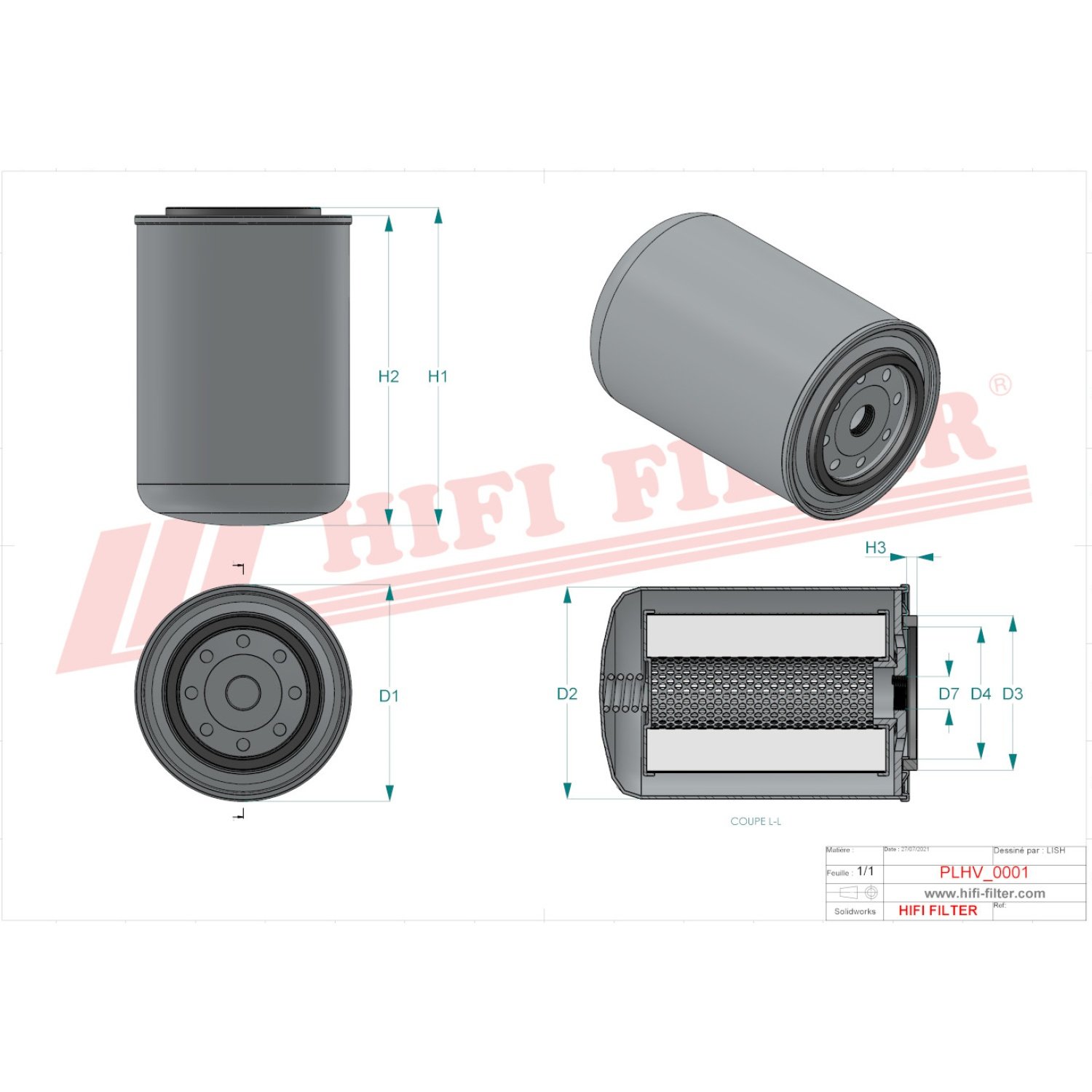

| Filter Specifications | D1: 94mm D2: 93mm D3: 71mm H1: 146mm H2: 144mm H3: 7mm Thread: 1"-12UNF |
