Description
Overview:

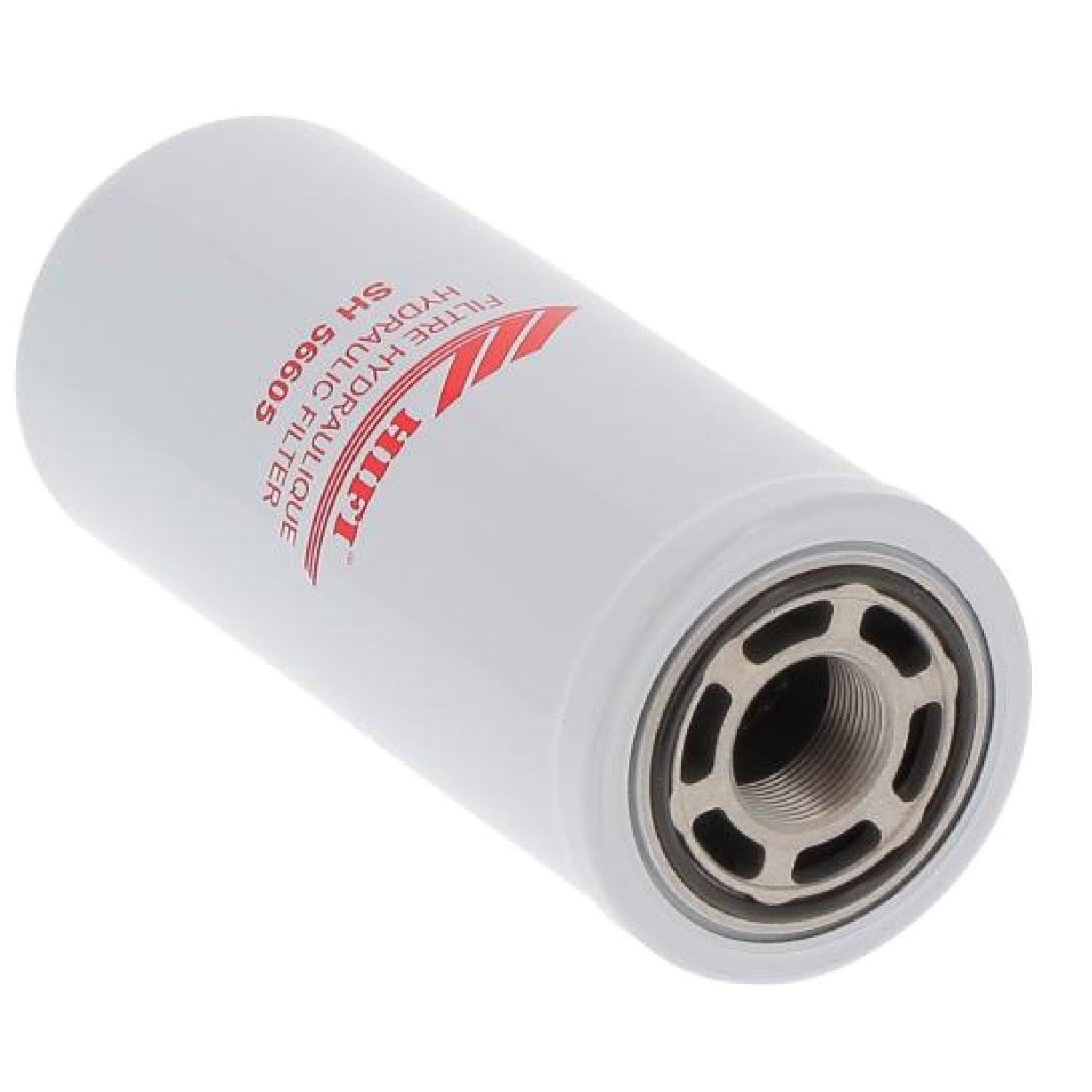

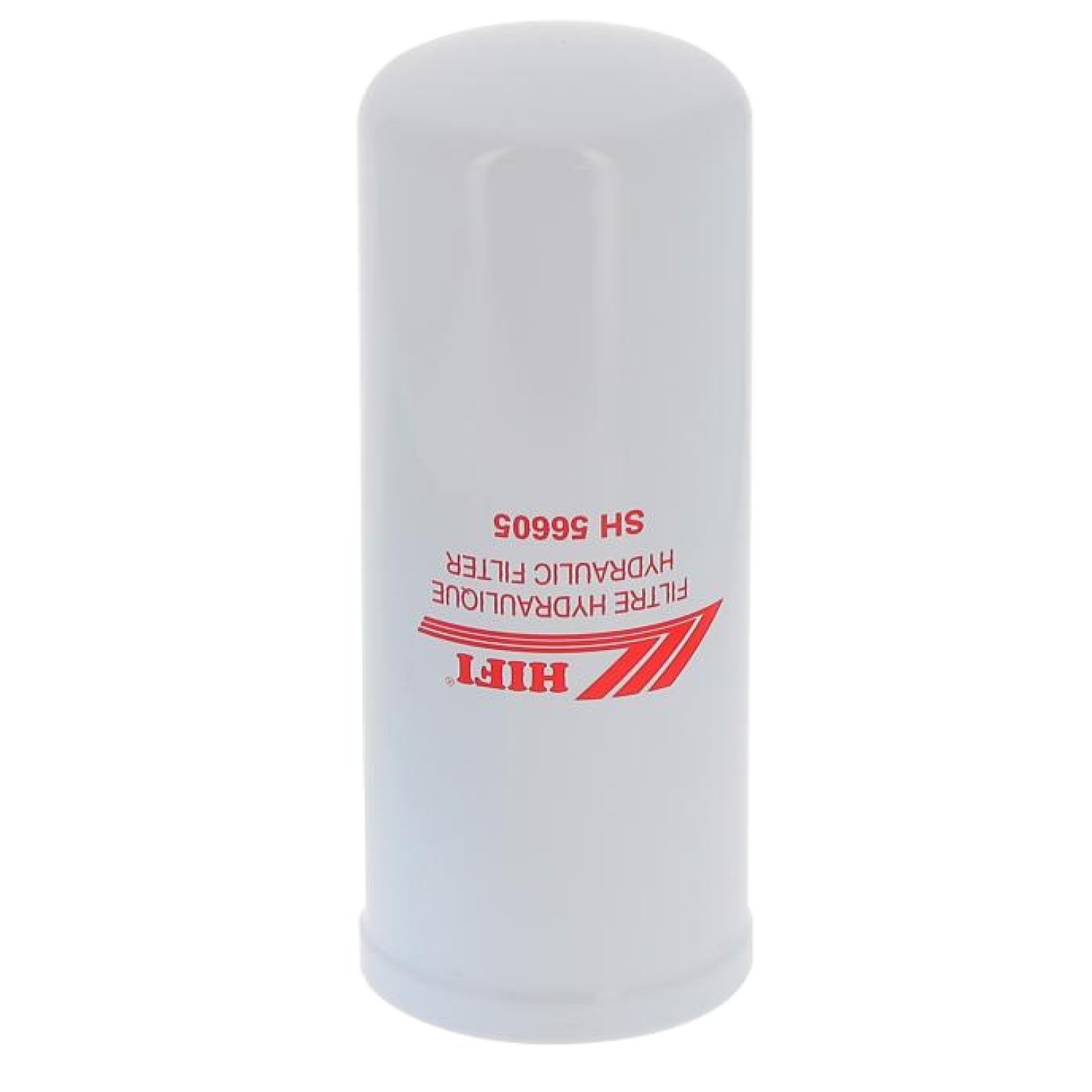

The Hydraulic Filter H1634 is a Genuine OEM part, crucial for maintaining hydraulic system integrity by filtering out contaminants. Its primary function is to ensure filtered hydraulic fluid flows within heavy machinery for optimal performance. It is compatible with ATLAS COPCO DrillAir models and CASE construction equipment, offering a broad application range in construction and agricultural machinery.
Key Features:
- Genuine OEM part
- Ensures contaminant-free hydraulic fluid
- Direct fitment on a variety of models
- Reference OEM numbers: SH 56605, SH56605
- Wide model compatibility including CASE and NEW HOLLAND
Typical Applications:
Used in machinery where hydraulic systems require clean fluid circulation to power and control various mechanical functions. Common in construction and agricultural equipment.
Also known as:
Hydraulic oil filter, hydraulic fluid filter
Fits Models:
ATLAS COPCO DrillAir V 28, XRXS 1240 CD7, XRXS 1275 CD 7, XRXS 1300 CD7, XRXS 1350 CD7, XRXS 566 CD, XRXS 567 CD, XRXS 607 CD, XRYS 577
BELARUS MTZ 2022, MTZ 2522 DW, MTZ 3022 DW
BITELLI BB 630 B
CASE 360, 445 CT, 450 C, 550, 580 M, 721, 821, 8910, 9270, 9310, CT 440 SERIE 3
CATERPILLAR 515, 525, 924 F, 928 F, 950 G, IT 18 F
DEPOORTERE ECAPSULEUSE DOUBLE
Product Specifications
| L&S Part No. | H1634 |
|---|---|
| Unit of Sale | 1 |
| Fits Brands | ATLAS COPCO, BELARUS, BITELLI, CASE, CATERPILLAR, DEPOORTERE, DEUTZ, EPIROC, EVRARD-HARDI, FERMEC, FIAT, FIAT HITACHI, FIAT KOBELCO, GEHL, IHIMER, JCB, JOHN DEERE, KAWASAKI, KERSHAW, KOMATSU FOREST, LAUPRETRE, LAVERDA, LOGSET, MARKES, MASSEY FERGUSON, MOROOKA, NEW HOLLAND, NORCAR-LOGSET, PEL JOB, SAKAI, STALOWA WOLA, STEYR, TEREX, TIMBERJACK, TREEMME, VOLVO |
| Key Features | - Genuine OEM part ensures compatibility and reliability. - Fits multiple models, including Atlas Copco, Belarus, and Case. - Alternate part numbers available: SH 56605, SH56605. - Compatible with various machine types like excavators and tractors. - Designed for multiple brands, including Caterpillar and John Deere. |

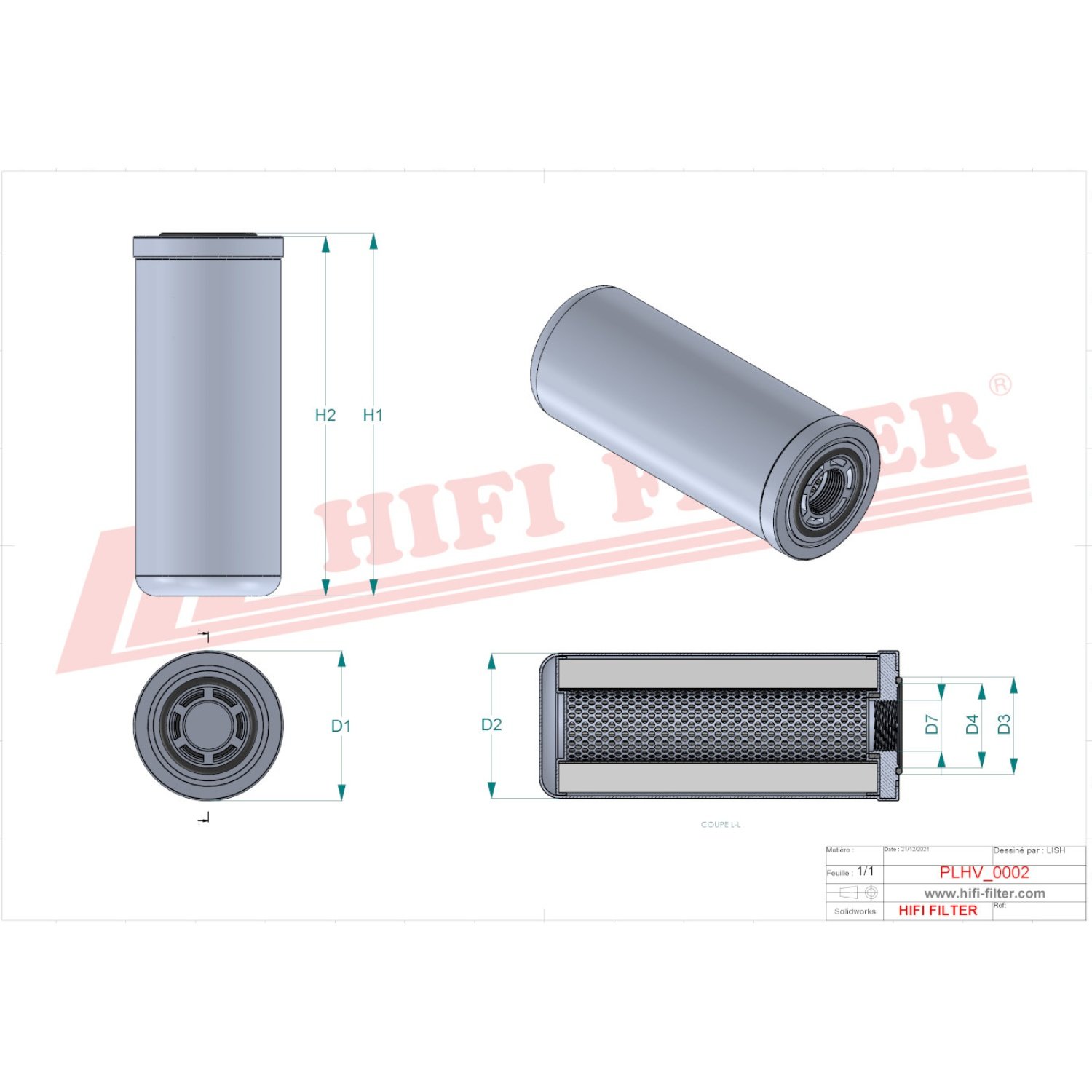

| Filter Specifications | D1: 97.5mm D2: 95mm D3: 70mm H1: 242mm H2: 240mm Thread: 1"3/8-12UNF |
